Husqvarna T525 Chain Saw

Model: T525

Back To Assemblies

Save Part Not Listed?
product name

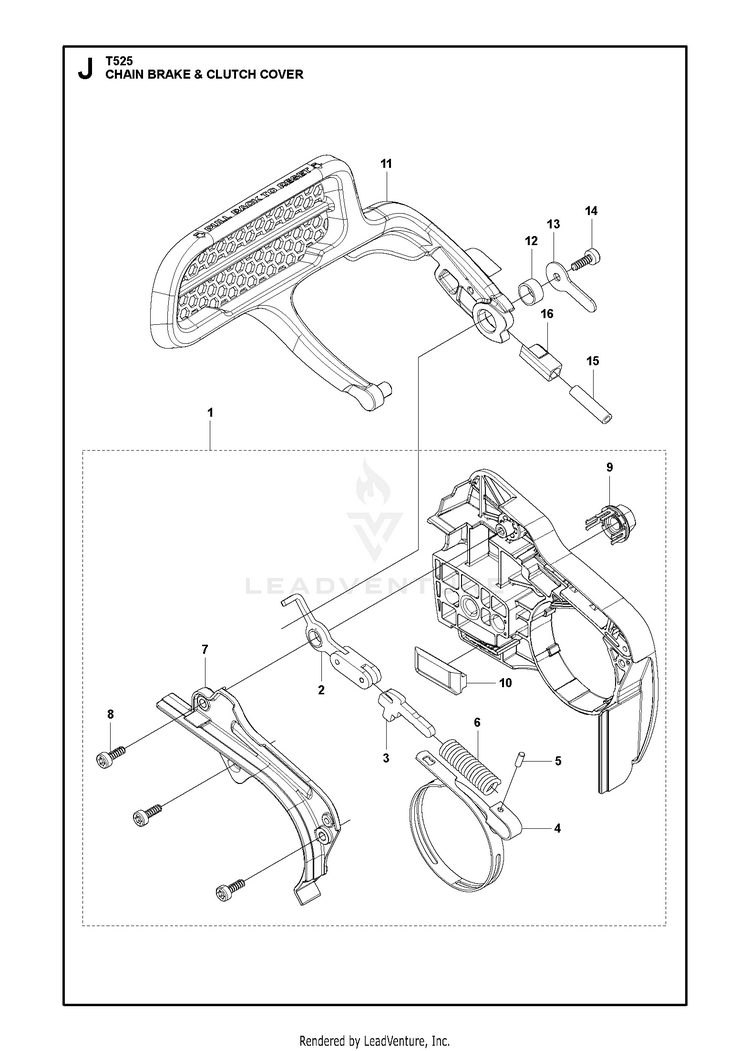

CHAIN BRAKE & CLUTCH COVER

...
...
15
SPRING HUS-576984501
...
7
COVER LID ORANGE HUS-587877501
...
6
BRAKE SPRING HUS-589569901
...
8
SCREW HUS-576984001
...
4
BRAKE BAND HUS-587877301
...
13
WASHER HUS-587873001
...
3
ARM, SLIDE(RPLS 267054410) HUS-574005401
...
14
SCREW HUS-576984001
...
5
RP_PIN HUS-574013101
...
9
NUT RETAINER ASSY HUS-505197301
...
16
CATCH HUS-576984601
...
1
CHAIN BRAKE ASSY HUS-587876601
...
11
HAND GUARD GRAY HUS-587872701
...
10
GUIDE HUS-513619001
...
2
KNEE JOINT ASSY HUS-587876901
...
12
SPACER L=6.25 HUS-587872902
