Husqvarna T525 Chain Saw

Model: T525

Back To Assemblies

Save Part Not Listed?
product name

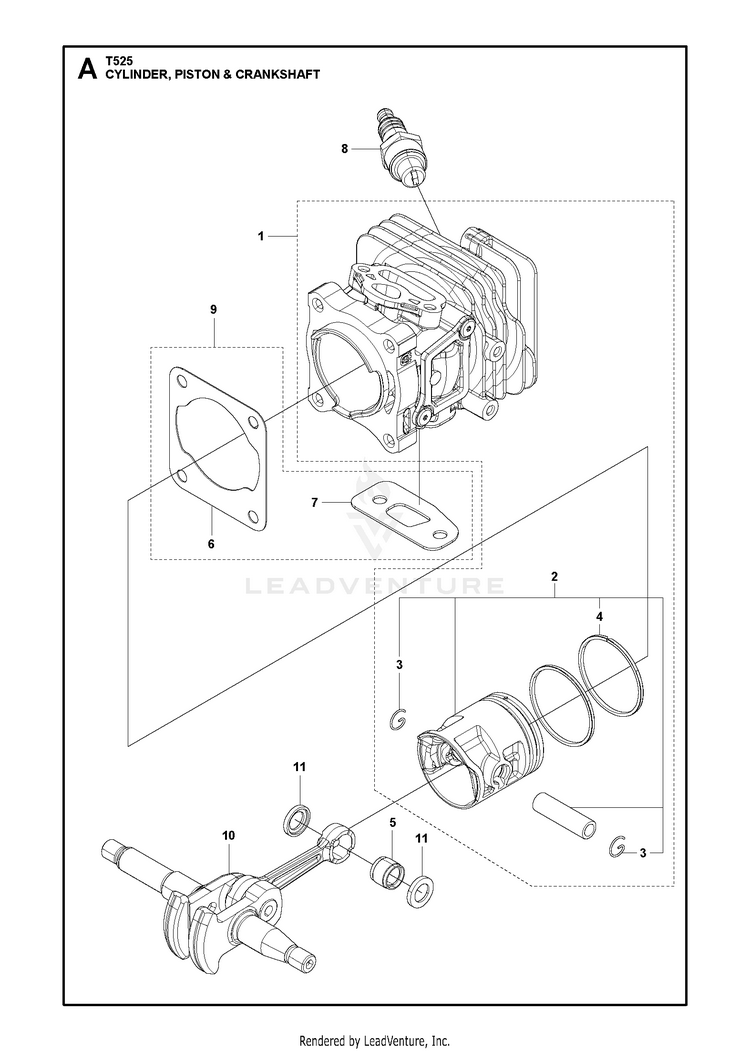

CYLINDER

...
...
4
PISTON RING HUS-590648501
...
6
GASKET BASE HUS-587868001
...
7
NEEDS DESCRIPTION HUS-587870402
...
3
CLIP RING HUS-737440800
...
5
BEARING HUS-505040901
...
9
NEEDS DESCRIPTION HUS-590531702
...
10
CRANKSHAFT COMP HUS-587869001
...
11
WASHER HUS-505041001
...
2
PISTON ASSY SPARE PART HUS-501015902
...
1
CYLINDER ASSY HUS-501015801
...
8
SPARK PLUG RESISTOR NGK CMR6A HUS-503235401
