Husqvarna T525 Chain Saw

Model: T525

Back To Assemblies

Save Part Not Listed?
product name

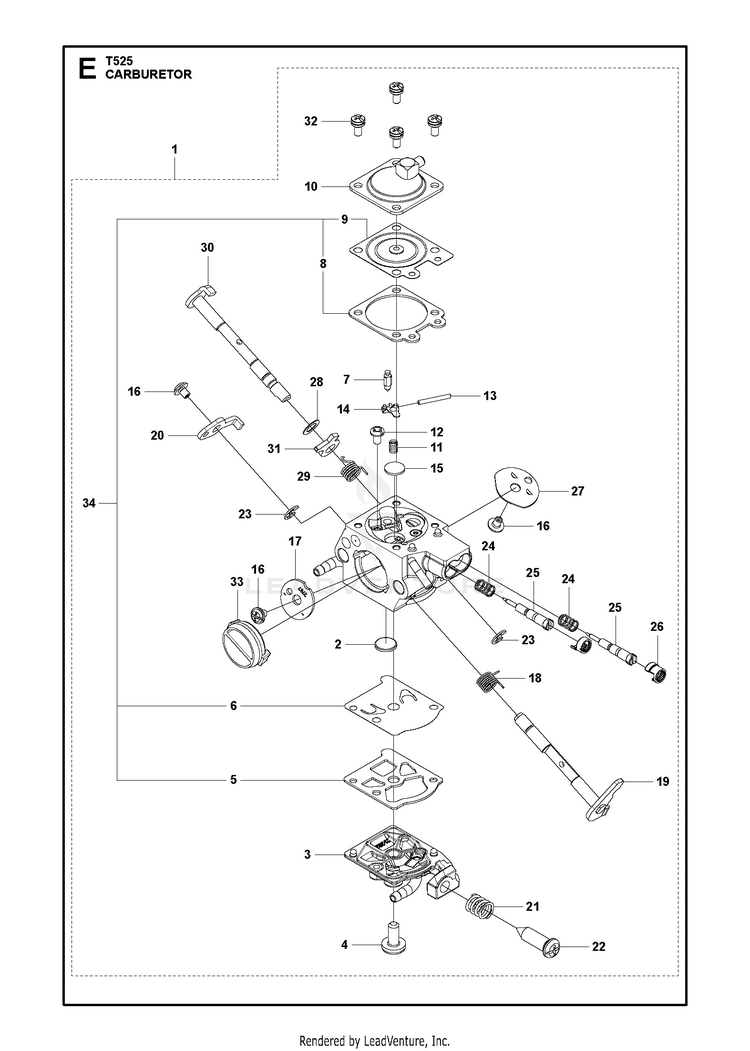

CARBURETOR

...
...
31
LEVER HUS-521581101
...
30
SHAFT ASSY CHOKE HUS-590219901
...
20
LEVER THROTTLE HUS-590219701
...
29
SPRING HUS-590219801
...
2
RP_SCREEN (RPLS 331081380) HUS-574012501
...
14
LEVER HUS-520977201
...
6
PUMPS HUS-596968101
...
33
RING MANIFOLD HUS-590237301
...
8
GASKET HUS-516972101
...
23
E-RING HUS-505056501
...
22
SCREW, IDLE HUS-577815701
...
4
SCREW HUS-520976301
...
27
VALVE T207581450 HUS-521790001
...
24
SPRING HUS-578912801
...
18
SPRING HUS-590219401
...
1
CARBURETTOR T525 HUS-587870502
...
3
COVER ASSY PUMP HUS-590219101
...
32
SCREW ASSY HUS-520978801
...
12
SCREW HUS-520977301
...
28
WASHER HUS-516524201
...
15
PLUG HUS-516342901
...
34
GASKET KIT HUS-585597401
...
13
PIN HUS-520977401
...
5
GASKET HUS-520954801
...
16
SCREW HUS-520759801
...
21
SPRING HUS-513593201
...
25
NEEDLE HIGH SPEED HUS-579190901
...
19
SHAFT ASSY THROTTLE HUS-590219501
...
7
VALVE INLET HUS-521085401
...
26
CAP LIMITER HUS-578913001
...
11
SPRING 848L9581C0 HUS-511967601
...
10
COVER HUS-522646001
...
9
DIAPHRAGM HUS-505306801
...
17
VALVE THROTTLE HUS-590219301
