Husqvarna T525 Chain Saw

Model: T525

Back To Assemblies

Save Part Not Listed?

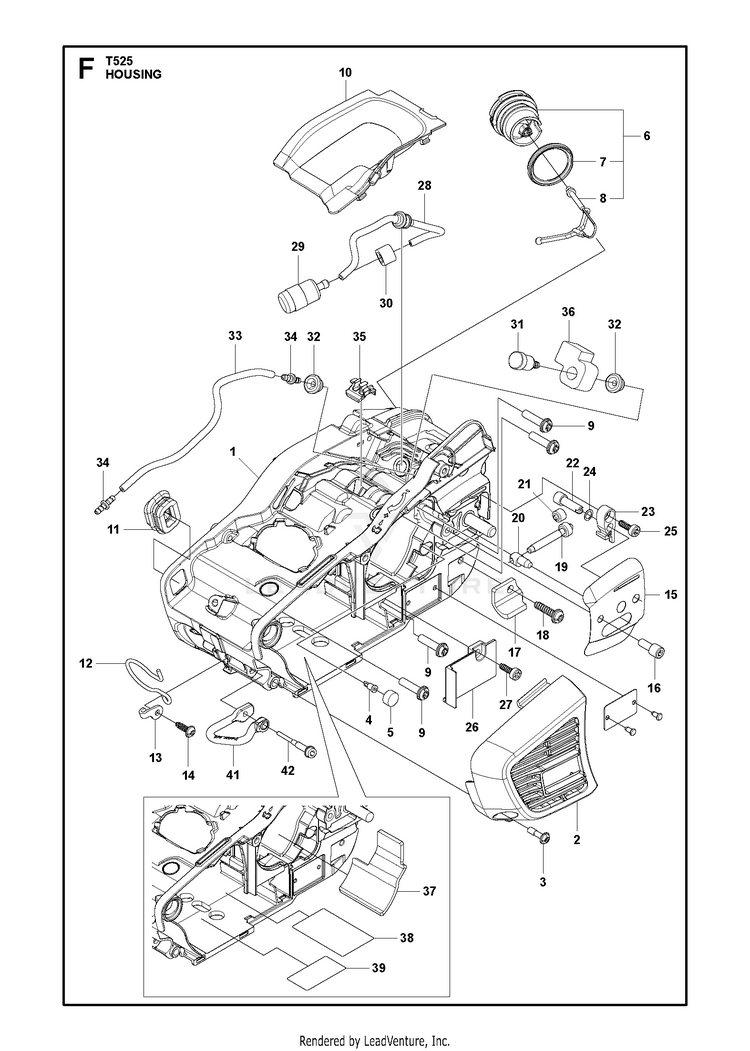

product name

HOUSING

...
...
42
SCREW ITXSCFM HUS-522847901
...
17
CATCHER HUS-513558701
...
20
NUT HUS-513701401
...
33
FUEL HOSE L=170 ROHS2 HUS-595526912
...
12
LOOP HUS-587873101
...
1
HOUSINGS From s/n 20182700001 and Use together with 587 87 39-02 COVER for Up to s/n 2018269999 HUS-587871505
...
13
BRACKET LOOP HUS-587873201
...
34
JOINT HUS-516950301
...
4
AIR CONTROL BREATHER HUS-516961901
...
24
WASHER HUS-590361001
...
38
INSULATING SHEET HUS-590153701
...
10
COVER ENGINE CASE ORANGE HUS-587872601
...
3
SCREW HEXABOULAR SLOTTED SOCKE HUS-590266402
...
2
MUFFLER GUARD ORANGE For US/CAN, AUS/NZ market HUS-593726701
...
23
COVER GEAR HUS-501905401
...
35
BRACKET PIPE HUS-587860801
...
37
INSULATING SHEET HUS-590153601
...
22
WORM GEAR HUS-501903501
...
26
NEEDS DESCRIPTION s/n from 20182700001 HUS-587874002
...
5
SEAL HUS-514235301
...
28
FUEL HOSE ASSY For EU, AUS/NZ, JP market HUS-590154403
...
31
BREATHERS HUS-597866301
...
28
NEEDS DESCRIPTION For US/CAN market HUS-590154404
...
1
HOUSINGS s/n up to 20182699999 HUS-587871505
...
39
INSULATING SHEET HUS-590153801
...
16
BOLT HUS-521799901
...
15
CHAIN GUIDE PLATE HUS-587873301
...
29
FILTER HUS-575960701
...
30
COLLER HUS-505044501
...
2
MUFFLER GUARD ORANGE For EU, JP market HUS-587872201
...
11
AIR INTAKE HUS-587876502
...
21
GEAR HUS-501899401
...
41
LOOP HUS-576381301
...
18
SCREW HUS-521518101
...
27
SCREW HUS-576984001
...
8
TANK LOCK HUS-503578901
...
32
GROMMETS HUS-514201402
...
6
TANK CAP ASSY HUS-577878603
...
36
SEALING HUS-590223901
...
26
COVER PUMP ORANGE s/n up to 20182699999 HUS-587874001
...
7
GASKET TANK CAP HUS-589241301
...
9
SCREW HEXABOULAR SLOTTED SOCKE HUS-590266501
...
14
SCREW HUS-576984001
...
25
SCREW HUS-576984001
...
19
WORM SCREW HUS-501904301
