Husqvarna T525 Chain Saw

Model: T525

Back To Assemblies

Save Part Not Listed?
product name

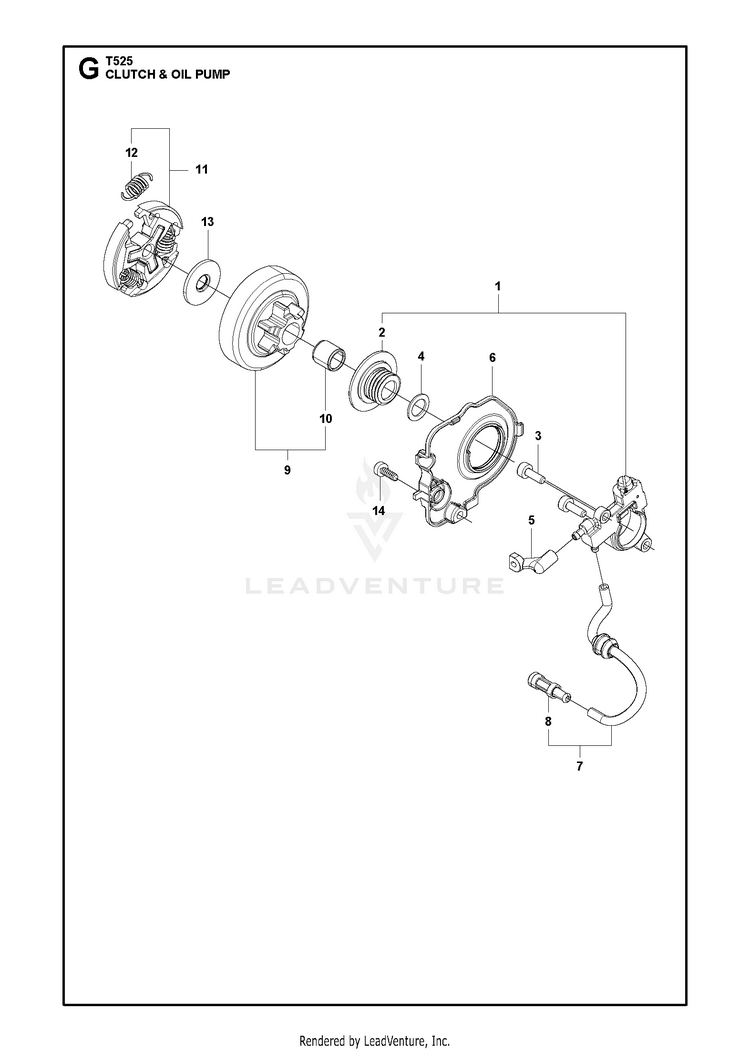

CLUTCH & OIL PUMP

...
...
11
CLUTCH 848C105121 HUS-511044501
...
4
WASHER HUS-505053301
...
7
HOSES HUS-587874102
...
2
GEARS HUS-593825301
...
3
BOLT M4 X 12 T27 HUS-521515701
...
13
PLATE HUS-512423401
...
9
CLUTCH DRUM ASSY 3/8 6 TOOTH 3/8 6 tooth HUS-501290501
...
6
COVER PUMP s/n up to 20182699999 HUS-587873901
...
9
CLUTCH DRUM ASSY 1/4 8 TOOTH 1/4 8 tooth HUS-501290502
...
5
OIL PRESSURE HOSE HUS-587873801
...
1
OIL PUMP ASSY HUS-587873401
...
14
SCREW HUS-576984001
...
9
CLUTCH DRUM ASSY 0,325 mimi 7 tooth HUS-501290503
...
6
COVER PUMP From s/n 20182700001 and Use together with 587 87 15-05 HOUSING ASSY for s/n up to 2018269999 HUS-587873901
...
8
FILTERS HUS-594706201
...
10
ROLLER BEARING HUS-514183301
...
12
SPRING T204151230 HUS-512423501
