Husqvarna T500 R (1999-06) Cultivator/Tiller

Model: T500 R (1999-06)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
44
HOUSING HUS-519653042
...
89
TAIL-SKID HUS-519653078
...
3
BELT HUS-519653058
...
52
SPACER HUS-519653095
...
14
PULLEY HUS-519653068
...
50
PINION HUS-519653057
...
16
SCREW HUS-728692300
...
11
SCREW HUS-519653410
...
104
NEEDS DESCRIPTION HUS-519653462
...
23
CABLE HUS-519653102
...
112
RETAINING RING HUS-519653466
...
43
HOUSING HUS-519653041
...
77
COVER HUS-519653422
...
36
GRATE HUS-519006471
...
56
CONTROL HUS-519653071
...
87
PIN HUS-519651210
...
48
BOLT HUS-519653010
...
46
SPACER SLEEVE HUS-519653072
...
111
HANDLE HUS-519653465
...
70
SHAFT HUS-519653066
...
68
ARM HUS-519653070
...
13
SPRING HUS-519653017
...
34
PULLEY HUS-519653457
...
53
SPACER HUS-519653094
...
41
GEAR HUS-519653007
...
1
CHASSIS HUS-519653405
...
31
SCREW HUS-519653454
...
80
SCREW HUS-519653046
...
75
PULLEY HUS-519653060
...
32
SCREW HUS-519653455
...
60A
CABLE HUS-519653419
...
98
TINE HUS-519653028
...
105
NUT HUS-519653430
...
7
CONTROL HUS-519653408
...
8
WIRE HUS-519653409
...
79
SPACER HUS-519653424
...
92
LABEL HUS-519653085
...
82
CLIP HUS-519653425
...
83
SCREW HUS-519653426
...
84
SPRING HUS-519650260
...
88
COTTER PIN HUS-519651220
...
15
ROLLER HUS-519651290
...
86
SUPPORT HUS-519653460
...
5
HANDLE HUS-519653406
...
72
CABLE HUS-519653055
...
85
WHEEL HUS-519653259
...
103
DECAL HUS-519653103
...
74
HANDLE HUS-519653051
...
100
GUARD HUS-519653001
...
59
PROTECTOR HUS-519653417
...
2
GUARD HUS-519650281
...
35
PROTECTOR HUS-519651160
...
10
ROLLER HUS-519653052
...
65
THROTTLE TRIGGER HUS-519653459
...
51
BRACKET HUS-519653006
...
66
THROTTLE CONTROL HUS-519649471
...
19
SCREW HUS-519006425
...
45
NEEDS DESCRIPTION HUS-519653391
...
76
COVER HUS-519653421
...
38
DRIVE CHAIN HUS-519653009
...
61
NUT HUS-732252001
...
22
SCREW HUS-519653021
...
99
TINE HUS-519653029
...
29
NUT HUS-519653452
...
62
HUS-725255051
...
26
WASHER HUS-519653449
...
81
Nut HUS-732252201
...
12
SCREW HUS-519653047
...
108
BLADE HUS-519653448
...
28
ROD HUS-519653451
...
24
SPACER HUS-519653414
...
20
BLADE HUS-519653447
...
47
SHAFT HUS-519653067
...
91
SCREW HUS-519653461
...
60
CABLE HUS-519653418
...
25
SPACER HUS-519653415
...
102
PIN HUS-519653360
...
39
BEARING HUS-519653053
...
64
KNOB HUS-516836515
...
27
WASHER HUS-519653450
...
9
SPRING HUS-519653090
...
113
CONNECTION HUS-519653427
...
49
SCREW HUS-519653045
...
110
SCREW HUS-519653464
...
94
LABEL HUS-519653084
...
42
RING HUS-519653043
...
40
BEARING HUS-519002631
...
63
NUT HUS-519653432
...
57
GEAR HUS-519653086
...
6
ARM Assy including: 6, 28, 29, 30, 31, 32, 33, 34, 37 HUS-519653407
...
106
NUT HUS-519653433
...
58
HOSE HUS-519653416
...
21
SCREW HUS-519653413
...
109
SCREW HUS-519653437
...
93
DECAL HUS-519653101
...
97
DECAL HUS-519653096
...
4
BELT HUS-519653059
...
17
NUT HUS-519653411
...
107
NEEDS DESCRIPTION HUS-519653463
...
69
WASHER HUS-519653049
...
54
SHAFT HUS-519653065
...
73
HANDLE HUS-519653420
...
78
COVER HUS-519653423
...
71
HANDLE HUS-519653091
...
67
CONTROL HUS-519653080
...
33
NUT HUS-519653456
...
37
NUT HUS-519653458
...
55
SPRING HUS-519653054
...
90
LABEL HUS-519653044
...
18
SCREW HUS-519653412
...
101
PIN HUS-519653093
...
30
WASHER HUS-519653453

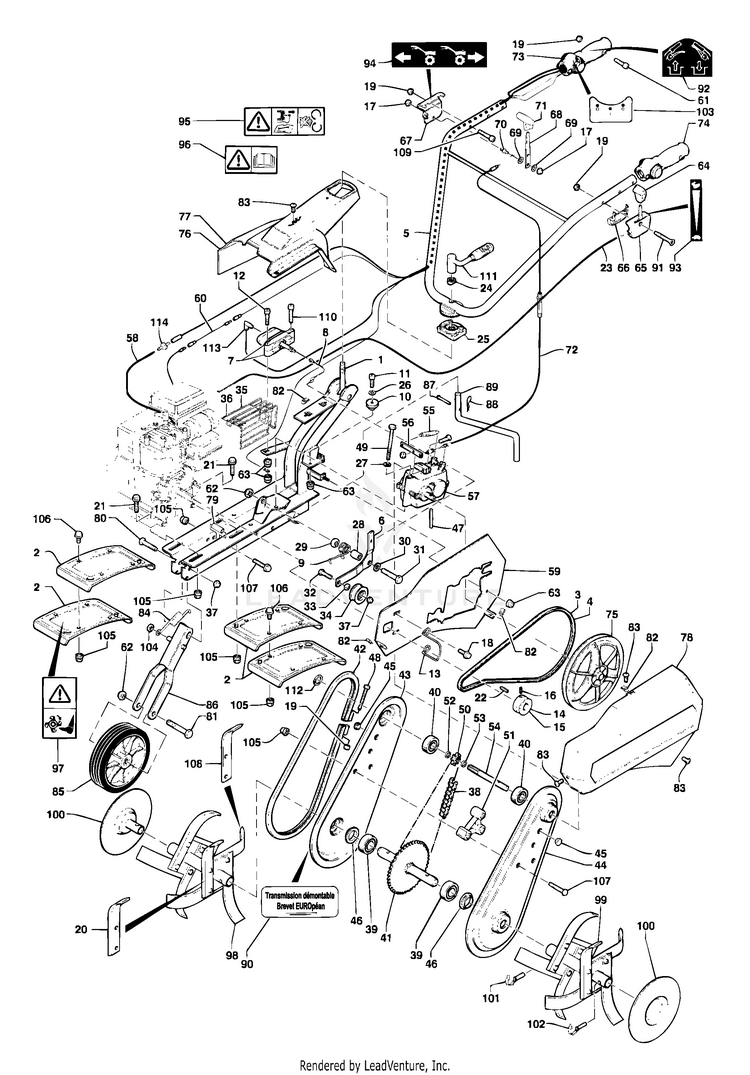

Schematic Image Zoomed
