Husqvarna T435 Chain Saw

Model: T435

Back To Assemblies

Save Part Not Listed?
product name

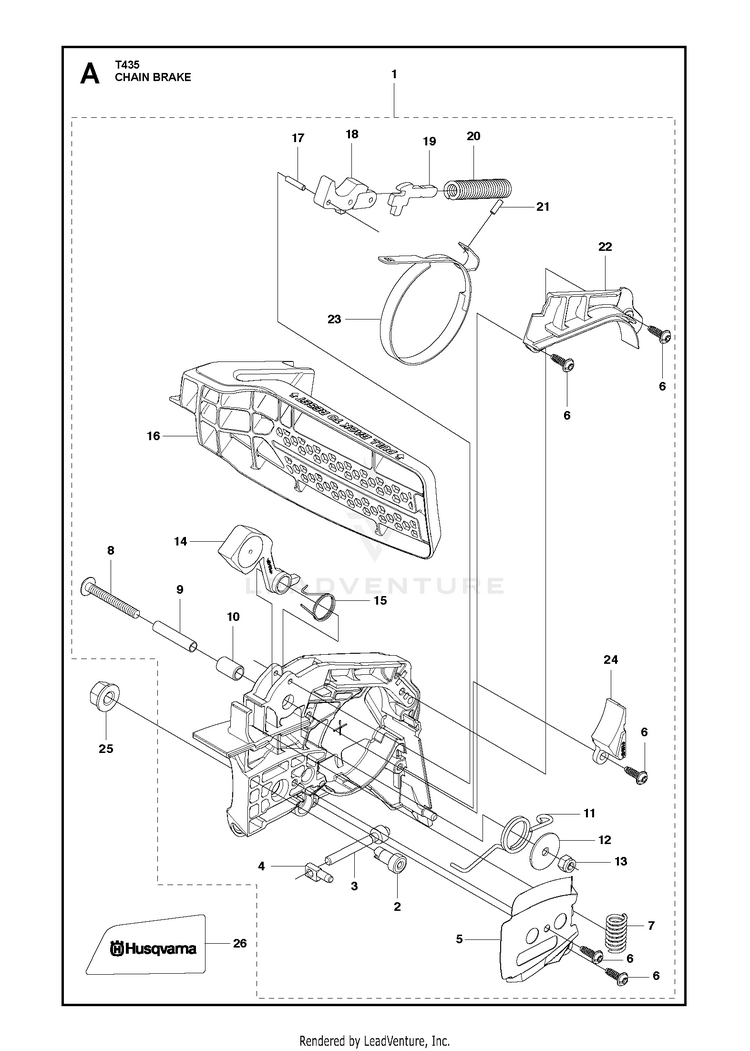

CHAIN BRAKE 2

...
...
24
GUIDE HUS-523080601
...
9
RP_SPACER HUS-574008301
...
10
SPACER HUS-513760301
...
13
NUT HUS-514183901
...
11
RETURN SPRING HUS-513758801
...
16
GUARD HUS-522015701
...
23
BRAKE BAND s/n up to — 201222301961 HUS-580885901
...
6
RP_SCREW HUS-574005501
...
22
COVER LID GRAY s/n up to — 201222301961 HUS-587349502
...
21
RP_PIN HUS-574013101
...
23
BRAKE BAND s/n from 201222301962 HUS-587349601
...
3
SCREW HUS-513730701
...
1
CLUTCH COVER ASSY T435 HUS-587349201
...
18
RP_LEVER, BRAKE COMPLETE HUS-574008701
...
15
RP_SPRING HUS-574080301
...
4
NUT HUS-513701401
...
2
GEAR HUS-513637901
...
7
SPRING HUS-522643201
...
5
PLATE HUS-522643301
...
20
SPRING HUS-516826601
...
26
DECAL HUS-522635201
...
17
ROLLER HUS-505051701
...
19
ARM, SLIDE(RPLS 267054410) HUS-574005401
...
12
%WASHER (RPLS 3330-75410) HUS-574013001
...
8
RP_SCREW HUS-574008201
...
22
COVER LID GRAY s/n from 201222301962 HUS-587349502
...
25
NUT FLANGE HUS-575960801
...
14
WEIGHT HUS-527752201
