Husqvarna T435 Chain Saw

Model: T435

Back To Assemblies

Save Part Not Listed?
product name

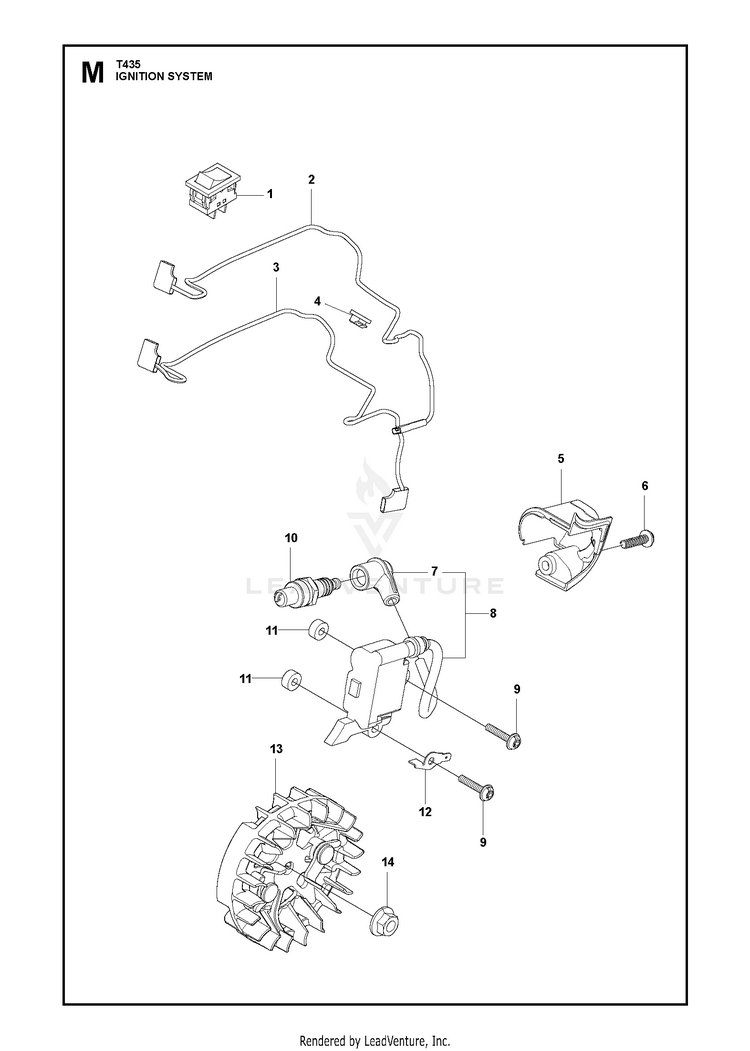

IGNITION SYSTEM 2

...
...
7
CAP HUS-512444001
...
12
TERMINAL HUS-522644401
...
5
COVER SPARK PLUG GRAY HUS-585517902
...
14
NUT(RPLS 1140-43230&182301) HUS-516437401
...
13
FLYWHEEL ASSY HUS-581972001
...
10
CMR6H NGK SPARK PLUG HUS-531008615
...
8
IGNITION COIL ASSY HUS-584403701
...
11
SPACER HUS-505043401
...
6
SCREW HUS-521518101
...
2
CORD, SWITCH HUS-522644501
...
4
GROMMET HUS-522644301
...
1
STOP SWITCH NM_09091801 HUS-586246801
...
3
CORD, EARTH HUS-522644601
...
9
BOLT M4X20 HUS-585702901
