Husqvarna T435 Chain Saw

Model: T435

Back To Assemblies

Save Part Not Listed?

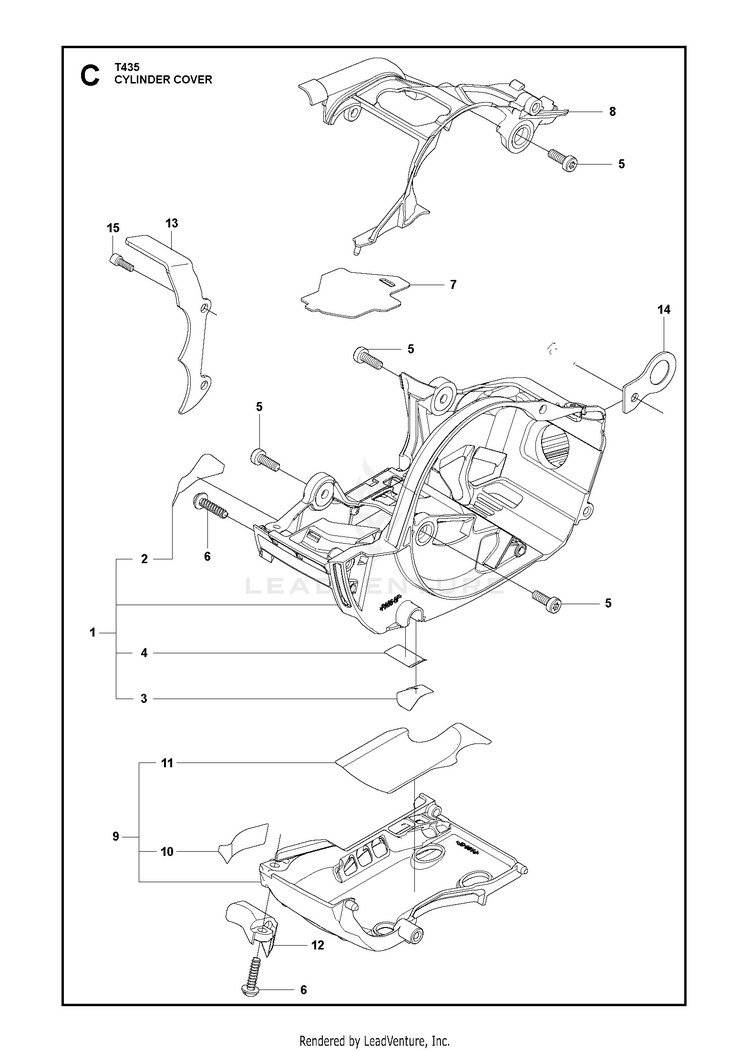

product name

CYLINDER COVER

...
...
7
GASKET HUS-522641201
...
5
BOLT HUS-521516201
...
9
GUARD HUS-577104901
...
14
HOOK HUS-522001801
...
10
TAPE HUS-527677201
...
11
TAPE HUS-577103701
...
6
SCREW (RPLS 267132210) HUS-521518001
...
8
COVER TOP HUS-522001201
...
4
TAPE, CASE HUS-527684001
...
1
CASE COMP HUS-522001101
...
13
SPIKE 439 HUS-579716101
...
2
TAPE, CASE HUS-527667901
...
3
TAPE, CASE HUS-527682801
...
12
CATCHER (RPLS -66F1) HUS-522012101
...
15
BOLT HUS-521516201
