Husqvarna T435 Chain Saw

Model: T435

Back To Assemblies

Save Part Not Listed?
product name

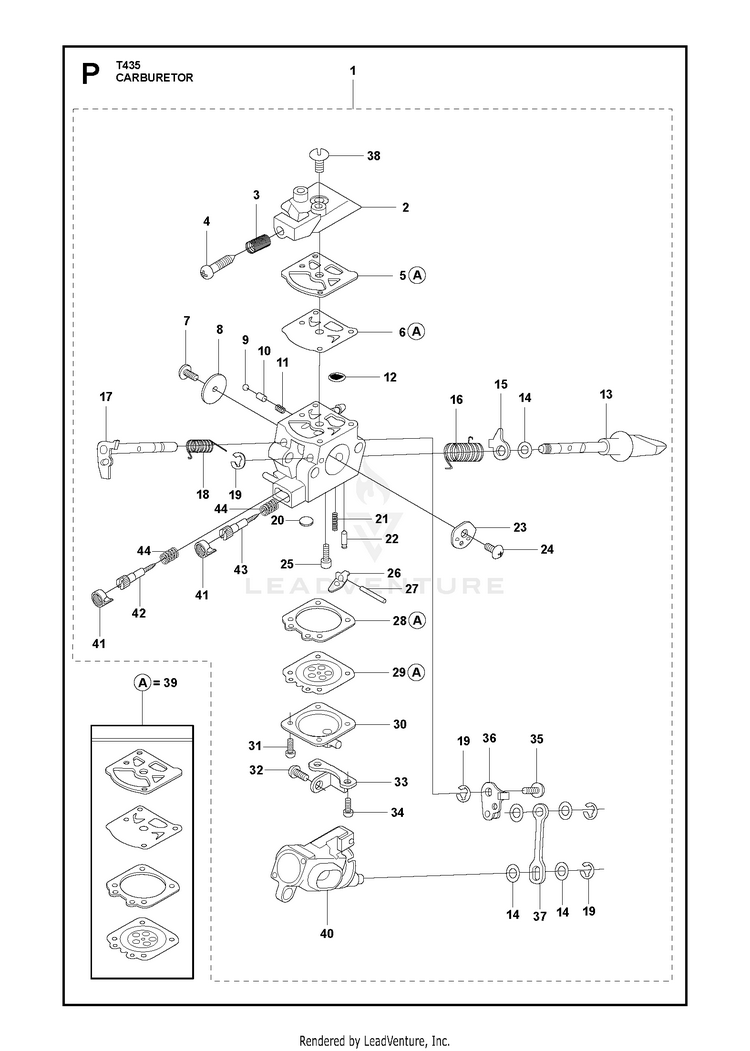

CARBURETOR

...
...
20
PLUG HUS-516342901
...
31
SCREW ASSY HUS-520978801
...
35
SCREW HUS-520759801
...
10
PISTON HUS-516935901
...
28
GASKET HUS-516972101
...
18
SPRING RETURN HUS-516843901
...
15
LEVER HUS-521581101
...
44
SPRING HUS-578912801
...
9
BALL HUS-516936001
...
5
GASKET HUS-520954801
...
29
DIAPHRAGM HUS-505306801
...
12
RP_SCREEN (RPLS 331081380) HUS-574012501
...
11
SPRING HUS-505057901
...
4
SCREW HUS-516778301
...
7
SCREW HUS-520759801
...
40
BODY ASSY AIR VALVE 5-8416 HUS-579236301
...
22
VALVE INLET HUS-521085401
...
3
SPRING HUS-521066301
...
38
SCREW HUS-520976301
...
27
PIN HUS-520977401
...
25
SCREW HUS-520977301
...
37
ROD, LINK HUS-522646401
...
8
VALVE HUS-520978601
...
24
SCREW HUS-520759801
...
30
COVER HUS-522646001
...
13
SHAFT HUS-522632001
...
36
LINK ASSY THROT HUS-522645901
...
2
COVER PUMP HUS-501405701
...
1
NEEDS DESCRIPTION HUS-578936902
...
42
NEEDLE HUS-579223701
...
43
NEEDLE H HUS-578913101
...
39
GASKET, KIT HUS-527661601
...
21
SPRING HUS-516980001
...
26
LEVER HUS-520977201
...
34
SCREW ASSY HUS-522645601
...
16
SPRING HUS-521580101
...
32
SCREW HUS-522646101
...
14
WASHER HUS-516524201
...
17
SHAFT ASST THRO HUS-522646201
...
19
E-RING HUS-505056501
...
6
DIAPHRAGM HUS-520954901
...
33
BRACKET 167-596 HUS-579236401
...
23
CHOKE VALVE HUS-516956901
...
41
CAP LIMITER HUS-578913001
