Husqvarna T435 Chain Saw

Model: T435

Back To Assemblies

Save Part Not Listed?
product name

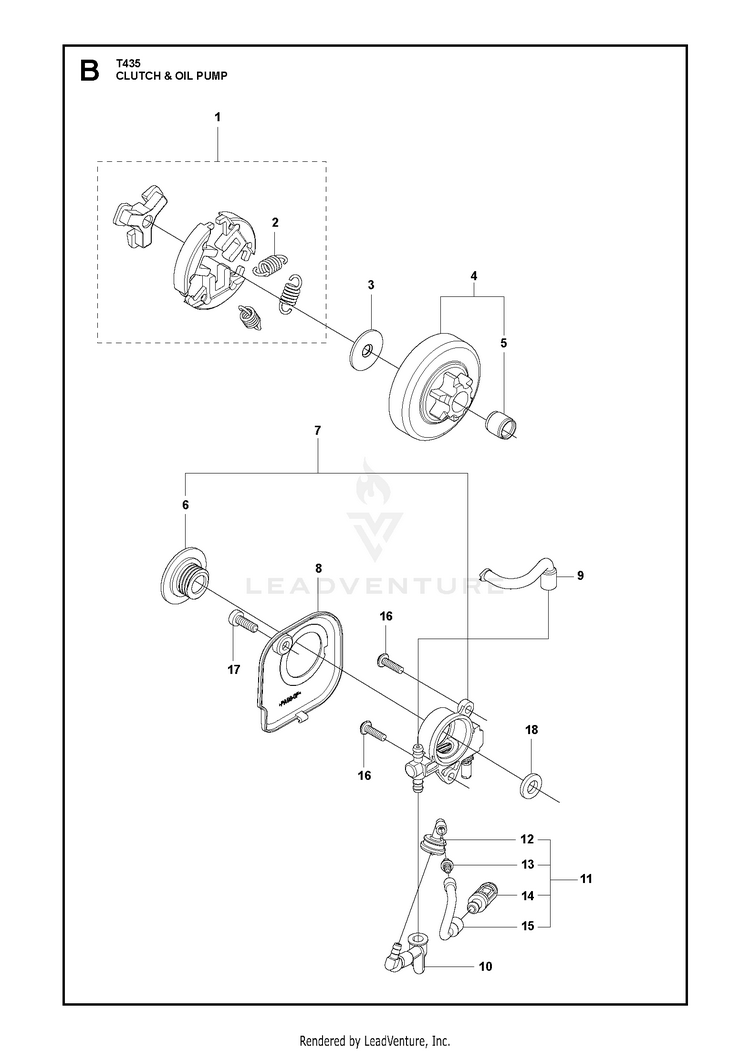

CLUTCH & OIL PUMP

...
...
11
FILTER COMPLETE HUS-527672301
...
17
BOLT HUS-521516201
...
6
GEARS HUS-593825301
...
2
SPRING HUS-521557501
...
7
OIL PUMP SET(RPLS 284155112 HUS-521586001
...
5
ROLLER BEARING HUS-514183301
...
4
DRUM HUS-512489201
...
3
PLATE HUS-512423401
...
12
OIL FILTER HUS-527672101
...
15
PIPE (GZ3500T) HUS-529251701
...
14
FILTER HUS-505045101
...
18
WASHER HUS-505053301
...
13
JOINT HUS-516950301
...
10
PIPE IN COMP HUS-522643601
...
8
COVER PUMP HUS-522005801
...
1
CLUTCH-ASSY HUS-521557401
...
9
Outlets HUS-521792602
...
16
SCREW HUS-516829401
