Husqvarna T40 M - 966512601 (2011-08) Cultivator/Tiller

Model: T40 M - 966512601 (2011-08)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
1
NEEDS DESCRIPTION HUS-575358601
...
206
BEARING HUS-519653053
...
21
NEEDS DESCRIPTION HUS-575359701
...
74
NUT HUS-519653456
...
36
NEEDS DESCRIPTION HUS-575360401
...
68
NEEDS DESCRIPTION HUS-531008220
...
66
NEEDS DESCRIPTION HUS-575361801
...
202
RING HUS-519653043
...
65
SCREW HUS-519653455
...
17
NEEDS DESCRIPTION HUS-531008214
...
77
NUT HUS-544207901
...
29
PULLEY HUS-519653457
...
83
LABEL HUS-501962501
...
39
NEEDS DESCRIPTION HUS-575360501
...
52
NEEDS DESCRIPTION HUS-575361201
...
2
NEEDS DESCRIPTION HUS-575358701
...
27
ARM Assy including: 27, 39, 71, 66, 29, 78, 74 HUS-519653407
...
48
RETAINING RING HUS-519653466
...
8
NEEDS DESCRIPTION HUS-575359401
...
207
NEEDS DESCRIPTION HUS-505544001
...
210
SCREW HUS-501963801
...
9
WING NUT HUS-531008462
...
72
NUT HUS-519653432
...
67
NEEDS DESCRIPTION HUS-575361901
...
59
NEEDS DESCRIPTION HUS-575361501
...
201
HOUSING HUS-519653042
...
69
NEEDS DESCRIPTION HUS-544314901
...
212
GEAR HUS-519653007
...
41
NEEDS DESCRIPTION HUS-575360701
...
23
NEEDS DESCRIPTION HUS-575359901
...
43
NEEDS DESCRIPTION HUS-575360901
...
30
PULLEY HUS-519653060
...
57
NEEDS DESCRIPTION HUS-575361401
...
33
NEEDS DESCRIPTION HUS-531008577
...
20
NEEDS DESCRIPTION HUS-519653362
...
3
NEEDS DESCRIPTION HUS-531008262
...
18
BLADE HUS-519653448
...
82
NEEDS DESCRIPTION HUS-531008540
...
79
NEEDS DESCRIPTION HUS-752255051
...
205
PINION HUS-519653057
...
85
NEEDS DESCRIPTION HUS-575362201
...
10
NEEDS DESCRIPTION HUS-544311401
...
58
NEEDS DESCRIPTION HUS-531008586
...
81
NEEDS DESCRIPTION HUS-544311001
...
46
SCREW HUS-519653021
...
213
BRACKET HUS-519653006
...
204
NEEDS DESCRIPTION HUS-575362301
...
61
SCREW HUS-544207301
...
19
BLADE HUS-519653447
...
50
NEEDS DESCRIPTION HUS-531009411
...
70
WASHER HUS-544208101
...
40
NEEDS DESCRIPTION HUS-575360601
...
53
SCREW HUS-519653426
...
32
NEEDS DESCRIPTION HUS-575360201
...
14
NEEDS DESCRIPTION HUS-531008213
...
34
NEEDS DESCRIPTION HUS-575360301
...
4
NEEDS DESCRIPTION HUS-575358801
...
80
NEEDS DESCRIPTION HUS-531008578
...
47
CLIP HUS-519653425
...
12
NEEDS DESCRIPTION HUS-575359501
...
31
PULLEY HUS-544243901
...
45
NEEDS DESCRIPTION HUS-575361101
...
211
Blocking nut M 6 Z HUS-732261601
...
15
NEEDS DESCRIPTION HUS-531008211
...
35
NEEDS DESCRIPTION HUS-531008207
...
42
NEEDS DESCRIPTION HUS-575360801
...
28
SPRING HUS-519653090
...
24
NEEDS DESCRIPTION HUS-575360001
...
25
SHAFT HUS-519653065
...
200
HOUSING HUS-519653041
...
76
Blocking nut M 6 Z HUS-732261601
...
209
NEEDS DESCRIPTION HUS-519653391
...
6
NEEDS DESCRIPTION HUS-575359001
...
51
NEEDS DESCRIPTION HUS-531009410
...
22
NEEDS DESCRIPTION HUS-575359801
...
56
SCREW HUS-728692300
...
73
NUT HUS-519653430
...
16
NEEDS DESCRIPTION HUS-531008215
...
60
NEEDS DESCRIPTION HUS-531008202
...
37
NEEDS DESCRIPTION HUS-523006201
...
208
NEEDS DESCRIPTION HUS-531008546
...
7
NEEDS DESCRIPTION HUS-575359101
...
64
NEEDS DESCRIPTION HUS-575361701
...
63
NEEDS DESCRIPTION HUS-573943101
...
5
NEEDS DESCRIPTION HUS-575358901
...
13
NEEDS DESCRIPTION HUS-575359601
...
78
NUT HUS-519653458
...
54
NEEDS DESCRIPTION HUS-544313101
...
38
SHAFT HUS-519653067
...
49
COTTER PIN HUS-519651220
...
55
NEEDS DESCRIPTION HUS-575361301
...
11
NEEDS DESCRIPTION HUS-531008206
...
62
NEEDS DESCRIPTION HUS-575361601
...
71
WASHER HUS-519653453
...
26
NEEDS DESCRIPTION HUS-597166201
...
44
NEEDS DESCRIPTION HUS-575361001
...
203
NEEDS DESCRIPTION HUS-531008576
...
84
NEEDS DESCRIPTION HUS-575362001

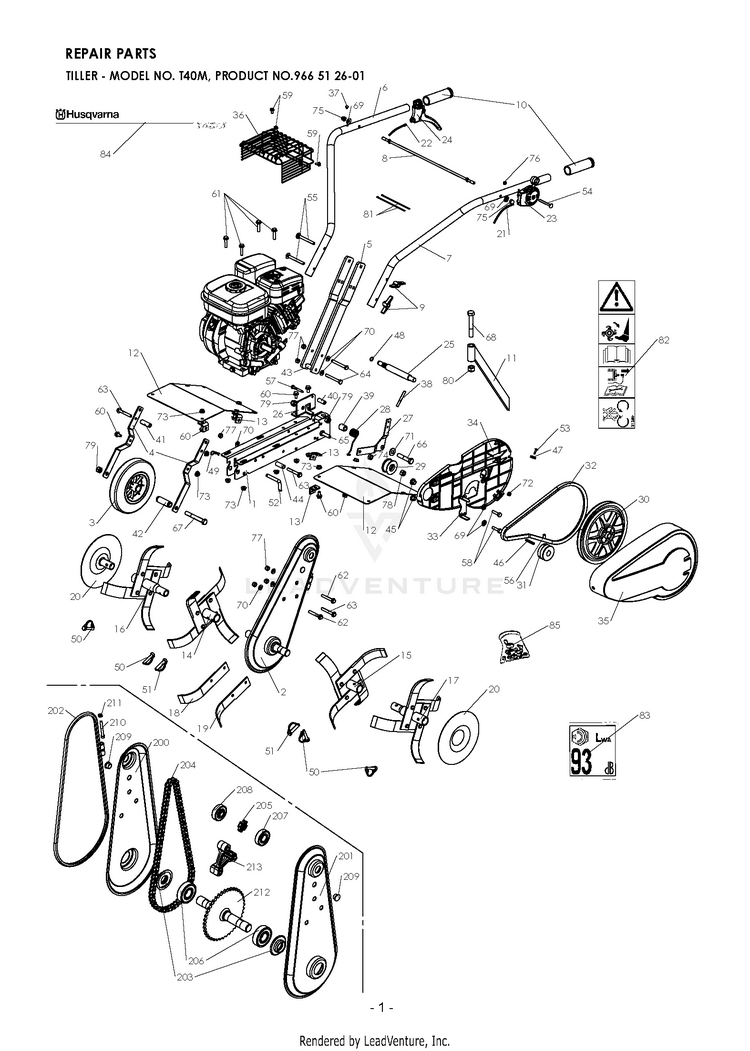

Schematic Image Zoomed
