Husqvarna T200 - 965160801 (2008-09) Cultivator/Tiller

Model: T200 - 965160801 (2008-09)

Save Part Not Listed?
product name

PRODUCT COMPLETE

...
...
13
TUBE, PIVOT AXLE HUS-532136518
...
67
BOLT CARRIAGE HUS-872110618
...
3
KIT SPINDLE ASM.PNT.LH.15 HUS-596873901
...
46
CAP.SPINDLE.BLACK HUS-532121232
...
19
STEERING SHAFT SUPPORT HUS-532160395
...
82
SERVICE.KIT BRACKET HUS-531170201
...
27
GEAR.SECTOR HUS-532136874
...
80
BOLT.HX.NYLON3/8-16X HUS-874950612
...
63
Bolts HUS-596564401
...
79
GSPH HUS-596134901
...
85
FASTENER.XMAS.TREE HUS-532133835
...
1
STEERING WHEEL HUS-532166627
...
29
SCREW, 3/8-16X3/4 HUS-817000612
...
38
INSERT.CAP.STRG.WH (3 2) (L B) HUS-532172092
...
9
BEARING.STEERING.COLUMN HUS-532003366
...
11
Washers HUS-596238701
...
5
WASHER THRUST HUS-532006266
...
7
WASHER HUS-819272016
...
54
Screws HUS-595305701
...
15
NUT.HEX.FLANGE.3/8-16.LOCKNUT HUS-532409149
...
4
KIT SPINDLE ASM.PNT.RH.15" HUS-596873801
...
47
FITTING.GREASE.TAPERED HUS-532183226
...
26
BUSHING.DRAGLINK (2 2) HUS-532126847
...
25
BRACKET STEERING HUS-532154406
...
2
SERVICE KIT AXLE HALF ASM HUS-531171101
...
23
SERVICE.KIT SHAFT ASSY SHAFT A HUS-531154301
...
22
SCREW.HX.WSH.HD HUS-532165857
...
66
BEARING ARM HUS-532154404
...
43
WASHER HUS-532121749
...
28
WASHER HUS-819131414
...
68
SERVICE KIT BRACE.AXLE.1 HUS-531167401
...
44
SHAFT EXT STEERING HUS-532153721
...
36
KIT.BUSHING.STEERING HUS-532155106
...
37
SCREW.TT.#10-32X.5.3/8.FLANGE HUS-532152927
...
6
WASHER HUS-532121748
...
51
Hardware HUS-596040501
...
62
KIT.STEER.ASM.P/L HUS-584371701
...
40
NUT HUS-873610600
...
18
THRUST WASHER HUS-532057079
...
17
SERVICE KIT SHAFT ASM ST HUS-531166901
...
8
RING CLIP HUS-812000029
...
39
Washer 13/32 x 1-1/20 x 11 Gauge HUS-819132411
...
32
ROD.TIE.WIRE.FORM HUS-532192757
...
10
DRAGLINK.15".TIRES HUS-532169832
...
30
Pins HUS-596029501
...
41
STEERING WHEEL ADAPTOR HUS-532159945
...
42
STEERING BOOT, GRAY HUS-532145054
...
65
SPACER.BRACE.AXLE HUS-532414736

DRIVE

...
...
2
NEEDS DESCRIPTION HUS-531008528
...
14
SUPPORT HUS-544205701
...
15
HANDLEBAR HUS-501985101
...
37
NEEDS DESCRIPTION HUS-531009419
...
25
Blocking nut M 6 Z HUS-732261601
...
23
SCREW HUS-544207501
...
35
NEEDS DESCRIPTION HUS-531009420
...
21
NEEDS DESCRIPTION HUS-531008542
...
9
NEEDS DESCRIPTION HUS-531008558
...
10
GRIP HUS-544206601
...
29
COTTER PIN HUS-519651220
...
33
NEEDS DESCRIPTION HUS-531008540
...
20
NEEDS DESCRIPTION HUS-531008409
...
6
NEEDS DESCRIPTION HUS-531008545
...
4
NEEDS DESCRIPTION HUS-531008527
...
3
NEEDS DESCRIPTION HUS-531008525
...
12
NEEDS DESCRIPTION HUS-531008530
...
22
NUT HUS-519653433
...
31
LABEL HUS-501963701
...
34
LABEL HUS-501962501
...
7
NEEDS DESCRIPTION HUS-531008524
...
27
WASHER HUS-501985301
...
16
NEEDS DESCRIPTION HUS-531008537
...
26
NEEDS DESCRIPTION HUS-531008539
...
19
SCREW HUS-501985201
...
11
NEEDS DESCRIPTION HUS-531008529
...
36
NEEDS DESCRIPTION HUS-531008570
...
32
LABEL HUS-519653085
...
1
TRANSMISSION HUS-501985701
...
30
PIN HUS-501985501
...
28
WASHER HUS-519653449
...
8
ADAPTER HUS-501985601
...
24
NUT HUS-501985901
...
13
NEEDS DESCRIPTION HUS-531008533
...
18
NEEDS DESCRIPTION HUS-519653048
...
17
SPACER HUS-501985801
...
5
NEEDS DESCRIPTION HUS-531008526

SEAT

...
...
12
BRKT.MNTNG.SWITCH.SEAT.BLACK HUS-532174648
...
3
Bolts HUS-596564401
...
25
BOLT,SHOULD HUS-532127018
...
4
WASHER PM HUS-819131610
...
13
BUSHING HUS-532121248
...
15
SPACER SPLIT 28X.96 HUS-532134300
...
11
KNOB.SEAT.ADJ.WINGNUT HUS-532166369
...
16
SPRING HUS-532121250
...
17
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
22
Hardware HUS-596040501
...
6
Nuts HUS-596322601
...
1
SEAT.XG090.BLK.KB/BLT.NO-LOG HUS-532401042
...
24
Washers HUS-596040101
...
21
BOLT.5/16-18X5/8.SHOULDER HUS-587907801
...
10
PAN.ASM.SEAT.1SLOT HUS-532195530
...
2
SERVICE KIT BRACKET SEAT PIVOT HUS-531152401
...
14
BOLT.ROUND.HEAD.SQUARE.NECK HUS-872050412
...
9
Washers HUS-596140201
...
7
SPRING.COMPRESSION.SEAT.BLACK HUS-587613301
...
5
PUSH CLIP HUS-532145006
...
8
SCREW 3/8-16X1 HUS-817000616

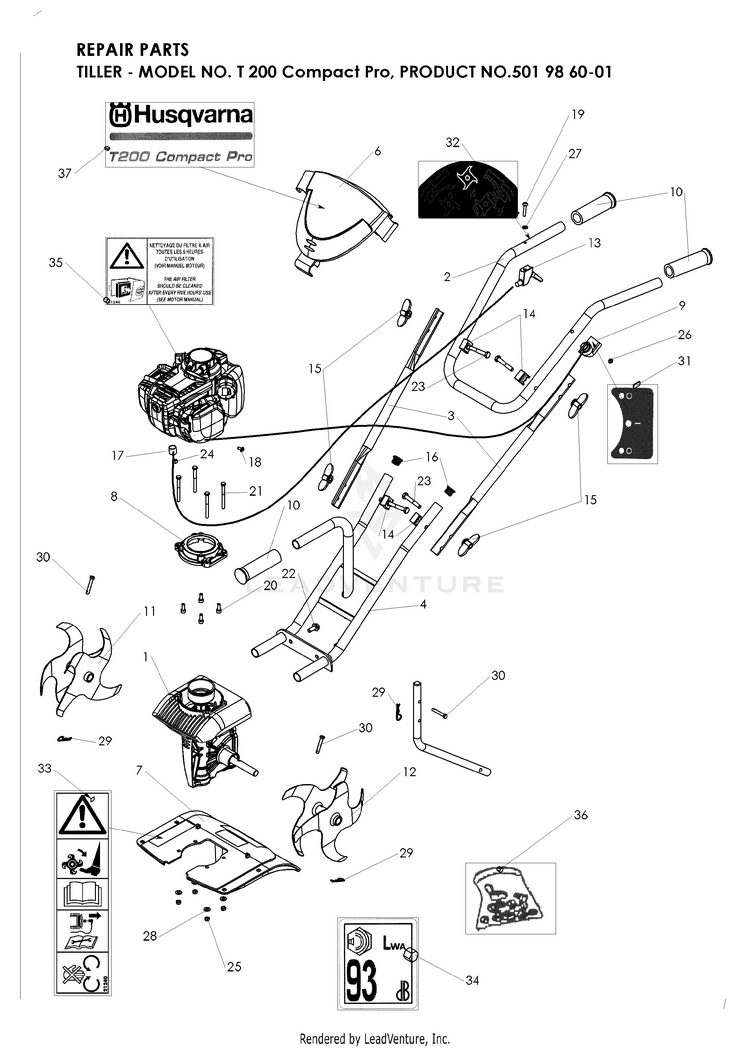

Schematic Image Zoomed
