Husqvarna T1444E (1994) Tractor

Model: T1444E (1994)

Back To Assemblies

Save Part Not Listed?
product name

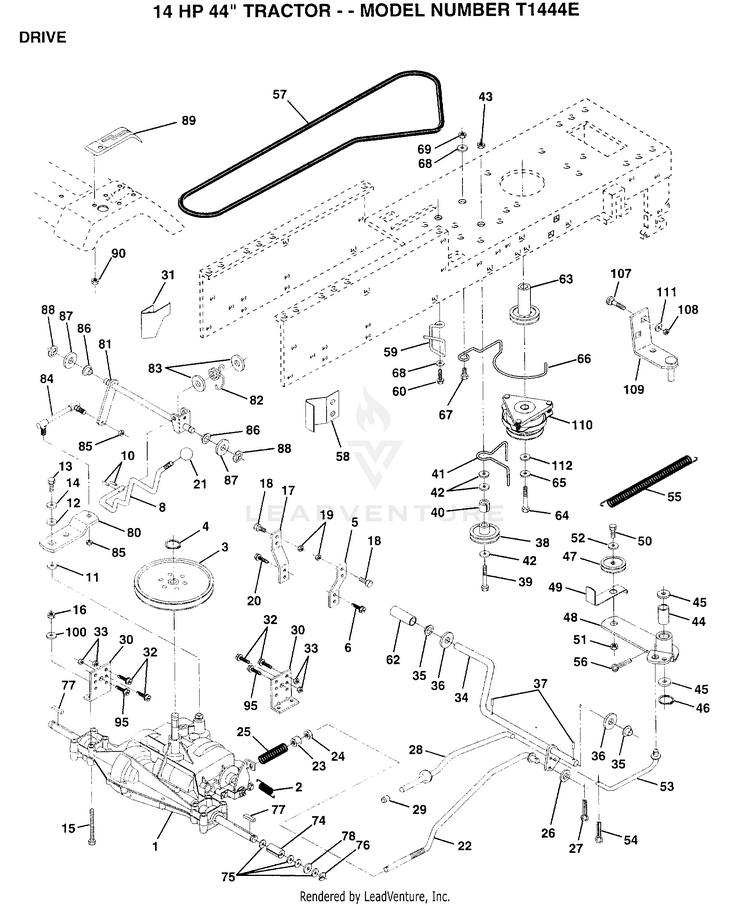

DRIVE

...
...
1
SUB= 145605 HUS-142607
...
2
SUB= 146682 HUS-110422X
...
3
PULLEY TRANS HUS-123666X
...
4
SUB= 2267J HUS-12000028
...
5
STRAP TORQUE HUS-121520X
...
6
SCREW HUS-17490512
...
8
ROD SHIFT FEND LT HUS-141003
...
10
PIN COTTER 1/8 HUS-76020416
...
11
WASH-SHFT PLT LT HUS-105701X
...
12
WASHER HUS-19151216
...
13
SUB= 74550412 HUS-71040412
...
14
LOCKWASHER HUS-10040400
...
15
BOLT HEX HUS-74780544
...
16
SUB= 73690500 HUS-73680500
...
17
STRAP TORQUE HUS-121520X
...
18
BOLT HUS-74760616
...
21
CONTROL KNOB LT HUS-106279X
...
22
BRAKE ROD HUS-130804
...
23
NUT HUS-73800600
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
BRAKE PARK ROD HUS-133261
...
29
SUB= 71673 HUS-7733J
...
30
TRANSAXLE MTG BKT HUS-130807
...
31
"KEEPER,BELT LH T" HUS-127275X
...
32
BOLT HUS-74760512
...
33
NUT HUS-73800500
...
34
SUB= 149001 HUS-122424X
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
PULLEY.IDLER.FLAT HUS-123674X
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
BELT KEEPER LT HUS-109070X
...
42
WASHER HUS-19131312
...
43
NUT HUS-73800600
...
44
"LY, BEARING" HUS-105706X
...
45
WASHER LT HUS-110812X
...
46
KLIP RING HUS-12000039
...
47
SUB= 139245 HUS-127783
...
48
ARM IDLER HUS-123789X
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
WASHER HUS-19131316
...
53
"LINK, CLUTCH T" HUS-105710X
...
54
COTTER PIN HUS-76020412
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
COTTER PIN HUS-76020412
...
57
SUB= 138255 HUS-130801
...
58
"KEEPER,BELT RH T" HUS-127274X
...
59
KEEPER BELT CNTSP HUS-140312
...
62
PEDAL COVER T HUS-8883R
...
63
PULLEY CLU ELEC HUS-140189
...
64
SUB= 150280 HUS-71170768
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER, BELT ENGINE HUS-131218
...
67
BOLT HUS-74760616
...
68
WASHER HUS-19131312
...
69
SUB= 73690500 HUS-73680500
...
70
"KEEPER,BLT ENG LT" HUS-105730X
...
74
SPACER LT HUS-109502X
...
75
WASHER HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
...
80
ARM SHIFT TRANS HUS-131487
...
81
SHAFT ASM.SHIFT HUS-136933
...
82
"SPRING,TORSION" HUS-123782X
...
83
WASHER HUS-19171216
...
84
TIE ROD HUS-132183
...
85
NUT 1/4-28 HUS-73530400
...
86
BUSHING HUS-71208
...
87
WASHER D HUS-19212016
...
88
KLIP RING HUS-12000008
...
89
SUB= 918139964 HUS-139964
...
90
NUT HUS-124346X
...
95
SCREW HUS-17490612
...
100
WASHER M HUS-19111216
...
107
BOLT HUS-72140506
...
108
SUB= 73690500 HUS-73680500
...
109
BRACKET.ASM.MTG HUS-137141
...
110
SUB= 142600 HUS-137140
...
111
WASHER T HUS-19111012
...
112
WASHER HUS-126197X
