Husqvarna T1444D (1993) Tractor

Model: T1444D (1993)

Back To Assemblies

Save Part Not Listed?
product name

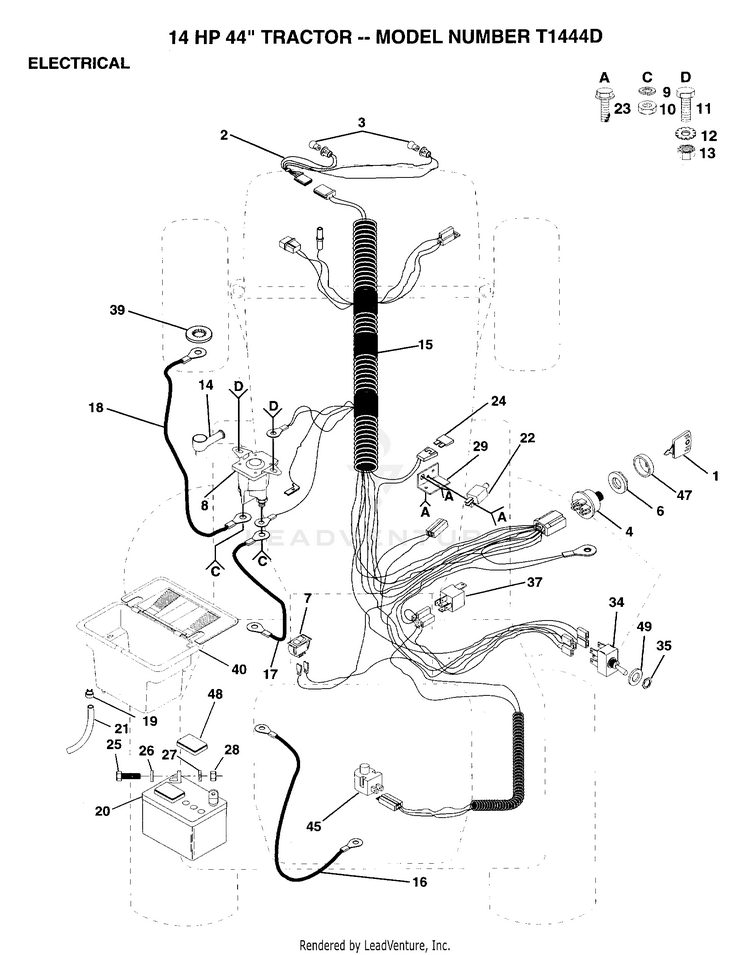

ELECTRICAL

...
...
1
KEY HUS-122147X
...
2
"HARNESS,LIGHT SOC" HUS-136850
...
3
HEADLAMP BULB HUS-4152J
...
4
SUB= 918102972X HUS-102972X
...
6
NUT IGNITION HUS-124211X
...
7
SWITCH LT HUS-110712X
...
8
SUB= 146154 HUS-138406
...
9
SUB= 10040400 HUS-10090400
...
10
NUT HUS-73350400
...
11
BOLT HUS-74780408
...
12
LOCKWASHER HUS-11050400
...
13
NUT HUS-73510400
...
14
SUB= 154336 HUS-131563
...
15
HARNESS.IGN HUS-139630
...
16
CABLE T HUS-4207J
...
17
SUB= 146147 HUS-132202
...
18
"CABLE T, BATTERY" HUS-4799J
...
19
HOSE CLAMP T HUS-109596X
...
20
SUB= 123899X HUS-121265X
...
21
TUBE T HUS-109238X
...
22
SWITCH-INTER. GT HUS-104445X
...
23
SCREW HUS-17021008
...
24
FUSE HYT HUS-108824X
...
25
BOLT LT HUS-74760412
...
26
WASHER HUS-19091016
...
27
LOCKWASHER HUS-10040400
...
28
SUB= 50675 HUS-73220400
...
29
BRACKET LT HUS-108236X
...
34
"SWITCH,PTO" HUS-126017X
...
35
HEX NUT T HUS-4022J
...
37
RELAY ASSY T HUS-109748X
...
39
LOCKWASHER HUS-11150400
...
40
SUB= 156417 HUS-129965
...
45
SWITCH SEAT HUS-121305X
...
47
SUB= 141226 HUS-123620X
...
48
"CAP,BATTERY " HUS-121264X
...
49
WASHER HUS-19171216
