Husqvarna T1238F (1998) Tractor

Model: T1238F (1998)

Back To Assemblies

Save Part Not Listed?
product name

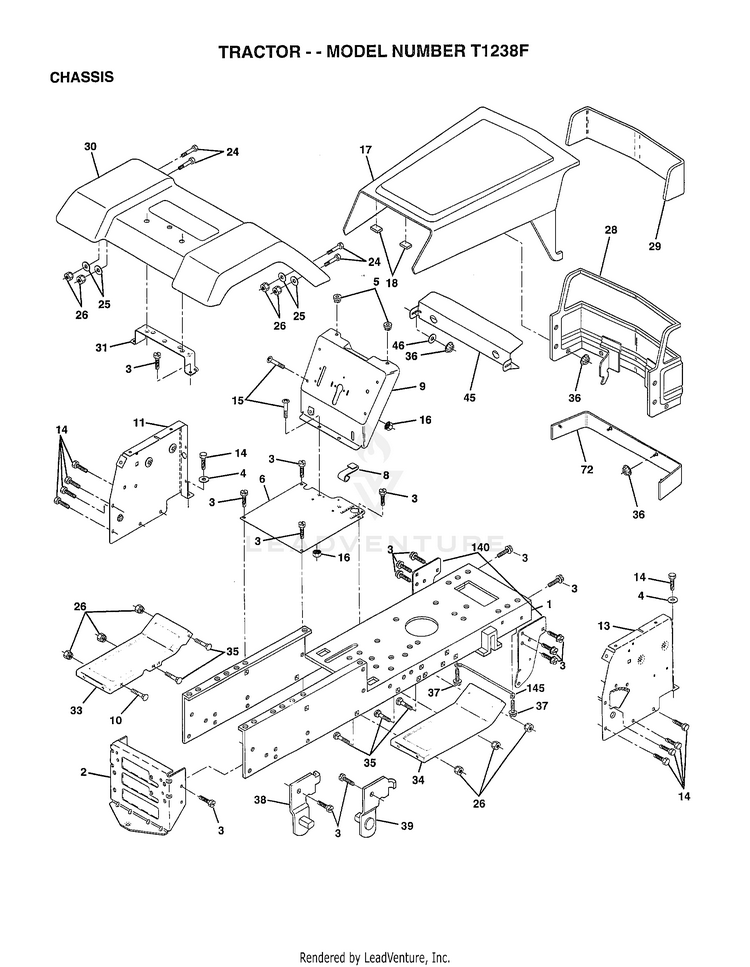

CHASSIS

...
...
1
CHASSIS HUS-160393
...
2
SUB= 145009 HUS-140356
...
3
SCREW HUS-17490612
...
4
WASHER HUS-19131216
...
5
BUMPER-HOOD/DASH HUS-155272
...
6
SADDLE-SILKSCREEN HUS-155924X015
...
8
CLIP.RETAINER HUS-155138
...
9
DASH.SILKSCREEN HUS-161913X010
...
10
SUB= 72110608 HUS-72140608
...
11
"PANEL-DASH,LH" HUS-155927
...
13
SUB= 169117X010 HUS-155934X010
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD.W/SD.PNLS.LT HUS-146399X550
...
18
SUB= 532126938 HUS-126938X
...
24
BOLT HUS-74780616
...
25
WASHER HUS-19131312
...
26
NUT HUS-73800600
...
28
GRILLE.RALLY.BAR. HUS-133951
...
29
LENS SERVICE KIT HUS-133954
...
30
FENDER PNT LT HUS-157584X550
...
31
BRKT FENDER HUS-136619
...
33
FOOTREST.LH.PERF. HUS-105476X550
...
34
FOOTREST.RH.PERF. HUS-105475X550
...
35
BOLT HUS-72110606
...
36
PAL NUT LT HUS-108067X
...
38
BRACKET ASM LH HUS-139886
...
39
BRACKET ASM RH HUS-139887
...
45
SUB= 918132257 HUS-132257
...
46
RETAINER HUS-127316X
...
72
SUB= 109745X417 HUS-109745X
...
140
BRKT SUSPENSION HUS-158418
...
145
"ROD POVOT,CHASSIS" HUS-156524
...
xx
PLUG BUTTON T HUS-5479J
