Husqvarna T1238D (1992) Tractor

Model: T1238D (1992)

Back To Assemblies

Save Part Not Listed?
product name

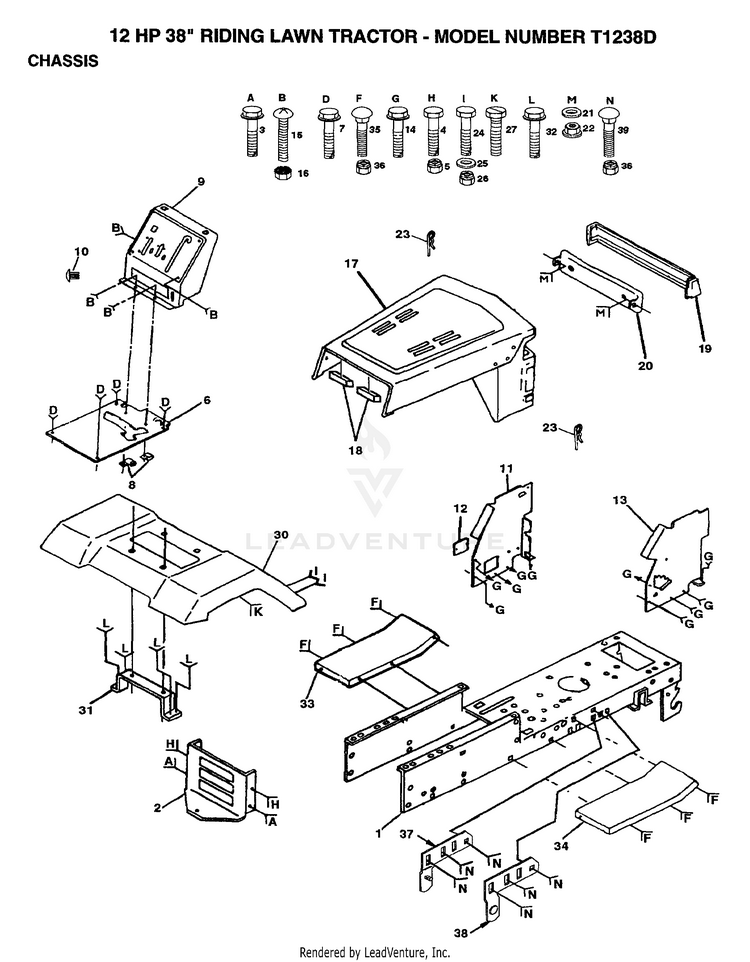

CHASSIS

...
...
1
SUB= 145501 HUS-135034
...
2
DRAWBAR LT/YT HUS-127866
...
3
SCREW HUS-17490612
...
4
SUB= 74780612 HUS-74760612
...
5
NUT HUS-7368060
...
6
SADDLE HUS-124464X011
...
7
SCREW LT HUS-17490608
...
8
CLIP T HUS-2751R
...
9
DASH HUS-123042X013
...
10
PLUG BUTTON T HUS-5479J
...
11
PANEL DASH LH HUS-122795X
...
12
COVER ACCESS HUS-121794X
...
13
SUB= 155934X010 HUS-124031X012
...
14
SCREW LT HUS-17490608
...
15
SCREW HUS-74180512
...
16
NUT HUS-73510500
...
17
HOOD/GRILL ASM HUS-133956X419
...
18
SUB= 532126938 HUS-126938X
...
19
SUB= 133954 HUS-133805
...
20
SUB= 918132257 HUS-132257
...
21
WASHER PM HUS-19091216
...
22
PAL NUT LT HUS-108067X
...
23
SPRING.RETAINER HUS-4921H
...
24
SUB= 74780612 HUS-74760612
...
25
WASHER HUS-19131312
...
26
SUB= 73690600 HUS-73680600
...
27
SCREW LT HUS-17490608
...
30
FENDER HUS-109872X419
...
31
SUB= 136619 HUS-109873X
...
32
SCREW HUS-17490612
...
33
FOOTREST LH HUS-105476X419
...
34
FOOTREST HUS-105475X419
...
35
BOLT HUS-72110606
...
36
SUB= 73690600 HUS-73680600
...
37
BRKT ASM PIVOT LH HUS-134618
...
38
BRKT ASM PIVOT RH HUS-134617
...
39
BOLT HUS-72140606
