Husqvarna T1238D (1992) Tractor

Model: T1238D (1992)

Back To Assemblies

Save Part Not Listed?
product name

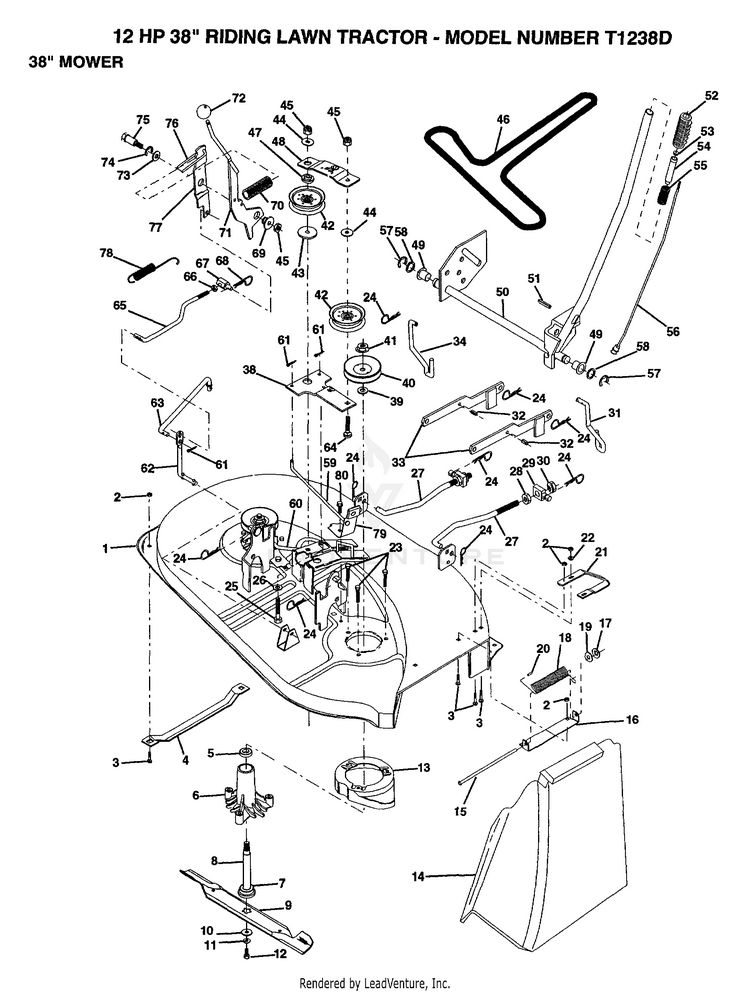

MOWER

...
...
1
SUB= 145775 HUS-129365
...
2
SUB= 73690500 HUS-73680500
...
3
BOLT HUS-72140506
...
4
RUNNER-LH M HUS-7631J
...
5
BEARING HUS-110485X
...
6
HSG ASM MANDREL HUS-128774
...
7
BEARING.BALL HUS-129895
...
8
SUB= 137646 HUS-133172
...
9
SUB= 138497 HUS-127842
...
10
WASHER BLADE HUS-129962
...
11
SUB= 10040600 HUS-10030600
...
12
BLADE BOLT HUS-850857
...
13
SUB= 140329 HUS-128961
...
14
DEFLECTOR-SHLD T HUS-106736X
...
15
ROD-HINGE T HUS-106735X
...
16
SUB= 137607 HUS-105896X
...
17
NUT PUSH M HUS-110452X
...
18
SUB= 123713X HUS-106734X
...
19
WASHER HUS-19111016
...
20
CAP-SLEEVE LT HUS-105304X
...
21
RUNNER RH HUS-128772
...
22
WASHER M HUS-19111216
...
23
SUB= 17580520 HUS-78158
...
24
SUB= 85902 HUS-4939M
...
25
BOLT HUS-74600636
...
26
WASHER GT HUS-19131612
...
27
LINK.FRONT HUS-127218
...
28
NUT HUS-73350800
...
29
TRUNION HUS-130171
...
30
NUT.LK.W/WSH.1/2. HUS-73800800
...
31
LINK LIFT RH HUS-127224
...
32
SPRING PIN HUS-128763
...
33
SUSP ARM REAR HUS-133710
...
34
LIFT LINK LH HUS-127223
...
35
NUT HUS-73360700
...
36
SUB= 132793 HUS-110447X
...
37
NUT LOCK YTH HUS-73710700
...
38
IDLER ARM ASSY HUS-133840
...
39
WASHER HUS-129963
...
40
SUB= 153532 HUS-129206
...
41
SUB= 139729 HUS-73050900
...
42
FLAT IDLER PULLEY HUS-131494
...
43
SPACER RETAINER HUS-122052X
...
44
WASHER GT HUS-19131612
...
45
SUB= 73690600 HUS-73680600
...
46
BELT-V.88.12.MW HUS-131290
...
47
RETAINER SPACER HUS-133502
...
48
IDLER ARM STIFF HUS-133503
...
49
NYLON BEARING HUS-120183X
...
50
SUB= 145117 HUS-122507X
...
51
PIN-GROOVE LT HUS-105767X
...
52
GRIP HUS-109413X
...
53
SUB= 125925X HUS-124385X
...
54
SUB= 125925X HUS-122364X
...
55
SUB= 532122512 HUS-122512X
...
56
SUB= 136973 HUS-122514X
...
57
SUB= 2225J HUS-12000002
...
58
WASHER HUS-19211416
...
59
BRAKE ROD RH HUS-131288
...
60
BRAKE ROD LH HUS-131289
...
61
SUB= 3145 HUS-76020312
...
62
PIVOT ROD HUS-133551
...
63
CLUTCH ROD SECOND HUS-133504
...
64
BOLT HUS-72110614
...
65
SUB= 142427 HUS-133550
...
66
NUT HUS-73350600
...
67
TRUNION HUS-133205
...
68
RETAINER M HUS-4497H
...
69
BUSHING HUS-127498
...
70
SUB= 918128759 HUS-128759
...
71
CLUTCH ARM PRI AS HUS-133573
...
72
SUB= 106932X HUS-7803J
...
73
WASHER HUS-121748X
...
74
RING HUS-12000029
...
75
SHOULDER BOLT HUS-128903
...
76
SPRING KEEPER HUS-127845
...
77
CLUTCH ARM SECOND HUS-127847
...
78
RETURN SPRING HUS-131870
...
79
BRAKE ASM HUS-130840
...
80
SCREW HUS-17490512
...
xx
MANDREL ASM HUS-130794
...
xx
SUB= 142820 HUS-132027
