Husqvarna T1238D (1992) Tractor

Model: T1238D (1992)

Back To Assemblies

Save Part Not Listed?
product name

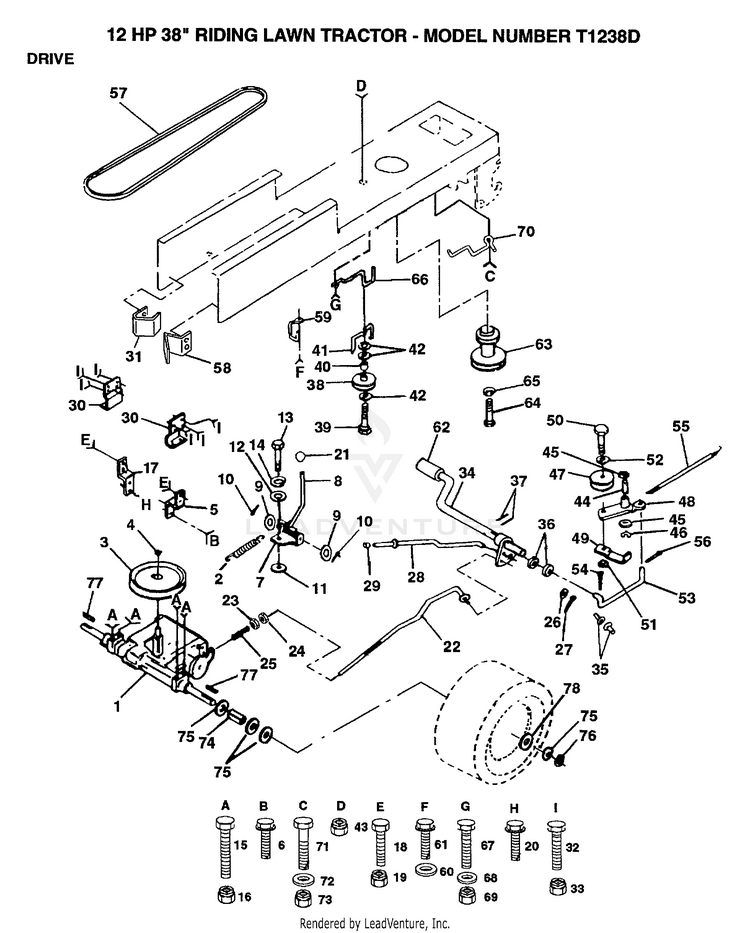

DRIVE

...
...
1
SUB= 137367 HUS-120898X
...
2
SUB= 146682 HUS-110422X
...
3
PULLEY TRANS HUS-123666X
...
4
SUB= 2267J HUS-12000028
...
5
STRAP TORQUE HUS-121520X
...
6
SCREW HUS-17490512
...
7
PLATE SHIFT LT HUS-106919X
...
8
ROD SHIFTER HUS-124461X
...
9
WASHER HUS-19151216
...
10
PIN COTTER 1/8 HUS-76020416
...
11
WASH-SHFT PLT LT HUS-105701X
...
12
WASHER LT HUS-19091210
...
13
SUB= 74550412 HUS-71040412
...
14
LOCKWASHER HUS-10040400
...
15
BOLT HUS-74760644
...
16
SUB= 73690600 HUS-73680600
...
17
STRAP TORQUE HUS-121520X
...
18
SUB= 74780612 HUS-74760612
...
19
SUB= 73690600 HUS-73680600
...
20
SCREW HUS-17490512
...
21
CONTROL KNOB LT HUS-106279X
...
22
BRAKE ROD HUS-131867
...
23
NUT HUS-73800600
...
24
NUT HUS-73350600
...
25
SPRING ROD LT HUS-106888X
...
26
WASHER HUS-19131316
...
27
COTTER PIN HUS-76020412
...
28
PARKING BRAKE ROD HUS-128904
...
29
SUB= 71673 HUS-7733J
...
30
BRACKET LT HUS-109167X
...
31
"KEEPER,BELT LH T" HUS-127275X
...
32
SUB= 74780612 HUS-74760612
...
33
SUB= 73690600 HUS-73680600
...
34
SUB= 149001 HUS-122424X
...
35
NYLON BEARING HUS-120183X
...
36
WASHER LT HUS-19211616
...
37
SUB= 2882J HUS-1572H
...
38
PULLEY.IDLER.FLAT HUS-123674X
...
39
BOLT HUS-74760644
...
40
SPACER T HUS-4470J
...
41
BELT KEEPER LT HUS-109070X
...
42
WASHER HUS-19131312
...
43
SUB= 73690600 HUS-73680600
...
44
"LY, BEARING" HUS-105706X
...
45
WASHER LT HUS-110812X
...
46
KLIP RING HUS-12000039
...
47
SUB= 139245 HUS-127783
...
48
ARM IDLER HUS-123789X
...
49
RETAIN BELT HUS-123205X
...
50
SUB= 74930624 HUS-74760624
...
51
SUB= 73690600 HUS-73680600
...
52
WASHER HUS-19131316
...
53
"LINK, CLUTCH T" HUS-105710X
...
54
COTTER PIN HUS-76020412
...
55
"SPRING, RETURN LT" HUS-105709X
...
56
COTTER PIN HUS-76020412
...
57
BELT-V.90.0.GD.DR HUS-125907X
...
58
"KEEPER,BELT RH T" HUS-127274X
...
59
SUB= 140312 HUS-104777X
...
60
WASHER HUS-19131312
...
61
SCREW HUS-17490612
...
62
PEDAL COVER T HUS-8883R
...
63
SUB= 136004 HUS-134825
...
64
SUB= 150280 HUS-71170768
...
65
LOCKWASHER HUS-10040700
...
66
KEEPER.BELT.ENG.L HUS-129921
...
67
BOLT HUS-74760616
...
68
WASHER HUS-19131312
...
69
SUB= 73690600 HUS-73680600
...
70
GUIDE BLT DR MWR HUS-131402
...
71
BOLT HUS-74760616
...
72
WASHER HUS-19132012
...
73
SUB= 73690600 HUS-73680600
...
74
SPACER LT HUS-109502X
...
75
WASHER HUS-121749X
...
76
E-RING LT HUS-12000001
...
77
SQUARE KEY HUS-123583X
...
78
WASHER HUS-121748X
