product name

Husqvarna T1238A (1996) Tractor

Model: T1238A (1996)

Back To Assemblies

Save Part Not Listed?
product name

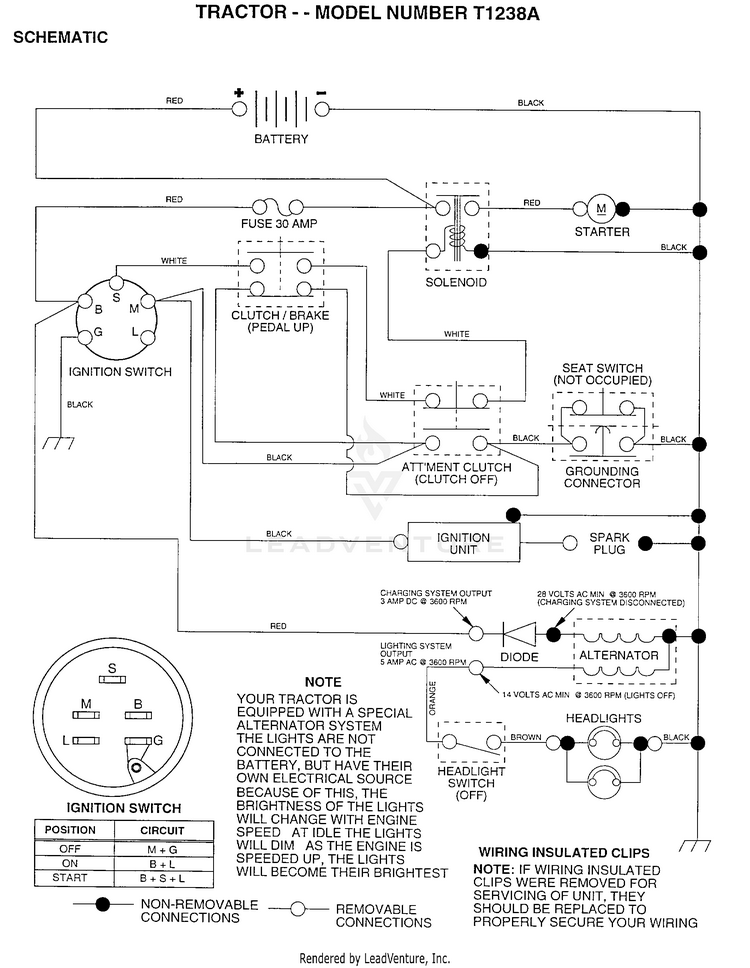

SCHEMATIC

...
...
1
DECAL.DASH.INSTR. HUS-138956
...
2
"DECAL,GRILL" HUS-126171X
...
3
DECAL, HP ENGINE HUS-272440
...
4
DECAL GRILLE COOP HUS-152472
...
6
DECAL CAUTION HUS-133795
...
7
DECAL T HUS-101892X
...
8
DECAL LOGO FENDER HUS-152473
...
9
DECAL.STRIPE.GR HUS-126658X
...
10
NLA HUS-135013
...
11
"DECAL, WARNING" HUS-137259
...
12
DECAL HOOD RH HUS-152470
...
13
"DECAL,STR WHL T" HUS-126175X
...
14
DECAL HOOD LH HUS-152471
...
15
DECAL.BTRY.DANGER HUS-146451
...
16
DECAL BRAK PARK HUS-140837
...
17
DECAL HUS-136832
...
xx
DECAL HANDLE LIFT HUS-138311
...
xx
"MANUAL.OP.GEN.38""" HUS-145761
...
xx
MANUAL.P.T1238A HUS-152401
...
xx
SNOW THROWER HUS-LSB42
...
xx
SNOW BLADE HUS-LBD48
...
xx
WHEEL WTS. HUS-LC05
...
xx
TIRE CHAINS HUS-CH12
...
xx
KIT.MULCHER HUS-MK380
...
xx
GRASS CATCHER HUS-C38
...
1
VALVE CAP HUS-59192
...
2
VALVE STEM LT HUS-65139
...
3
SUB= 122073X HUS-106222X
...
4
TUBE.5.3/4.5/6 HUS-59904
...
5
"RIM ASM 6"" FRT" HUS-106732X427
...
6
FITTING LT HUS-278H
...
7
"FLANGE, BEARING" HUS-9040H
...
8
"RIM AS 8"" REAR" HUS-106108X427
...
9
SUB= 126957X HUS-124635X
...
10
TUBE.18X9.5-8 HUS-7152J
...
11
HUB CAP HUS-104757X
...
xx
SEALANT.TIRE 10 OZ. TUBE HUS-144334
