Husqvarna Sweeper 960 (1991-04) Sweeper

Model: Sweeper 960 (1991-04)

Back To Assemblies

Save Part Not Listed?
product name

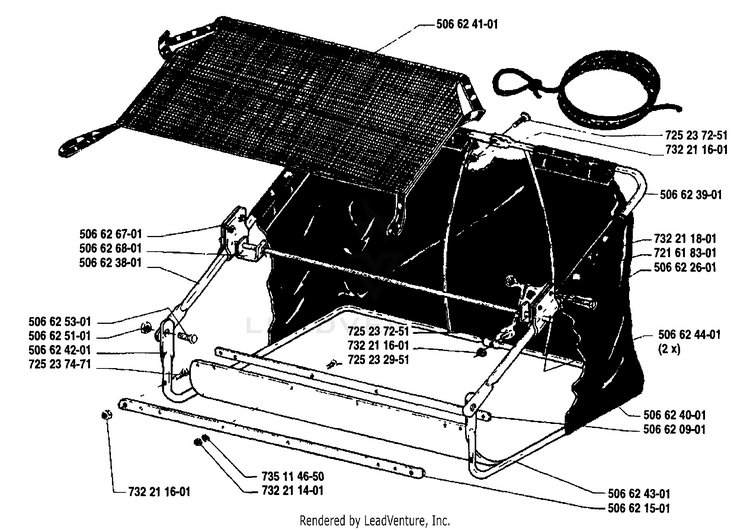

Bag Assembly

...
...
506626701
HOPPER MOUNTING CLAMPS HUS-506626701
...
506626801
BAG RETAINER CLEVIS HUS-506626801
...
506623801
UPPER HOPPER TUBE R-H HUS-506623801
...
506625301
BOLT HEX PATCH 3/8-16X3/4 HUS-534200501
...
506625101
Nuts HUS-596322601
...
506624201
LOWER HOPPER TUBE R-H HUS-506624201
...
725237471
SCREW M6S 6X30 HUS-725237471
...
732211601
LOCKNUT M6 HUS-732211601
...
735114650
SPRING WASHER 5.3X10 HUS-735114650
...
732211401
LOCKNUT M5 HUS-732211401
...
725237251
Curved Head Bolt 1/4-20 x 1" HUS-725237251
...
732211601
LOCKNUT M6 HUS-732211601
...
725232951
SCREW HUS-725232951
...
506624401
HOPPER SUPPORT ROD HUS-506624401
...
506624001
BAG, HOPPER A-F HI-BAG HUS-601000967
...
506620901
SKIRT AND BAG RETAINER HUS-506620901
...
506624301
LOWER HOPPER TUBE L-H HUS-506624301
...
506621501
BAG FRAME STRAP HUS-506621501
...
725237251
Curved Head Bolt 1/4-20 x 1" HUS-725237251
...
732211601
LOCKNUT M6 HUS-732211601
...
506623901
UPPER HOPPER TUBE L-H HUS-506623901
...
732211801
LOCKNUT M8 HUS-732211801
...
721618301
Split Pin HUS-721618301
...
506622601
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
506624101
Wind Screen 38" HUS-506624101
