Husqvarna Solar Mower (2002-02) Solar Mower

Model: Solar Mower (2002-02)

Back To Assemblies

Save Part Not Listed?
product name

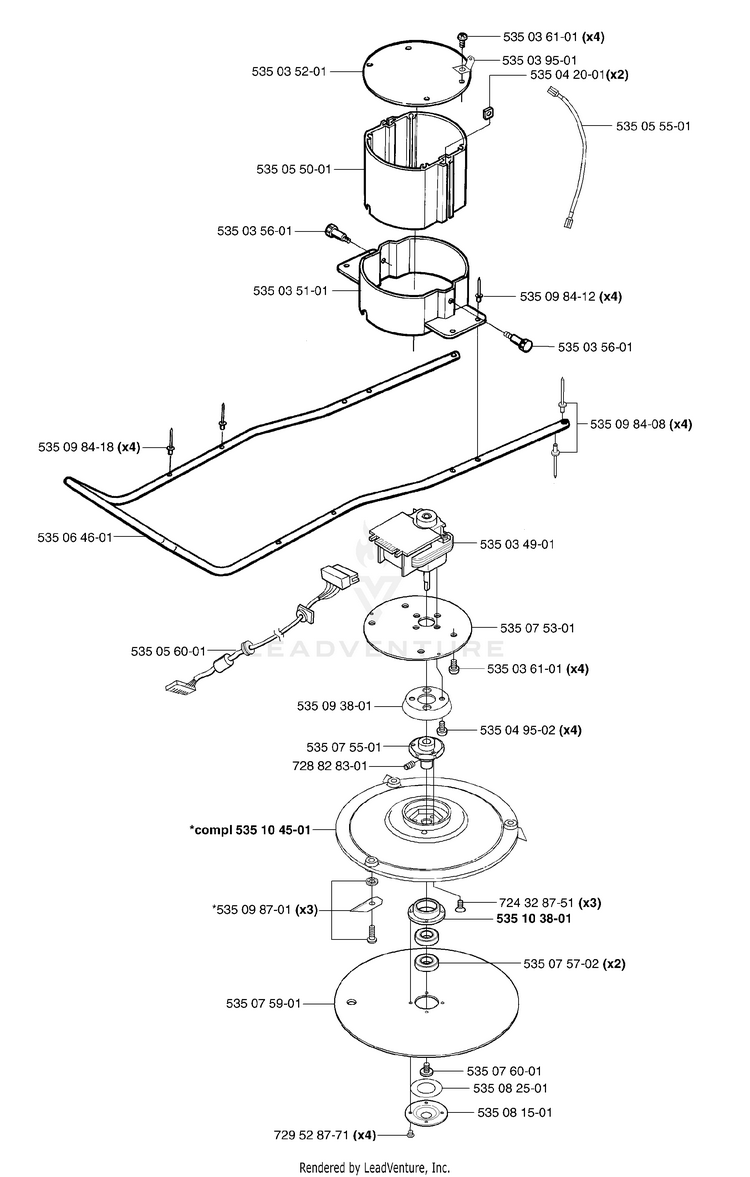

Motor / Frame / Housing / Cutting Disc

...
...
535034901
MOTOR CUTTING HUS-535034901
...
535035101
MOUNT CUTTING MOTOR HUS-535035101
...
535035201
COVER CUTTING MOTOR HUS-535035201
...
535035601
BOLT HEIGHT ADJUSTMENT HUS-535035601
...
535036101
SCREW HUS-535036101
...
535039501
TERMINAL GROUND HUS-535039501
...
535042001
NUT HEIGHT ADJUSTMENT HUS-535042001
...
535049502
SCREW HUS-535049502
...
535055001
HOUSING HUS-535055001
...
535055501
GROUND HUS-535055501
...
535056001
HARNESS HUS-535056001
...
535064601
TUBE FRAME HUS-535064601
...
535075301
COVER CUTTING MOTOR HUS-535075301
...
535075501
HUB CUTTING DISC HUS-535075501
...
535075702
SPACER HUS-535075702
...
535075901
PLATE SKID HUS-535075901
...
535076001
SCREW HUS-535076001
...
535081501
COVER SKID PLATE HUS-535081501
...
535082501
GASKET HUS-535082501
...
535093801
ADAPTER New Part HUS-535093801
...
535098408
RIVET New Part HUS-535098408
...
535098412
RIVET New Part HUS-535098412
...
535098418
RIVET New Part HUS-535098418
...
535103801
HOLDER HUS-535103801
...
535104501
BLADE DISC New Part HUS-535104501
...
724328751
Screw HUS-724328751
...
728828301
Setscrew Hub HUS-728828301
...
729528771
RETAINER HUS-729528771
...
535098701
BLADES (9 EA W/WASHER & SCREW) New Part HUS-535098701
