Husqvarna Solar Mower (2001-01) Solar Mower

Model: Solar Mower (2001-01)

Back To Assemblies

Save Part Not Listed?
product name

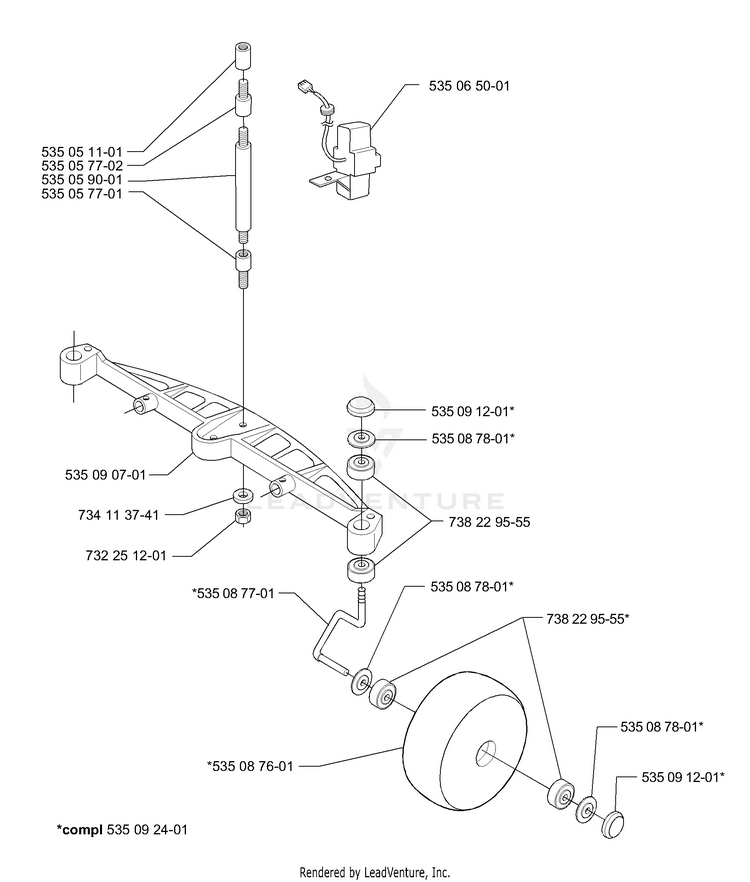

Front Wheel/Axle Assy.

...
...
535051101
SPACER HUS-535051101
...
535057702
DAMPER HUS-535057702
...
535059001
POST FRONT DAMPER HUS-535059001
...
535057701
DAMPER HUS-535057701
...
535090701
BRACKET HUS-535103101
...
734113741
WASHER HUS-734113741
...
732251201
HEXAGON NUT FLANGE M4 A2-70 HUS-588222101
...
535087701
AXLE, FRONT WHEEL HUS-535087701
...
535087601
WHEEL, FRONT HUS-575231701
...
535092401
FRONT WHEEL ASSY W/AXLE HUS-535092401
...
535091201
RETAINER, AXLE CAP HUS-535091201
...
535087801
WASHER, SEALING HUS-535087801
...
738229555
BEARING HUS-738229555
...
535087801
WASHER, SEALING HUS-535087801
...
738229555
BEARING HUS-738229555
...
535087801
WASHER, SEALING HUS-535087801
...
535091201
RETAINER, AXLE CAP HUS-535091201
...
535065001
SENSOR FIELD HUS-535065001
