Husqvarna Solar Mower (2000-02) Solar Mower

Model: Solar Mower (2000-02)

Back To Assemblies

Save Part Not Listed?
product name

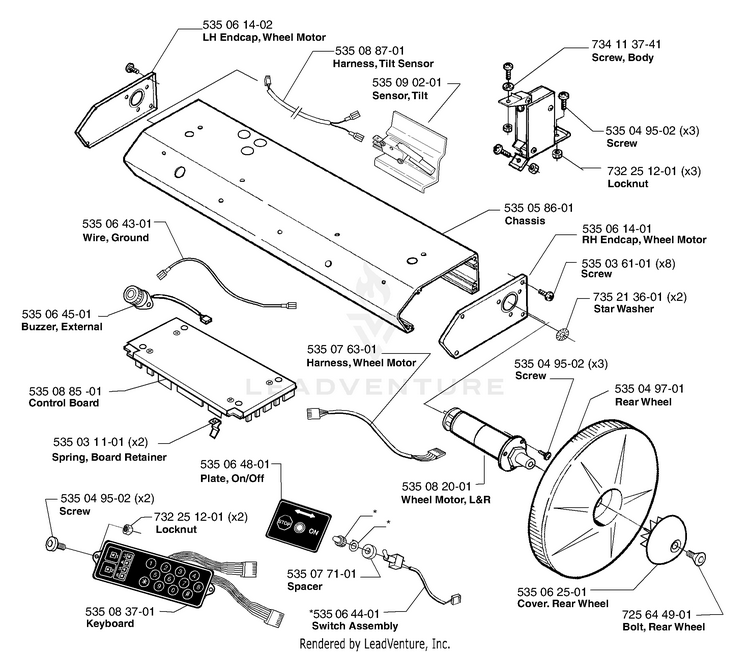

Ground Drive / Control Panel

...
...
535061402
LH END CAP WHEEL HUS-535061402
...
535064301
WIRE GROUND HUS-535064301
...
535064501
BUZZER EXTERNAL HUS-535064501
...
535088501
CONTROL BOARD HUS-535088501
...
535031101
TERMINAL GROUND HUS-535031101
...
535049502
SCREW HUS-535049502
...
732251201
HEXAGON NUT FLANGE M4 A2-70 HUS-588222101
...
535064801
PLATE ON/OFF HUS-535064801
...
535077101
SPACER SWITCH HUS-535077101
...
535083701
KEYBOARD HUS-544338001
...
535064401
SWITCH HUS-535064401
...
535082001
WHEEL MOTOR LH/RH HUS-535082001
...
535062501
COVER REAR WHEEL HUS-535062501
...
535076301
HARNESS HUS-535076301
...
535049502
SCREW HUS-535049502
...
725644901
BOLT REAR WHEEL HUS-725644901
...
535049701
WHEEL REAR HUS-535049701
...
735213601
Lock Washer HUS-735213601
...
535036101
SCREW HUS-535036101
...
535061401
RH END CAP WHEEL HUS-535061401
...
535058601
CHASSIS HUS-535058601
...
732251201
HEXAGON NUT FLANGE M4 A2-70 HUS-588222101
...
535049502
SCREW HUS-535049502
...
734113741
WASHER HUS-734113741
...
535088701
HARNESS, TILT SENSOR HUS-535088701
...
535090201
SENSOR, TILT HUS-535090201
