Husqvarna Snow Blower - 531020604 (1998-09) Snow Blower

Model: Snow Blower - 531020604 (1998-09)

Save Part Not Listed?
product name

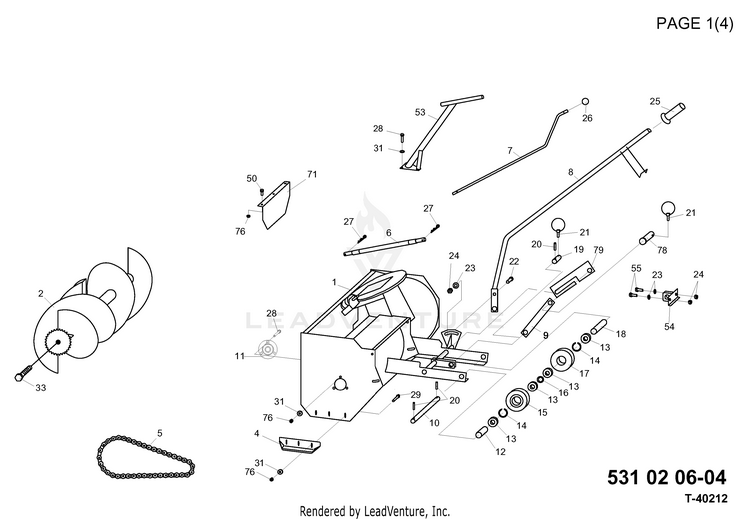

AUGER HOUSING & IMPELLER

...
...
79
MOVEMENT LIMITER HUS-531021181
...
8
BRACKET HUS-531021125
...
12
SPACER HUS-531005260
...
1
FRAME HUS-531021101
...
28
SCREW HUS-531021146
...
13
BEARING HUS-531021138
...
16
SPACER HUS-531005197
...
11
BEARING HUS-531005259
...
14
SPACER HUS-531005198
...
31
WASHER HUS-531021184
...
22
SCREW HUS-531021127
...
21
PIN HUS-531005217
...
2
SCREW HUS-531021102
...
18
SPACER HUS-531005263
...
24
NUT HUS-531021130
...
76
NUT HUS-531021219
...
15
PULLEY HUS-531021139
...
20
PIN HUS-531005216
...
55
SCREW HUS-531021128
...
33
SCREW HUS-531021195
...
9
LEVER HUS-531021104
...
27
PIN HUS-531005143
...
71
PLATE HUS-531005293
...
53
BRACKET HUS-531005279
...
25
HANDLE HUS-531005141
...
19
SHAFT HUS-531005192
...
23
WASHER HUS-531021137
...
54
TENSIONER HUS-531021110
...
7
ROD HUS-531005256
...
10
SHAFT HUS-531005221
...
5
CHAIN HUS-531005254
...
26
HANDLE HUS-531005264
...
29
SCREW HUS-531005266
...
4
PLATE HUS-531005253
...
78
PIN HUS-531021220
...
50
SCREW HUS-531021144
...
17
PULLEY HUS-531005262
...
6
JOINT HUS-531005255

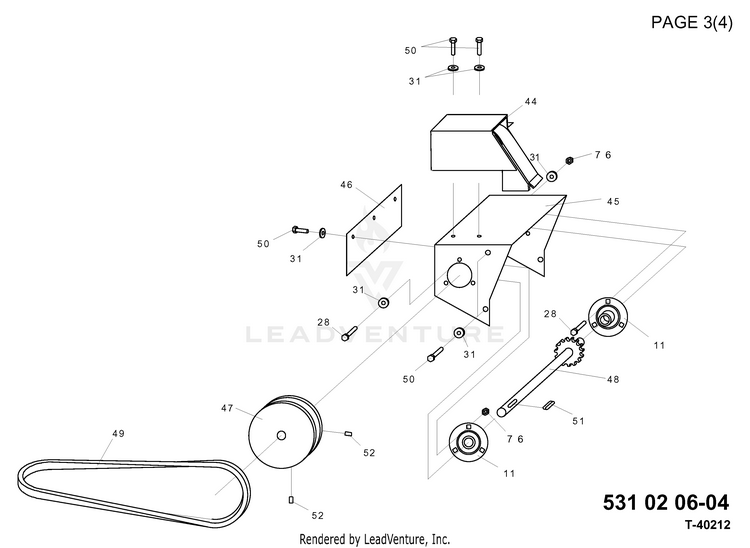

BELT GUARD & PULLEY

...
...
44
PROTECTOR HUS-531021106
...
51
KEY HUS-531005278
...
47
PULLEY HUS-531005275
...
31
WASHER HUS-531021184
...
76
NUT HUS-531021219
...
50
SCREW HUS-531021144
...
11
BEARING HUS-531005259
...
49
BELT A 120 HUS-531005131
...
52
SCREW HUS-531021217
...
45
BRACKET HUS-531021107
...
46
PROTECTOR HUS-531021108
...
28
SCREW HUS-531021146
...
48
SHAFT HUS-531021109

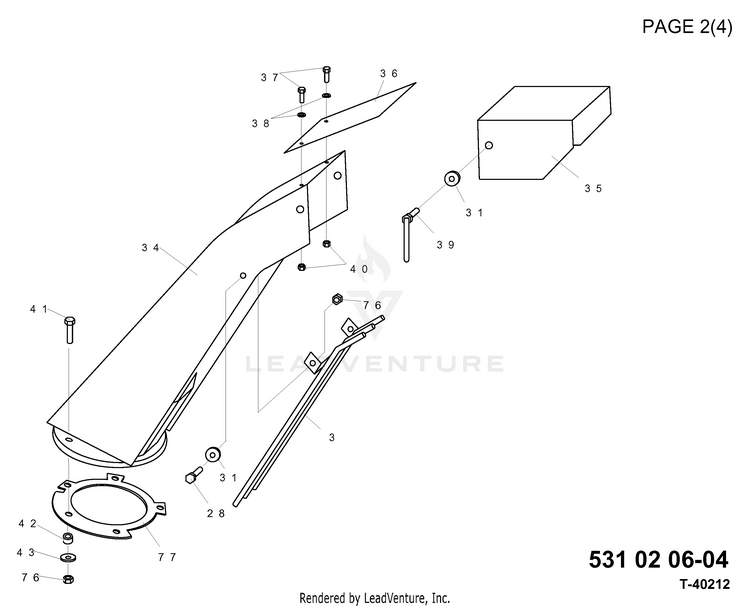

CONTROL PANEL & DISCHARGE CHUTE

...
...
38
WASHER HUS-531021197
...
41
SCREW HUS-531021199
...
76
NUT HUS-531021219
...
31
WASHER HUS-531021184
...
28
SCREW HUS-531021146
...
43
WASHER HUS-531021216
...
36
GUARD HUS-531005269
...
42
COLLAR HUS-531021105
...
35
CHUTE HUS-531005268
...
39
SCREW HUS-531005270
...
77
RING HUS-531021113
...
34
PIPE HUS-531005267
...
40
NUT HUS-531021198
...
3
GUARD HUS-531005252
...
37
SCREW HUS-531021196

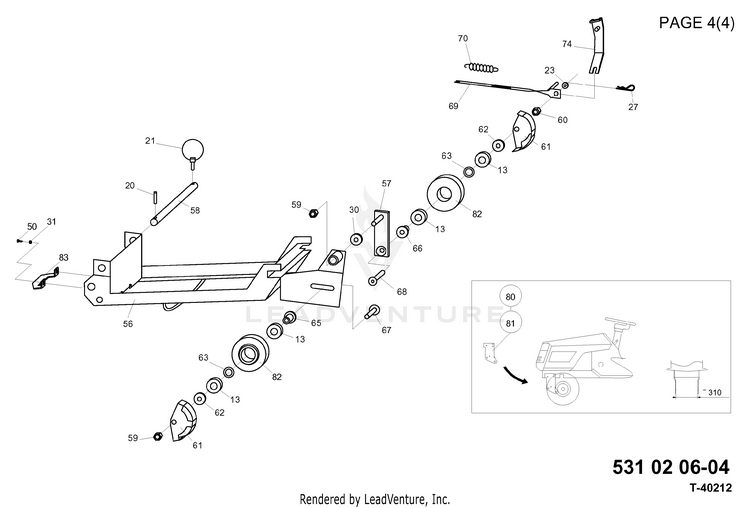

FRAME

...
...
70
SPRING HUS-531005203
...
63
SPACER HUS-531005287
...
61
SUPPORT HUS-531005285
...
13
BEARING HUS-531021138
...
80
PLATE LEFT HUS-531021182
...
23
WASHER HUS-531021137
...
74
LEVER HUS-531021112
...
66
SPACER HUS-531005290
...
31
WASHER HUS-531021184
...
24
NUT HUS-531021130
...
67
SCREW HUS-531005291
...
58
PIN HUS-531021218
...
87
NEEDS DESCRIPTION HUS-531021268
...
82
PULLEY HUS-531005261
...
68
SCREW HUS-531021140
...
57
SUPPORT HUS-531005283
...
83
SUPPORT HUS-531021223
...
50
SCREW HUS-531021144
...
65
SPACER HUS-531005289
...
59
NUT HUS-531021148
...
85
NEEDS DESCRIPTION HUS-531021246
...
21
PIN HUS-531005217
...
88
NEEDS DESCRIPTION HUS-531021270
...
84
NEEDS DESCRIPTION HUS-531021245
...
20
PIN HUS-531005216
...
27
PIN HUS-531005143
...
81
PLATE R HUS-531021183
...
86
SCREW HUS-531021172
...
60
NUT HUS-531021142
...
62
SPACER HUS-531005286
...
69
BELTTENSIONER HUS-531005280
...
56
NEEDS DESCRIPTION HUS-531021273
...
30
SPACER HUS-531005265
