Husqvarna ST 430T Snow Blower

Model: ST 430T

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
50
Covers Throttle Body Cover HUS-597359401
...
17
Throttles HUS-597358201
...
9999
Controls HUS-593084607
...
32
OIL SEAL KIT NON-GENERATOR HUS-532429316
...
92
CENTER VALVE COVER BOLT HUS-587995201
...
59
Shrouds HUS-597360101
...
28
RECOIL HUS-582621501
...
69
STUD.CARB.MOUTING.KIT.414CC HUS-586326701
...
77
BOLT.KIT.RECOIL.LCT.ALL.ENGINE HUS-532432688
...
37
DIPSTK.OIL.BLK.LCTSK4143711.1 HUS-532435534
...
18
IGNITION.COIL.(CDI).291-414CC HUS-532443944
...
49
KIT.OIL.DRAIN.PLUG(SK2089911 HUS-532435495
...
56
Shields HUS-597359901
...
87
KIT.BOLT.CRANKCASE.COVER.414CC HUS-586327001
...
78
STRAP.RETAINING.TUBE.BREATHER. HUS-585771301
...
91
GASKET KIT CRANKSHAFT.LCT HUS-587994104
...
8
FLYWHEEL.EL.ST.SKSN4408.1 HUS-532443900
...
40
NONREMVABLE.OIL.PLUG(SK4143715 HUS-532429242
...
30
Housings HUS-597358601
...
55
OIL PIPE DRAIN EXTENDED.LCT SK HUS-587139901
...
64
COUNTER WEIGHT KIT HUS-532429608
...
31
Covers HUS-597358701
...
9
FLYWHEEL.FAN(SK4144000) HUS-532429306
...
43
BREATHER TUBE LCT 291/369/414 HUS-587179601
...
75
SHIELD.U/FYWHL.CHARG(SKSN4604) HUS-532429232
...
95
Filters HUS-597360601
...
51
SHIELD.CYLINDER.SNOW(SK4141010 HUS-532429231
...
29
RECOIL HUS-582621501
...
2
PUSH ROD TAPPET KIT HUS-532429606
...
13
Mufflers HUS-597357901
...
82
SPACER.CARBURETOR.414CC.LCT HUS-585020501
...
60
Charging Station HUS-597360301
...
86
KIT.BOLT.CYLINDER.HEAD.(4PC) HUS-586327401
...
9997
Shrouds HUS-597360201
...
85
STRAINER.FUEL.TANK.LCT.208CC HUS-586325601
...
38
ROCKER ARM KIT HUS-532429612
...
23
Fuel Hoses HUS-597358301
...
10
Crankshafts HUS-597484501
...
5
Pistons HUS-597484401
...
34
SPARK.PLUG.BOOT.SNW,SKSN4691.1 HUS-532436966
...
20
PLUG.SPARK F6RTC HUS-532437558
...
20
SPARK.PLUG(2083810) HUS-532424939
...
36
KIT.ENGINE GASKET.LCT.414CC HUS-532429609
...
9998
Shrouds HUS-597359301
...
16
Caps HUS-597358101
...
7
CAMSHAFT(SK4141600) HUS-532429313
...
96
Pumps HUS-597360701
...
81
KEYS.FLYWHEEL.208/414CC.5PACK HUS-585297201
...
65
TAPPET KIT.LCT.SK2911005.1 HUS-581372901
...
14
Tanks HUS-597358001
...
62
HANDLE.RECOIL.DELUXE.LCT HUS-532443899
...
72
Decals HUS-597360401
...
35
Starters HUS-597359201
...
3
VALVE.COVER.LCT.414CC. HUS-532429303
...
1
Cylinder HUS-597484301
...
33
Plates HUS-597358801

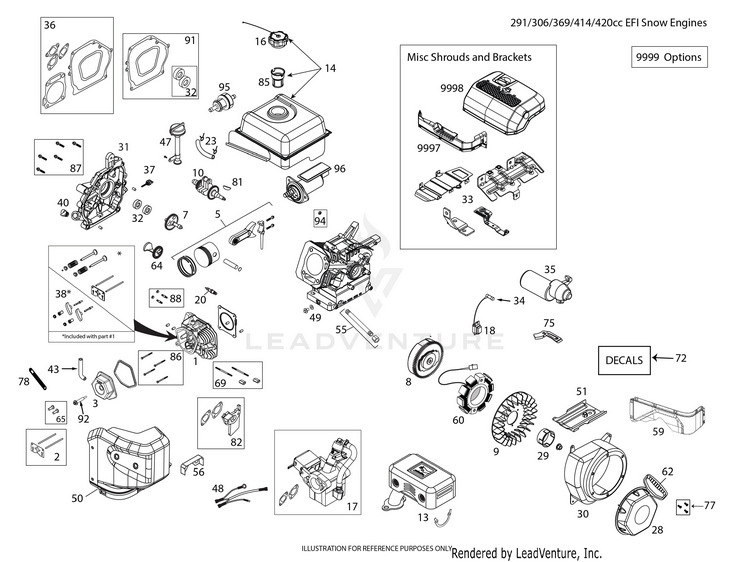

Schematic Image Zoomed
