Husqvarna ST 427 Snow Blower

Model: ST 427

Back To Assemblies

Save Part Not Listed?
product name

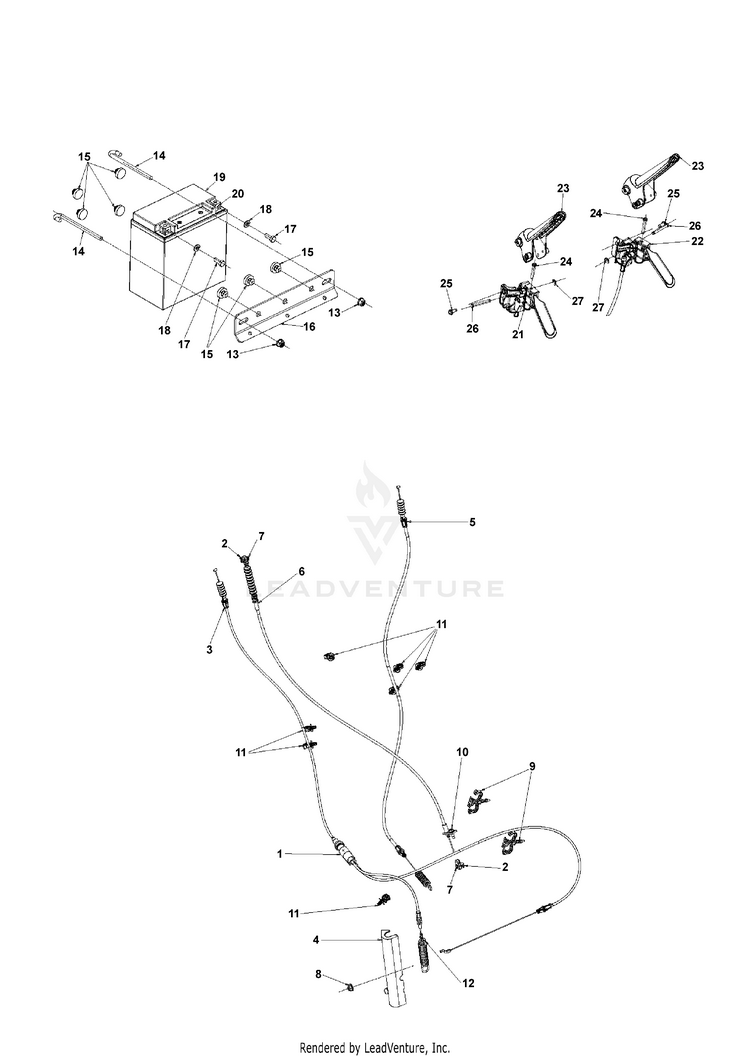

CONTROL PANEL & DISCHARGE CHUTE 3

...
...
5
CABLE ASSY DRIVE HUS-589289801
...
27
E-RING HUS-812000014
...
16
Strap HUS-590942902
...
6
CABLE HYDRO SPEED HUS-590026601
...
19
Batteries HUS-589819503
...
23
Levers HUS-589803801
...
8
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
1
CLIP.CABLE.BLK HUS-532197991
...
2
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
26
PIN.GROOVED HUS-583473901
...
22
Cables HUS-589289504
...
11
CABLE, 1/4 BLACK FIR TREE HUS-592857401
...
24
SCREW HEX_WASH_13-16 X 1.50_H HUS-581329501
...
3
CABLE IMPELLER HUS-579763601
...
25
SCREW 14-20 X 5/8 HUS-817060410
...
15
GROMMET.BUMPER HUS-585989301
...
7
PIN CLEVIS .25 X ..4375 HUS-590800901
...
9
CLIP.CONDUIT.DOUBLE LOOP HUS-584652201
...
4
COVER AUGER CABLE HUS-589265201
...
10
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
21
Cables HUS-589289503
...
13
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
14
HOOK.J.BATTERY HUS-588839401
...
12
SPRING EXTENSION; AUGER EXTENS HUS-594716501
...
18
WASHER 1/4 INT TOOTH HUS-539990053
...
17
Bolts HUS-596320101
