Husqvarna ST 427 Snow Blower

Model: ST 427

Back To Assemblies

Save Part Not Listed?
product name

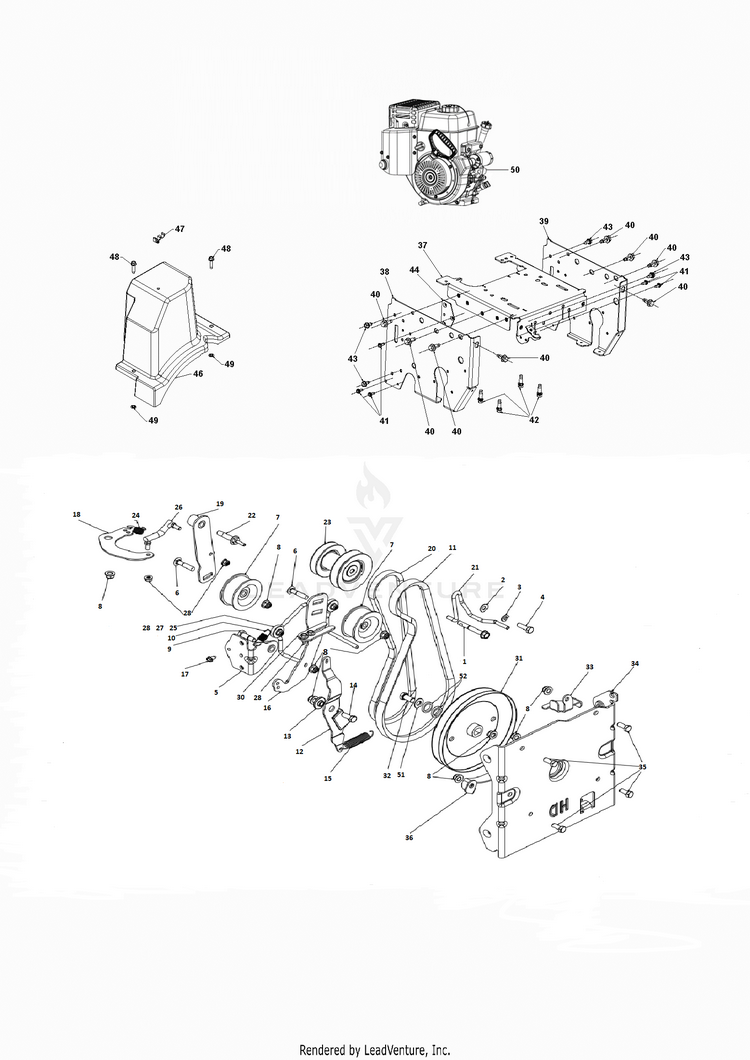

CHASSIS, ENGINE & PULLEYS

...
...
40
SCREW HEXAGON HEAD FLANGE 3/8- HUS-595517901
...
35
SCREW HEXAGON HEAD SCREW 5/16- SCREW - 5/16-18 X .75 HUS-596030501
...
15
SPRING EXTENSION - BRAKE HUS-579763501
...
20
BELT 4L DRIVE HUS-589290601
...
25
GUIDE BELT - HYDRO 2 WITH FAN HUS-589760701
...
27
WASHER HUS-513918900
...
4
SCREW SCREW - 5/16-24 X 1.0 HUS-874610516
...
23
PULLEY 5L HYDRO HUS-598816002
...
28
NUT FLG, NYLOCK, 1/4-20 GR G C FLANGE LOCKNUT 1/4-20 HUS-582478602
...
18
Bell Cranks HUS-589289902
...
8
NUT HEXAGON FLANGE 5/16-18 ST FLANGE NUT - 5/16-18 HUS-594944401
...
5
BRACKET.WELDMANT.IDLER ARM HUS-546125702
...
34
NEEDS DESCRIPTION HUS-501595403
...
21
Belt Keepers HUS-598644501
...
19
ARM DRIVE IDLER BLACK ZINC PLA HUS-589290502
...
37
Frames HUS-583808002
...
2
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
10
SCREW HEX HEAD SHOULDER HUS-589263601
...
42
BOLT 3/8-16X1-1/8 HUS-532150406
...
1
BOLTS BOLT - 5/16-24 X 2.375 HUS-598758701
...
38
Frames HUS-583808403
...
9
SCREW HEX HEAD SHOULDER SCREW - SHOULDER 3/8 HUS-589263601
...
16
ARM IDLER BLACK ZINC HUS-589262902
...
36
BRACKET.BELT.KEEPER.LOWER.BLAC HUS-581632002
...
14
BOLT HEXAGON BOLT 5/16-18 X 7/ BOLT - 5/16-18 X .875 HUS-596322201
...
47
PUSH CLIP HUS-532145006
...
24
SPRING EXTENSION - DRIVE HUS-589481601
...
26
LINK ASSY DRIVE IDLER HUS-590720701
...
32
SCREW HEXAGON HEAD FLANGE 3/8- SCREW - FLANGE HEAD CAP WITH DOG POINT, 3/8-16 HUS-595517901
...
52
WASHER.SPACER.MANDREL For 97052940100, (See Husqvarna Engine IPL for service parts) HUS-532187690
...
51
WASHER PLAIN WASHER 3/8 X 0.08 For 97052940100, (See Husqvarna Engine IPL for service parts) HUS-596565301
...
29
Guides HUS-592917802
...
50
ENGINE RATO 389CC (EFI) For 97052940100, (See Husqvarna Engine IPL for service parts) HUS-598610402
...
12
ARM IMPELLER BRAKE HUS-579763301
...
39
Frames HUS-583808404
...
50
ENGINE LCT 369CC 11HP E-GOV For 961930103, 961930130, (See LCT Engines IPL for service parts) HUS-592919001
...
6
BOLT 5/16-18 CARRIAGE 1.5L BOLT - 5/16-18 X 1.50 CARRIAGE HUS-589284501
...
22
GUIDE BELT, SHOULDER SCREW HUS-589290801
...
43
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
17
SCREW SCREW 1/4-20 X .50 HUS-817060408
...
48
SCREW HEX WASH THDRL BLK 1_4- HUS-585691101
...
31
PULLEY IMPELLER DD 5L HD HUS-589263801
...
13
BUSHING.BRAKE.ARM HUS-587343701
...
46
COVER BELT, HIGH HUS-585771101
...
41
SCREW 14-20 X 5/8 HUS-817060410
...
44
BRACKET NUT BLACK ZINC PLATE HUS-590044602
...
30
HEX.WASHER.HEAD 1/4-20 X .65 SCREW 1/4-20 X .65 WITH DOG POINT HUS-585517801
...
7
Pulleys HUS-589262702
...
49
PALNUT 1/4 HUS-532423062
...
33
GUIDE BZP HUS-589262505
...
11
BELT 5L 39.15L HUS-589262602
...
3
WASHER SPRING LOCK WASHER WITH HUS-596238801
