Husqvarna ST 427 Snow Blower

Model: ST 427

Back To Assemblies

Save Part Not Listed?
product name

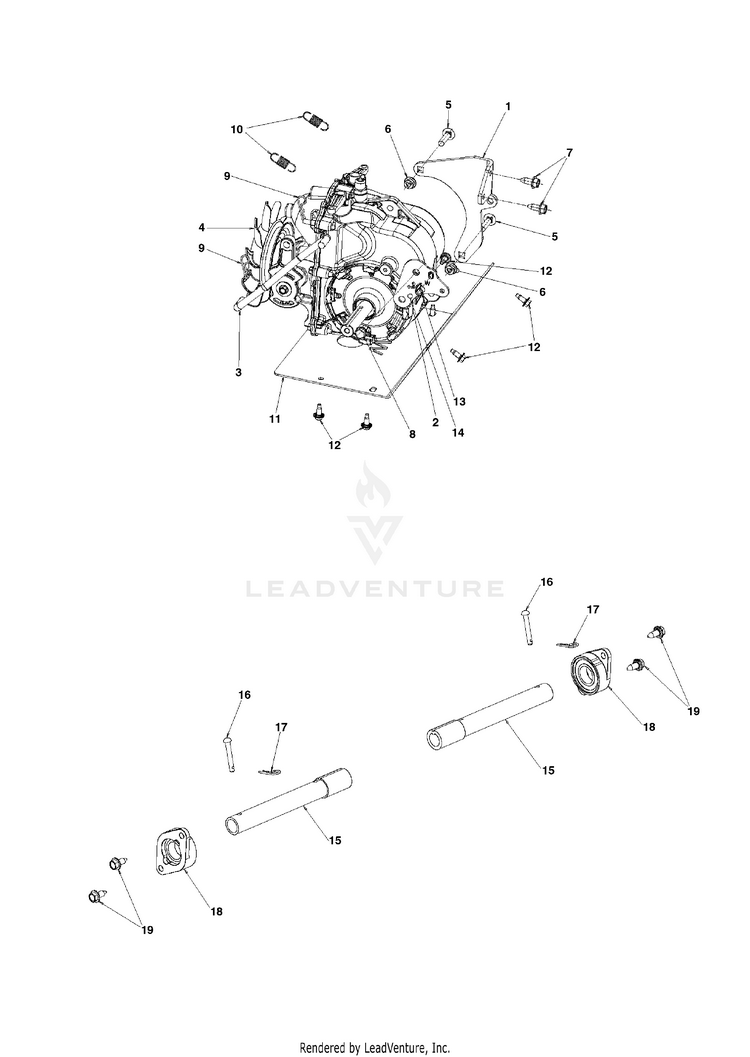

DRIVE

...
...
7
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
10
SPRING IDLER RETURN HUS-589263701
...
14
WASHER HUS-819091214
...
15
AXLE WHEEL HUS-589289701
...
6
NUT.LOCK.5/16-18 HUS-532751153
...
4
TRANSMISSION HYDRAULIC POWER S HUS-589288701
...
12
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
9
SPRING RETAINER HUS-532169675
...
17
RETAINER M HUS-532004497
...
19
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
16
RIVET,DRILLED HUS-532126875
...
11
Covers HUS-583808502
...
1
Mounts HUS-589288802
...
3
ROD SPEED HUS-589289301
...
5
BOLT.CARRIAGE.5/16-18 HUS-872110510
...
8
BOLT SHOULDER 3/8-20 X.25 HUS-595517601
...
18
CARRIER BEARING HUS-590000601
...
2
Bell Cranks HUS-589289102
...
13
Nuts HUS-597597101
