product name

Husqvarna ST 427 Snow Blower

Model: ST 427

Back To Assemblies

Save Part Not Listed?
product name

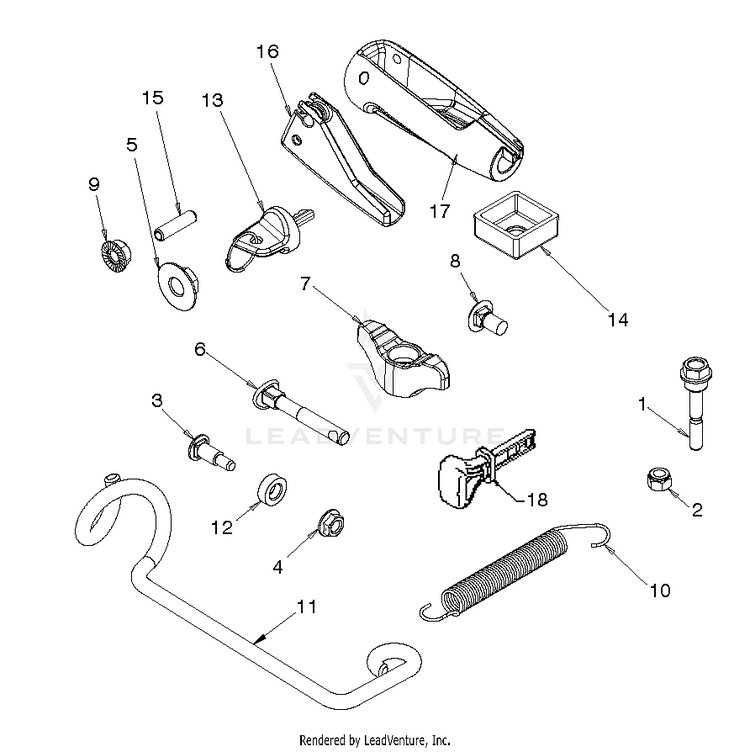

ACCESSORIES

...
...
11
SUPPORT ROTATION CABLE For 96193010300 HUS-581897301
...
11
Supports For 96193013001 HUS-596976801
...
3
BOLT.CARR.W.3125 SHLDR..25-20 HUS-501417301
...
2
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
5
NUT.HEX.FLANGE.LOCK BLK 3/8-16 HUS-585691001
...
8
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
18
KEY SET(2 KEYS) SKSN0407.1 HUS-532443059
...
6
BOLT.CARRIAGE.5/16-18 X 2.25 HUS-588059901
...
7
HANDLE.KNOB.BLACK HUS-532185577
...
12
WASHER.NYLON.326 X.625 X.205 HUS-501417401
...
10
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
15
PIN.ROLL.3/16 X 1" HUS-532001572
...
13
KEY IGNITION, WITH UMBRELLA HUS-591070601
...
9
Hardware HUS-596040501
...
16
Levers HUS-589796001
...
4
NUT.HEX.LRG.FLANGE.1/4-20.LOCK HUS-585691401
...
17
Knobs HUS-589801101
...
1
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
14
RETAINER CHUTE HUS-591087401
