Husqvarna ST 427 Snow Blower

Model: ST 427

Back To Assemblies

Save Part Not Listed?
product name

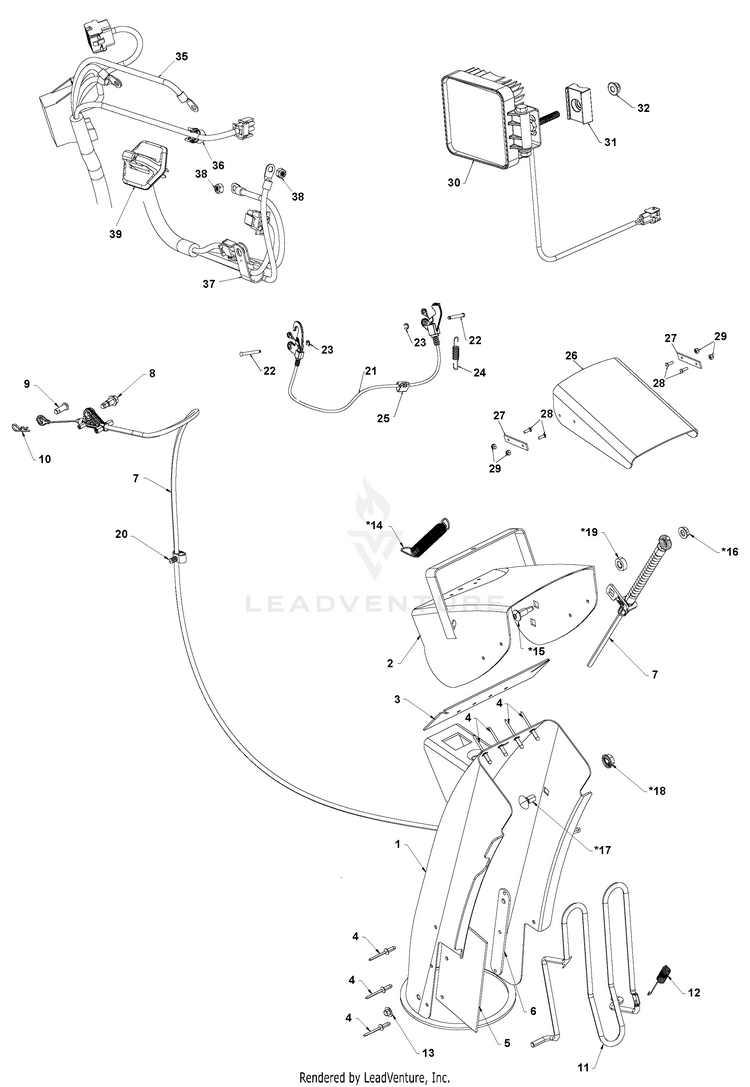

CONTROL PANEL & DISCHARGE CHUTE

...
...
32
NUT HEXAGON FLANGE 5/16-18 ST HEX HD_5/16-18 FLANGE NYLOCK HUS-594944401
...
2
DEFLECTOR ASSEMBLY RIVETED HUS-590518207
...
6
NEEDS DESCRIPTION RETAINER HUS-419822X431
...
9
PIN CLEVIS .25 X ..4375 HUS-590800901
...
13
PAL NUT PM For 96193010300 HUS-582935201
...
*19
WASHER.NYLON.326 X.625 X.205 HUS-501417401
...
23
E-RING HUS-812000014
...
8
BOLT SHOULDER_1/4-20_TRILOB HUS-581726101
...
27
STRAP.DEFLECTOR.SHEILD HUS-532435831
...
26
SHIELD.DEFLECTOR.BLACK.SNOW HUS-532421138
...
7
Controls HUS-598450501
...
4
RIVET BLIND POP RIVET HUS-532128415
...
31
MOUNTING BRACKET LIGHT MOUNTIN HUS-590439801
...
35
HARNESS HARNESS HUS-529360401
...
22
PIN.GROOVED HUS-583473901
...
21
CABLE INTERLOCK CONTROL ACETAL HUS-593853401
...
11
GUARD ROD CHUTE GUARD SHORT CL For 96193010300 HUS-593622201
...
5
SHIELD.SNOW.CHUTE SHIELD HUS-532430324
...
20
CLIP.ROUTING DUAL HUS-532181580
...
10
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
*14
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
36
CLIP CONVOLUTED TUBE, 1/4 BLAC CLIP HUS-595271701
...
37
CLIP.CABLE.BLK CLIP HUS-532197991
...
3
SEAL.DEFLECTOR SEAL HUS-532420325
...
24
NEEDS DESCRIPTION HUS-581151202
...
*18
Hardware HUS-596040501
...
12
SPRING.CHUTE.GUARD For 96193010300 HUS-532435616
...
38
NUT LOCK NUT M6 NYLOC INSERT H NUT HUS-597434101
...
*15
BOLT.CARR.W.3125 SHLDR..25-20 HUS-501417301
...
30
SERVICE KIT LIGHT SNOW LED Fits 97052930100 HUS-535543501
...
39
Lifts COVER HUS-597651301
...
*17
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
*16
NUT.HEX.LRG.FLANGE.1/4-20.LOCK HUS-585691401
...
28
SCREW.MACHINE.8-32 X 1/2-BLK HUS-586118001
...
1
DEFLECTOR ASSEMBLY RIVETED HUS-590518207
...
29
NUT.HEX.NYLOCK HUS-586118101
...
25
CLIP.CABLE.BLK HUS-532197991
