Husqvarna ST 424 Snow Blower

Model: ST 424

Back To Assemblies

Save Part Not Listed?
product name

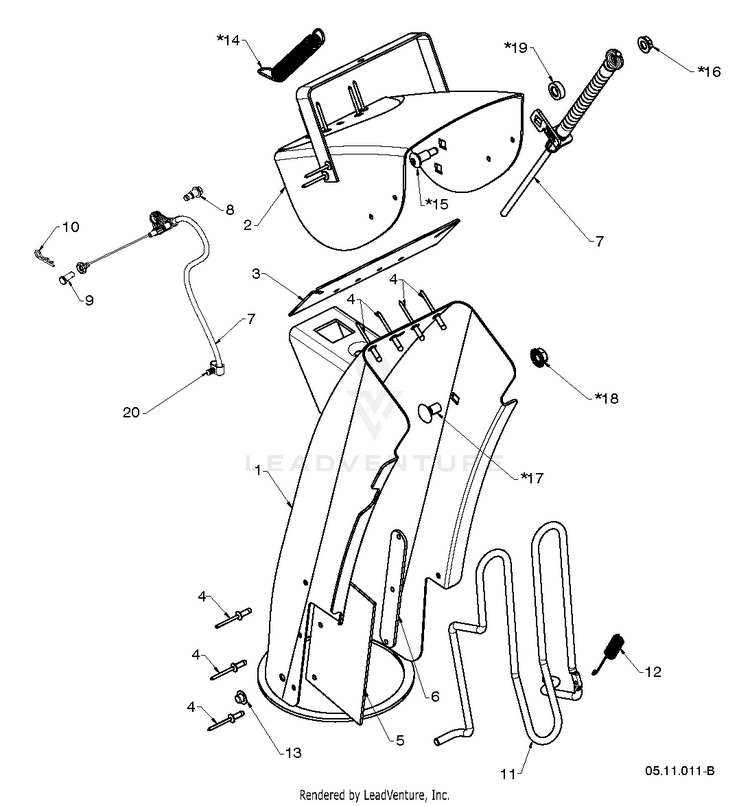

CONTROL PANEL & DISCHARGE CHUTE 22

...
...
11
GUARD ROD CHUTE GUARD SHORT CL For 96193010200 HUS-593622201
...
10
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
9
PIN CLEVIS .25 X ..4375 HUS-590800901
...
20
CLIP.ROUTING DUAL HUS-532181580
...
5
SHIELD.SNOW.CHUTE SHIELD HUS-532430324
...
*14
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
13
PAL NUT PM For 96193010200 HUS-582935201
...
7
CABLE CONTROL.CHUTE.DEFLECTOR. HUS-590587002
...
4
RIVET BLIND POP RIVET HUS-532128415
...
*18
Hardware HUS-596040501
...
2
DEFLECTOR ASSEMBLY RIVETED DEFLECTOR HUS-590518207
...
1
DEFLECTOR ASSEMBLY RIVETED HUS-590518207
...
*17
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
12
SPRING.CHUTE.GUARD For 96193010200 HUS-532435616
...
6
RP STRAP.SHEILD.RETAINER RETAINER HUS-532435776
...
*19
WASHER.NYLON.326 X.625 X.205 HUS-501417401
...
3
SEAL.DEFLECTOR SEAL HUS-532420325
...
8
BOLT SHOULDER_1/4-20_TRILOB HUS-581726101
...
*15
BOLT.CARR.W.3125 SHLDR..25-20 HUS-501417301
...
*16
NUT.HEX.LRG.FLANGE.1/4-20.LOCK HUS-585691401
