Husqvarna ST 424 Snow Blower

Model: ST 424

Back To Assemblies

Save Part Not Listed?
product name

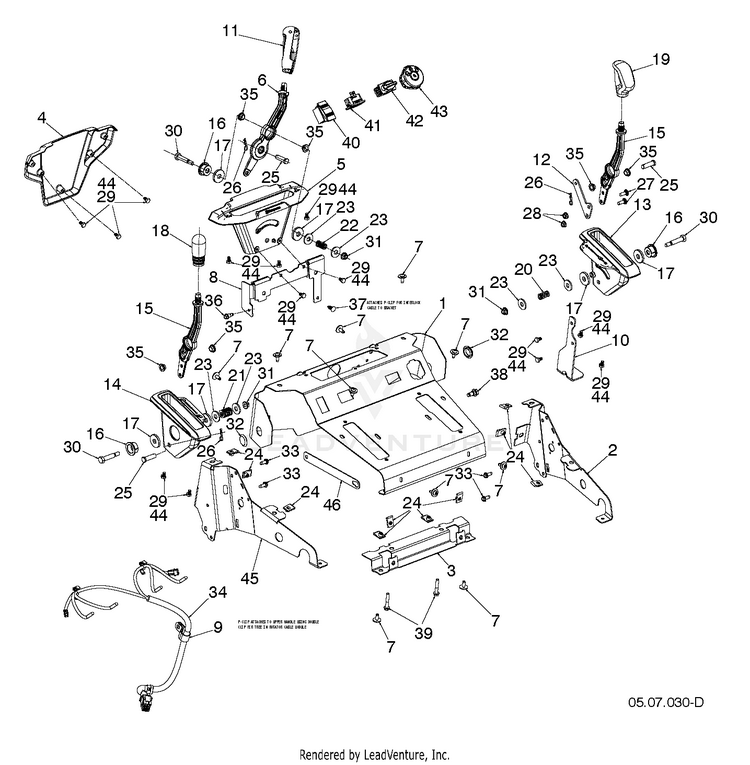

CONTROL PANEL & DISCHARGE CHUTE 20

...
...
2
Consoles HUS-589626804
...
27
BOLT CUP HEAD SQUARE NECK BOLT HUS-596238401
...
20
Springs HUS-589800501
...
5
Brackets HUS-589754301
...
33
SCREW 14-20 X 5/8 HUS-817060410
...
18
Knobs HUS-589796301
...
17
Pads HUS-589796201
...
26
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
23
Washers HUS-597367401
...
24
NUT.U-CHNL.1/4-20.550DP.350PNL HUS-532417693
...
28
NUT.HEX.FLANGE.1/4 For 96193010200 HUS-532191730
...
9
CLIP.CABLE.BLK HUS-532197991
...
1
Consoles HUS-589626402
...
22
Springs HUS-593075101
...
11
Knobs HUS-589801101
...
6
LEVER CHUTE ROTATOR 400S CHUTE HUS-596924101
...
28
NUT HEXAGON FLANGE 5/16-18 ST For 96193012901 HUS-594944401
...
14
Brackets HUS-589754001
...
12
Levers HUS-590774701
...
36
BOLT SHOULDER_1/4-20_TRILOB HUS-581726101
...
34
Harnesses HUS-593079201
...
45
Consoles HUS-589626803
...
15
Levers HUS-589754401
...
43
SWITCH IGNITION 3 POSITION 6-W HUS-594721801
...
46
Braces HUS-597489202
...
29
Nuts HUS-597425501
...
19
Knobs HUS-589796401
...
44
Washers HUS-597425701
...
32
PLUG 7/8 HUS-593084201
...
38
SHOULDER BOLT 5/16-18TT HUS-532170165
...
8
Brackets HUS-589795901
...
41
HOUR METER SNAPIN, RECTANGULAR HUS-596515501
...
13
Brackets HUS-589754101
...
25
Pins HUS-590791701
...
3
Brackets HUS-589626902
...
16
Buttons HUS-589796101
...
31
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
30
Bolts HUS-593092001
...
4
Brackets HUS-589754201
...
35
Bushings HUS-590790601
...
7
Screws HUS-589772201
...
21
Springs HUS-596918401
...
39
SCREW.HEXCAP.1/4X-20X1.500 HUS-501406601
...
42
SWITCH 3 POSITION ROTARY HUS-591066501
...
40
SWITCH HEATED GRIP BLK HUS-585805001
...
10
Brackets HUS-589796501
...
37
FASTENER.PUSH.O.250X0.783 HUS-532428124
