product name

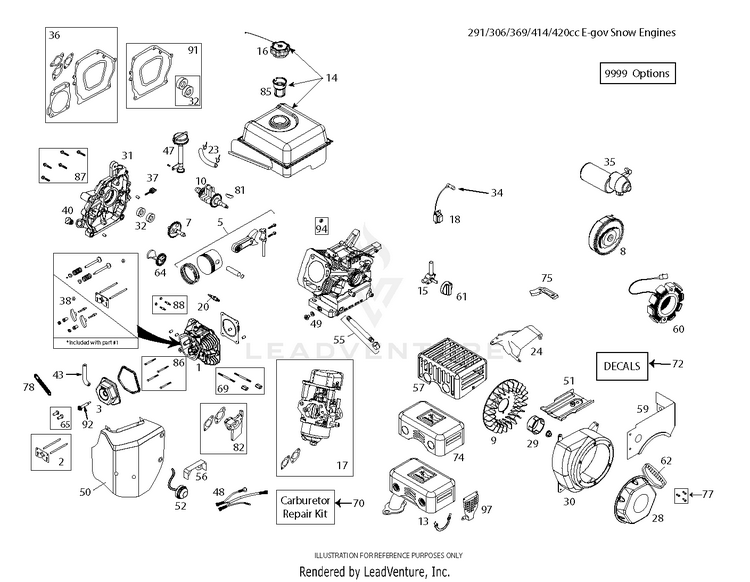

Husqvarna ST 424 Snow Blower

Model: ST 424

Back To Assemblies

Save Part Not Listed?
product name

ENGINE 2

...
...
82
Spacers HUS-597383201
...
94
SEAL GOVERNOR SHAFT OIL.LCT HUS-588485501
...
7
CAMSHAFT.LCT.291CC HUS-532429253
...
9
FLYWHEEL.FAN HUS-532429238
...
28
STARTER RECOIL.291/306CC.LCT HUS-582621101
...
91
GASKET KIT CRANKSHAFT.LCT HUS-587994103
...
14
FUEL TANK ASSY - SNOW (291CC) HUS-532434889
...
10
CRANKSHAFT HUS-590922201
...
47
HIGHOIL.FILL.ASSY.KIT(SKSN4911 HUS-532429237
...
2
KIT.PUSH.ROD.LCT.291CC HUS-581618401
...
64
COUNTER WEIGHT KIT HUS-532429608
...
78
STRAP.RETAINING.TUBE.BREATHER. HUS-585771301
...
20
SPARK.PLUG(2083810) F7RTC, 424939 HUS-532424939
...
36
ENGINE.GASKET.KIT(SK2914300) HUS-532429615
...
35
Starters HUS-597382901
...
81
KEYS.FLYWHEEL.136/291CC.5PACK HUS-585297202
...
70
CARBURETTOR REPAIR KIT 291CC/4 HUS-580353701
...
38
ROCKER ARM KIT HUS-532429612
...
72
Decals HUS-597383501
...
31
Covers HUS-596826801
...
65
TAPPET KIT.LCT.SK2911005.1 HUS-581372901
...
85
STRAINER.FUEL.TANK.LCT.208CC HUS-586325601
...
17
Carburetors HUS-597382101
...
48
Controls HUS-597382501
...
62
HANDLE.RECOIL.DELUXE.LCT HUS-532443899
...
88
STUD.MUFFLER.KIT.LCT HUS-586326801
...
24
Brackets HUS-597382201
...
1
CYLINDER.HEAD.ASSY(SK2911000) HUS-532429254
...
13
MUFFLER ASSY LCT SNO HUS-587198701
...
97
GUARD.EXHAUST HUS-590046601
...
34
SPARK.PLUG.BOOT.SNW,SKSN4691.1 HUS-532436966
...
92
CENTER VALVE COVER BOLT HUS-587995201
...
43
BREATHER TUBE LCT 291/369/414 HUS-587179601
...
15
FUEL.PETCOCK.SNOW(SKSN4900) HUS-532429234
...
8
FLYWHEEL.EL.ST.SKSNO2401.1 HUS-532443895
...
59
FUEL TANK SKIRT.LCT.291/306CC HUS-582621401
...
29
STARTER CUP.LCT.291/306CC HUS-582621301
...
86
KIT.BOLT.CYLINDER.HEAD.(4PC) HUS-586327401
...
48
Harnesses HUS-597382601
...
40
NONREMVABLE.OIL.PLUG(SK4143715 HUS-532429242
...
56
SHIELD.VAPOR(SKSN4606) HUS-532429213
...
5
PISTON.AND.ROD.ASSY(SK2911400) HUS-532429258
...
51
SHIELD.CYLINDER.SNOW(SK4141010 HUS-532429231
...
18
COIL.IGN.CDI.SKSN2403.1 HUS-532443897
...
3
VALVE.COVER.LCT.414CC. HUS-532429303
...
74
MUFFLER SHIELD HUS-587375301
...
87
KIT.7-BOLT.CRANKCASE.CVR.291CC HUS-586327201
...
37
DIPSTK.OIL.BLK.LCTSK4143711.1 HUS-532435534
...
16
FUEL CAP OVERSIZED CLICK STYLE HUS-532424942
...
75
WIRE GUARD HUS-590922501
...
50
Boxes For 96193010200 HUS-597383301
...
48
Harnesses HUS-597382701
...
55
OIL PIPE DRAIN EXTENDED.LCT SK HUS-587139901
...
61
FUEL KNOB-SNOW HUS-532432752
...
9999
KIT.BOLT.LCT.SK9990.1 HUS-579806401
...
32
OIL.SEAL.KIT(SK2913900) HUS-532429283
...
20
PLUG.SPARK F6RTC HUS-532437558
...
50
Carburetors For 96193012901 HUS-597414801
...
60
Charging Station HUS-597360301
...
77
BOLT.KIT.RECOIL.LCT.ALL.ENGINE HUS-532432688
...
9999
HIGH.ALTITUDE.JET.6000FT ANDUP HUS-586326401
...
52
PRIMER BULB.W/HOSE.LCT. HUS-595079601
...
30
BLOWER HOUSING.LCT.291/306CC W HUS-582621201
...
23
FUEL HOSE KIT HUS-532432146
...
69
STUD.CARB.MOUTING.KIT.291CC HUS-586326601
...
49
KIT.OIL.DRAIN.PLUG(SK2089911 HUS-532435495
...
57
Guards HUS-597383001
