Husqvarna ST 424 Snow Blower

Model: ST 424

Back To Assemblies

Save Part Not Listed?
product name

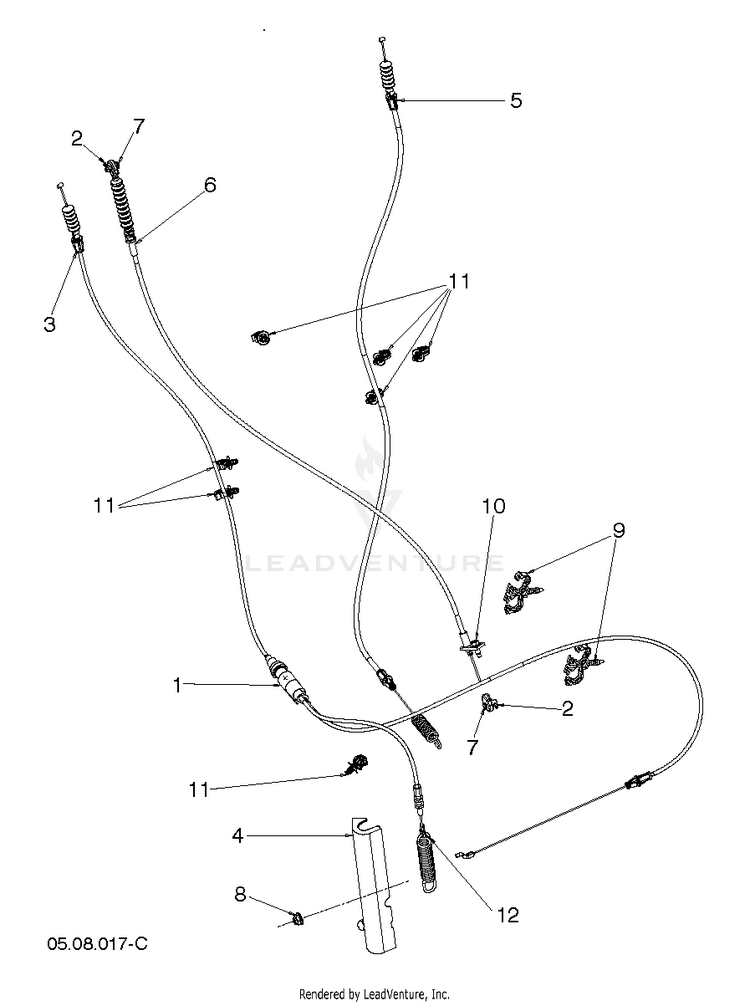

CONTROL PANEL & DISCHARGE CHUTE 10

...
...
8
NUT HEXAGON FLANGE 5/16-18 ST For 96193012901 HUS-594944401
...
11
CABLE, 1/4 BLACK FIR TREE HUS-592857401
...
1
CLIP.CABLE.BLK HUS-532197991
...
9
CLIP.CONDUIT.DOUBLE LOOP HUS-584652201
...
3
CABLE IMPELLER HUS-579763601
...
8
NUT HEXAGON FLANGE 5/16-18 ST For 96193010200 HUS-594944401
...
12
SPRING EXTENSION; AUGER EXTENS HUS-594716501
...
10
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
7
PIN CLEVIS .25 X ..4375 HUS-590800901
...
2
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
5
CABLE ASSY DRIVE HUS-589289801
...
4
COVER AUGER CABLE HUS-589265201
...
6
CABLE HYDRO SPEED HUS-590026601
