Husqvarna ST 424 Snow Blower

Model: ST 424

Back To Assemblies

Save Part Not Listed?
product name

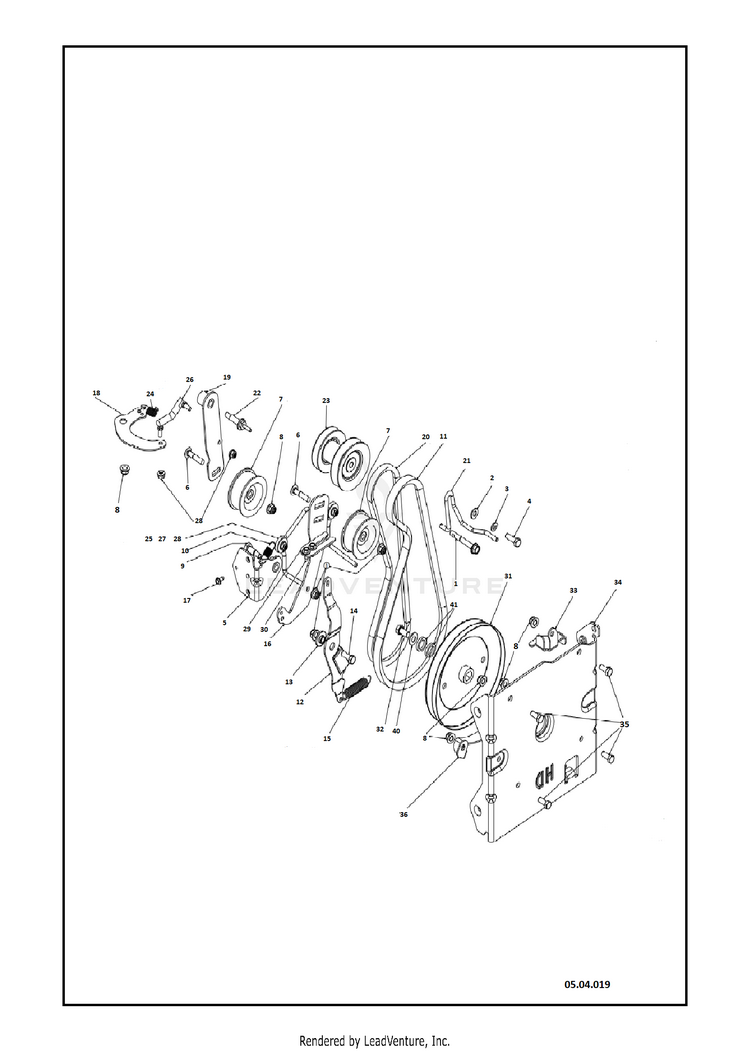

CHASSIS 2

...
...
18
Bell Cranks HUS-589289902
...
28
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
1
BOLTS HUS-598758701
...
13
BUSHING.BRAKE.ARM HUS-587343701
...
6
BOLT 5/16-18 CARRIAGE 1.5L HUS-589284501
...
34
NEEDS DESCRIPTION HUS-501595403
...
10
SPRING IDLER RETURN HUS-589263701
...
14
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
35
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
26
LINK ASSY DRIVE IDLER HUS-590720701
...
32
SCREW HEXAGON HEAD FLANGE 3/8- HUS-595517901
...
41
WASHER.SPACER.MANDREL For 970529201 HUS-532187690
...
7
Pulleys HUS-589262702
...
9
SCREW HEX HEAD SHOULDER HUS-589263601
...
21
Belt Keepers HUS-598644501
...
16
ARM IDLER BLACK ZINC HUS-589262902
...
23
PULLEY 5L HYDRO HUS-598816002
...
4
SCREW HUS-874610516
...
22
GUIDE BELT, SHOULDER SCREW HUS-589290801
...
15
SPRING EXTENSION - BRAKE HUS-579763501
...
11
BELT 5L 39.15L HUS-589262602
...
29
Guides HUS-592917802
...
2
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
20
BELT 4L DRIVE HUS-589290601
...
12
ARM IMPELLER BRAKE HUS-579763301
...
24
SPRING EXTENSION - DRIVE HUS-589481601
...
8
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
33
GUIDE BZP HUS-589262505
...
19
ARM DRIVE IDLER BLACK ZINC PLA HUS-589290502
...
17
NEEDS DESCRIPTION HUS-517060408
...
40
WASHER PLAIN WASHER 3/8 X 0.08 For 970529201 HUS-596565301
...
3
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
25
GUIDE BELT - HYDRO 2 WITH FAN HUS-589760701
...
36
BRACKET.BELT.KEEPER.LOWER.BLAC HUS-581632002
...
31
PULLEY IMPELLER DD 5L HD HUS-589263801
...
30
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
5
BRACKET.WELDMANT.IDLER ARM HUS-546125702
...
27
WASHER HUS-513918900
