Husqvarna ST 330P Snow Blower

Model: ST 330P

Back To Assemblies

Save Part Not Listed?
product name

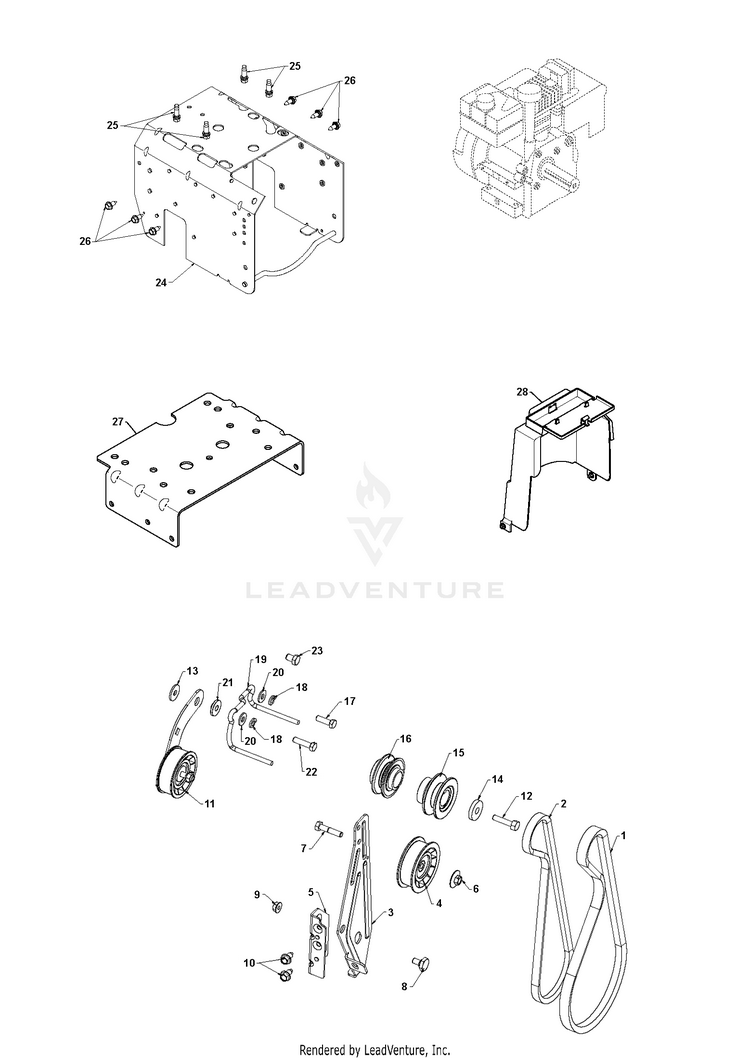

"CHASSIS, ENGINE & PULLEYS"

...
...
22
CAPSCREW.HEXHD.5/16X1.25. HUS-874610520
...
11
ARM.ASM.TRACTION.IDLER. HUS-585238401
...
xx
ENGINE.LCT.291CC.SNO.16 For 96191008503, LCT PW2HK181000178Y HUS-580426107
...
4
Pulleys HUS-594095301
...
3
ARM.IDLER BRAKE.CLEAR.ZINC HUS-584232402
...
24
FRAME.WELD.HYDRO.668.PNT HUS-586507803
...
16
PULLEY TRACTION.ASM.2.60_.75 B HUS-586051101
...
25
BOLT 3/8-16X1-1/8 HUS-532150406
...
15
PULLEY IMPELLER.ASM.2.60_.75 B HUS-586050801
...
14
WASHER.400X1.25X5. HUS-819132005
...
17
SCREW HUS-874610516
...
19
GUIDE.BELT.CHAIN.LS.SNOW HUS-585540501
...
xx
ENGINE.LCT.369CC.ALT.SNO.16 For 96193009401, 96193009402, 96193009403,LCT PW2HK181000781D HUS-585742703
...
23
SCREW.3/8-16 X .750 (2 2) HUS-874760608
...
2
BELT.V.TRACTION.35.26 HUS-532413592
...
26
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
xx
ENGINE.LCT.369CC.ALT.SNO.16 For 96193009404, LCT PW2HK181000178E HUS-585742703
...
18
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
9
NUT.LOCK.5/16-18 HUS-532751153
...
21
BUSHING.BRAKE.ARM HUS-587343701
...
20
WASHER.20X8.5 HUS-532155415
...
10
BOLT.5/16HEX.WHS.HD HUS-817000510
...
1
V-BELT.IMPELLER HUS-532419888
...
12
SCREW, HEX HD 3/8-24 X 1-3/8 For 96191008500, 96193009401 HUS-532851084
...
27
PLATE.ENGINE.MOUNT.LCT.ORANGE HUS-532429269
...
5
RP.BRACKET.IDLER.PIVOT.BLACK HUS-532423990
...
8
BOLT.SHOULDER.1/2X12 HUS-532424297
...
13
STEEL WASHER HUS-532059289
...
7
Bolts HUS-596582201
...
28
COVER ASSEMBLY HUS-532418601
...
12
BOLT.BLADE For all EXCEPT 96191008500, 96193009401 HUS-532179617
...
6
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
xx
ENGINE.LCT.369CC.SNOW.ALT For 96191008500, 96191008501, 96191008502, LCT PW2HK181000781D HUS-585742702
