Husqvarna ST 330P Snow Blower

Model: ST 330P

Back To Assemblies

Save Part Not Listed?
product name

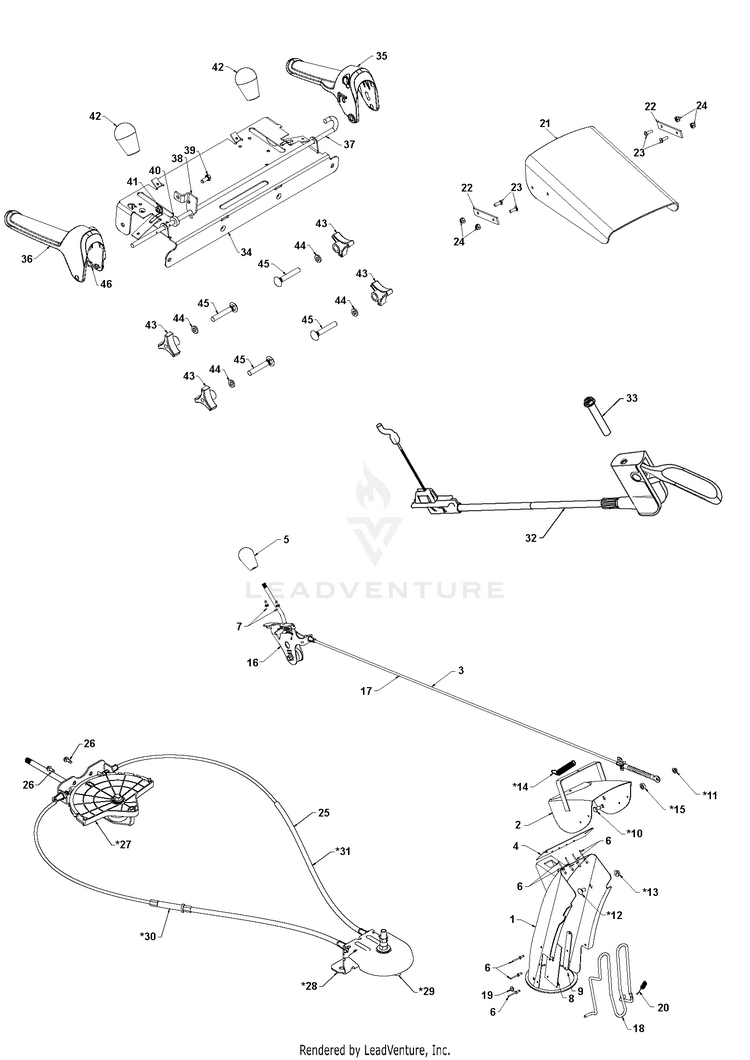

CONTROL PANEL & DISCHARGE CHUTE

...
...
*14
SPRING.DEFLECTOR.REM.CHUTE For 96193009401, 96193009402, 96193009403, 96193009404 HUS-532184505
...
23
SCREW.MACHINE.8-32 X 1/2-BLK HUS-586118001
...
2
DEFLECTOR ASSEMBLY RIVETED For 96191008500, 96193009401 HUS-590518207
...
16
CONTROL.ASM.DEFLEC.BLK.BOWDEN SERVICE PART HUS-587030801
...
7
SCREW HUS-817541008
...
44
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
17
RP CABLE.DEFLECTOR.BOWDEN For 96191008500, 96193009401, SERVICE PART HUS-587030901
...
1
DEFLECTOR ASSEMBLY RIVETED For 96191008501, 96191008502, 96191008503, INCLUDES KEY NUMBERS 1,2,4,6,8,9 HUS-590518207
...
*10
BOLT.CARR.W.3125 SHLDR..25-20 For 96193009403, 96193009404 HUS-501417301
...
*10
BOLT, SHOULDER For 96193009401, 96193009402 HUS-532179829
...
42
KNOB.OVERMOLD.DS.HUSQVARNA/BLK HUS-580673201
...
1
DEFLECTOR ASSEMBLY RIVETED For 96191008500, 96193009401 HUS-590518207
...
*11
NUT.HEX.FLANGE.1/4 For 96193009401, 96193009402, 96193009403, 96193009404 HUS-532191730
...
8
SHIELD.SNOW.CHUTE For 96191008500, 96193009401 HUS-532430324
...
26
SCREW HUS-817541008
...
41
NUT HUS-532088349
...
5
KNOB.OVERMOLD.DS.HUSQVARNA/BLK HUS-580673201
...
20
SPRING.CHUTE.GUARD For 96191008500, 96191008501, 96191008502, 96191008503 HUS-532435616
...
*13
Hardware For 96193009403, 96193009404 HUS-596040501
...
36
LEVER.CONTROL.RH.PL.BLACK RH HUS-581779701
...
33
SCREW HUS-874041024
...
3
CONTROL.ASM.DEFLEC.BLK.BOWDEN HUS-587030801
...
22
STRAP.DEFLECTOR.SHEILD RH HUS-532435831
...
32
CABLE.ASM.HYDROII.BLK/BLK HUS-532425799
...
18
ROD.GUARD.CHUTE (2 2) For 96191008500, 96191008501, 96191008502, 96191008503 HUS-532435582
...
*13
NUT.LOCK.5/16-18 For 96191008500, 96191008501, * ITEM PROVIDED IN THE BOP HUS-532751153
...
24
NUT.HEX.NYLOCK HUS-586118101
...
*28
BRACKET.ROTATOR.HEAD LISTED AS REFERENCE FOR SERVICE PARTS ONLY HUS-585199201
...
4
SEAL.DEFLECTOR For 96191008500, 96193009401 HUS-532420325
...
9
For all EXCEPT 96191008500, 96193009401, STRAP HUS-000000000
...
35
LEVER.CONTROL.LH.PL.BLACK LH HUS-581779801
...
40
SPACER.CONTROL.LEVER HUS-532421613
...
17
CONTROL.ASM.DEFLEC.BLK.BOWDEN For all EXCEPT 96191008500, 96193009401, SERVICE PART HUS-587030801
...
19
PAL NUT PM For 96191008500, 96191008501, 96191008502, 96191008503 HUS-582935201
...
43
KNOB.HANDLE.3/8.TRI-POINT.BLAC HUS-532178899
...
*27
CHUTE.ROT.HEAD.SERVICE LISTED AS REFERENCE FOR SERVICE PARTS ONLY HUS-532420678
...
37
BAIL.CONTROL.INTERLOCK.SNOW HUS-584809001
...
*31
SNOW.CBL.ASM.SERVICE(428272) LISTED AS REFERENCE FOR SERVICE PARTS ONLY HUS-532428310
...
*14
SPRING.DEFLECTOR.REM.CHUTE For 96191008500, 96191008501, 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP HUS-532184505
...
46
SPRING RETAINER HUS-532169675
...
25
LEVER/CABLE.ASM.ROTATOR HUS-532428272
...
*10
BOLT, SHOULDER For 96191008500, 96191008501, * ITEM PROVIDED IN THE BOP HUS-532179829
...
21
SHIELD.DEFLECTOR.BLACK.SNOW LH HUS-532421138
...
*13
NUT.LOCK.5/16-18 For 96193009401, 96193009402 HUS-532751153
...
4
For 96191008501, 96191008502, 96191008503, SEAL HUS-000000000
...
*30
SNOW.CBL.ASM.ADJ.SERVICE(74) LISTED AS REFERENCE FOR SERVICE PARTS ONLY HUS-532428273
...
*29
SNOW.PIVOT.PULLY LISTED AS REFERENCE FOR SERVICE PARTS ONLY HUS-532420675
...
*11
NUT.HEX.FLANGE.1/4 For 96191008500, 96191008501, 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP HUS-532191730
...
6
RIVET BLIND For 96191008500, 96193009401 HUS-532128415
...
*12
BOLT CAR BLK 5/16-18 X 5/8 For 96191008500, 96191008501, 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP HUS-585832001
...
*15
WASHER.NYLON.326 X.625 X.205 For all EXCEPT 96191008500, 96193009401, 96191008501, 96193009402 HUS-501417401
...
1
DEFLECTOR ASSEMBLY RIVETED For 96193009402, 96193009403, 96193009404 HUS-590518207
...
9
STRAP.SHEILD.RETAINER For 96191008500, 96193009401 HUS-532421728
...
*10
BOLT.CARR.W.3125 SHLDR..25-20 For 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP HUS-501417301
...
8
For all EXCEPT 96191008500, 96193009401, SHIELD HUS-000000000
...
34
PANEL.CONTROL.SNOW.BLACK HUS-585198802
...
6
For all EXCEPT 96191008500, 96193009401 HUS-000000000
...
*12
BOLT CAR BLK 5/16-18 X 5/8 For 96193009401, 96193009402, 96193009403, 96193009404 HUS-585832001
...
2
For all EXCEPT 96191008500, 96193009401, DEFLECTOR HUS-000000000
...
4
For 96193009402, 96193009403, 96193009404 HUS-000000000
...
45
BOLT 3/8-16 X 2-1/4 HUS-872120618
...
38
BRACKET.ARM.IMPELLER.ROD.YZ HUS-585004703
...
39
Bolts HUS-596582501
...
*13
Hardware For 96191008502, 96191008503, * ITEM PROVIDED IN THE BOP HUS-596040501
