Husqvarna ST 330 Snow Blower

Model: ST 330

Back To Assemblies

Save Part Not Listed?
product name

ENGINE

...
...
19
For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE HUS-000000000
...
30
BLOWER LCT 414CC HUS-587394101
...
91
GASKET KIT CRANKSHAFT.LCT HUS-587994104
...
59
FUEL TANK SKIRT.LCT.369/420CC HUS-582621701
...
97
GUARD.EXHAUST For 96193012800, 96193012801, 97046970100 HUS-590046601
...
9
FLYWHEEL.FAN(SK4144000) HUS-532429306
...
58
SHIELDS For 97046960100, 97046970101 HUS-597671001
...
88
STUD.MUFFLER.KIT.LCT HUS-586326801
...
9999
HIGH ALTITUDE JET 6000FT HUS-586326501
...
2
PUSH ROD TAPPET KIT HUS-532429606
...
28
RECOIL HUS-582621501
...
15
FUEL.PETCOCK.SNOW(SKSN4900) HUS-532429234
...
24
For 97046960100, (597 73 80-01) Speed Control -Fixed HUS-TBD
...
60
ALTERN.60WATT.SKSN2402.1 HUS-532443896
...
31
CRANKCASE.COVER.LCT.414CC.HIGH For 97046970100, 97046970101, 97046960100 HUS-580984101
...
62
HANDLE.RECOIL.DELUXE.LCT HUS-532443899
...
94
SEAL GOVERNOR SHAFT OIL.LCT HUS-588485501
...
43
BREATHER TUBE LCT 291/369/414 HUS-587179601
...
89
KNOB LCT.SKSN5325.1 SPEED HUS-587124801
...
69
STUD.CARB.MOUTING.KIT.414CC HUS-586326701
...
87
KIT.BOLT.CRANKCASE.COVER.414CC HUS-586327001
...
53
KEY.SWITCH.ASSY.SNOW(SKSN4401) HUS-532429221
...
37
DIPSTK.OIL.BLK.LCTSK4143711.1 HUS-532435534
...
4
For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE HUS-000000000
...
57
CE COMPLIANT MUFFLER SHEILD HUS-532437466
...
25
GOVERNOR.GEAR.ASSY(SK4142900) HUS-532429312
...
78
STRAP.RETAINING.TUBE.BREATHER. HUS-585771301
...
29
RECOIL HUS-582621501
...
24
TOP.SHIELD.LCT. For 96193012500, 96193012501 HUS-532435579
...
16
FUEL CAP OVERSIZED CLICK STYLE HUS-532424942
...
13
MUFFLERS For 97046970100 HUS-597737901
...
19
For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE HUS-000000000
...
85
STRAINER.FUEL.TANK.LCT.208CC HUS-586325601
...
48
WIRE.HARNESS.SNOW For all EXCEPT 97046960100, 97046970101 HUS-532429262
...
70
CARBURETTOR REPAIR KIT 291CC/4 HUS-580353701
...
56
SHIELD.VAPOR(SKSN4606) For all EXCEPT 97046960100, 97046970101 HUS-532429213
...
34
SPARK.PLUG.BOOT.SNW,SKSN4691.1 HUS-532436966
...
31
CRANKCASES For 97046970100, 97046970101 HUS-597738101
...
10
CRANKSHAFT KEYED #18 LCT 414C HUS-587151301
...
58
PLATE.GOVERN.LINK.S For all EXCEPT 97046960100, 97046970101 HUS-532429298
...
51
SHIELD.CYLINDER.SNOW(SK4141010 HUS-532429231
...
9999
KIT.BOLT.LCT.SK9990.1 HUS-579806401
...
86
KIT.BOLT.CYLINDER.HEAD.(4PC) HUS-586327401
...
18
IGNITION.COIL.(CDI).291-414CC HUS-532443944
...
4
For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE HUS-000000000
...
9999
STARTER SCREW.STARTER SWITCH B For 97046960100, 97046970100, 97046970101 HUS-590920801
...
79
For 97046960100, 97046970101, Combined with ref 58 HUS-000000000
...
8
FLYWHEEL.EL.ST.SKSN4408.1 HUS-532443900
...
17
CARBURETTOR L18D LCT 369 For all EXCEPT 97046970100 HUS-587179101
...
20
SPARK.PLUG(2083810) HUS-532424939
...
65
TAPPET KIT.LCT.SK2911005.1 HUS-581372901
...
40
NONREMVABLE.OIL.PLUG(SK4143715 HUS-532429242
...
77
BOLT.KIT.RECOIL.LCT.ALL.ENGINE HUS-532432688
...
82
SPACER.CARBURETOR.414CC.LCT HUS-585020501
...
92
CENTER VALVE COVER BOLT HUS-587995201
...
9999
CLIPS For 97046960100, 97046970100, 97046970101 HUS-597671101
...
5
PISTON ROD ASM.LCT SK3691400.1 HUS-582505201
...
49
OIL.DRAIN.PLUG HUS-532435494
...
24
NEEDS DESCRIPTION For 97046970101 HUS-597738001
...
72
HOP SNOW DECAL KIT For 96193012500, 96193012501 HUS-532435648
...
42
For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE HUS-000000000
...
48
HARNESS WIRE. W/O OFF/ON SWITC For 97046960100, 97046970101 HUS-595012501
...
21
ON/OFF.SWITCH.SNOW(SKSN4403) For all EXCEPT 97046960100, 97046970101 HUS-532429223
...
74
MUFFLER SHIELD HUS-587375301
...
42
For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE HUS-000000000
...
35
STARTER EUROPEAN 230V ELECTRIC For all EXCEPT 96193012500, 96193012501, 97046960100 HUS-532437465
...
1
CYLINDER HEAD LCT 178 INCLUDES HUS-587176801
...
64
COUNTER WEIGHT KIT HUS-532429608
...
6
For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE HUS-000000000
...
52
PRIMER BULB.W/HOSE.LCT. HUS-595079601
...
47
HIGHOIL.FILL.ASSY.KIT(SKSN4911 For all EXCEPT 97046960100, 97046970101 HUS-532429237
...
7
CAMSHAFT(SK4141600) HUS-532429313
...
39
CHOKE.KNOW.SNOW(SKSN4500) HUS-532429224
...
35
ELEC.START.ASSY.SNOW(SKSN4400) For 96193012500, 96193012501, 97046960100 HUS-532429297
...
14
FUEL.TANK.ASSY.SNOW(SKSN4300) HUS-532429209
...
17
CARBURETORS For 97046970100 HUS-597937001
...
55
OIL PIPE DRAIN EXTENDED.LCT SK For all EXCEPT 97046960100, 97046970101 HUS-587139901
...
24
CONTROL.SPEED.FIXED.LCT.SKSN44 For 96193012800, 96193012801, 97046970100 HUS-591097701
...
54
KEY SET(2 KEYS) SKSN0407.1 HUS-532443059
...
23
FUEL HOSE KIT HUS-532432146
...
33
ELECTRIC.START.BRKT(SKSN4405) HUS-532429290
...
56
For 97046960100, 97046970101, Combined with ref 58 HUS-000000000
...
72
For 96193012500, 96193012501, NOT REQUIRED FOR THIS ENGINE HUS-000000000
...
22
For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE HUS-000000000
...
61
FUEL KNOB-SNOW HUS-532432752
...
81
KEYS.FLYWHEEL.208/414CC.5PACK HUS-585297201
...
27
GOVERNOR.SHAFT(SK4143100) HUS-532429311
...
50
HEATER.BOX.ASSY-SNW(SKSN4100) For all EXCEPT 97046970100, 97046970101 HUS-532429294
...
38
ROCKER ARM KIT HUS-532429612
...
36
GASKET KIT ENGINE LCT 369 HUS-587179401
...
6
For 96193012800, 96193012801, NOT AVAILABLE FOR THIS ENGINE HUS-000000000
...
26
GOVERNOR.ARM.ASSY(SKSN4502) HUS-532429310
...
22
SHIELD.U/FYWHL.CHARG(SKSN4604) For 96193012500, 96193012501 HUS-532429232
...
50
CARBURETORS For 97046970100, 97046970101, (597 73 82-01) Carburetor Heater Box HUS-597738201
...
75
SHIELD.U/FYWHL.CHARG(SKSN4604) HUS-532429232
...
3
VALVE.COVER.LCT.414CC. HUS-532429303
...
13
MUFFLER ASSY LCT SNO For 97046960100, 97046970100 HUS-587198701
...
32
OIL SEAL KIT NON-GENERATOR HUS-532429316

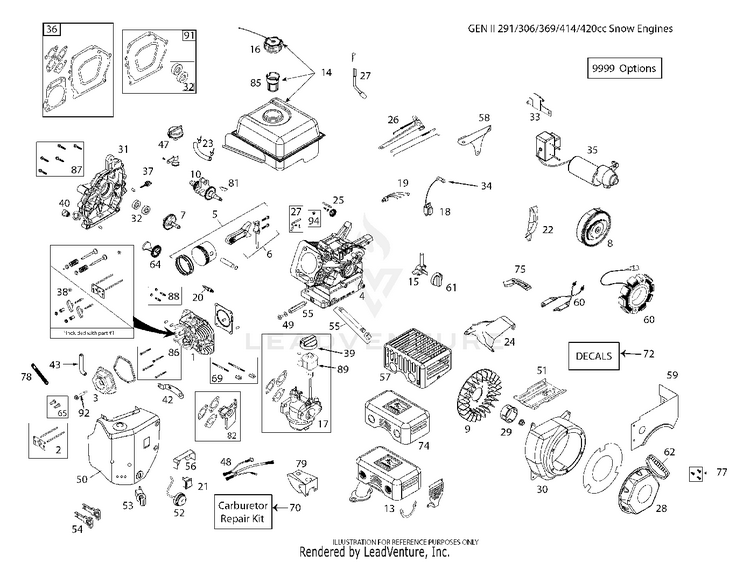

Schematic Image Zoomed
