Husqvarna ST 330 Snow Blower

Model: ST 330

Back To Assemblies

Save Part Not Listed?
product name

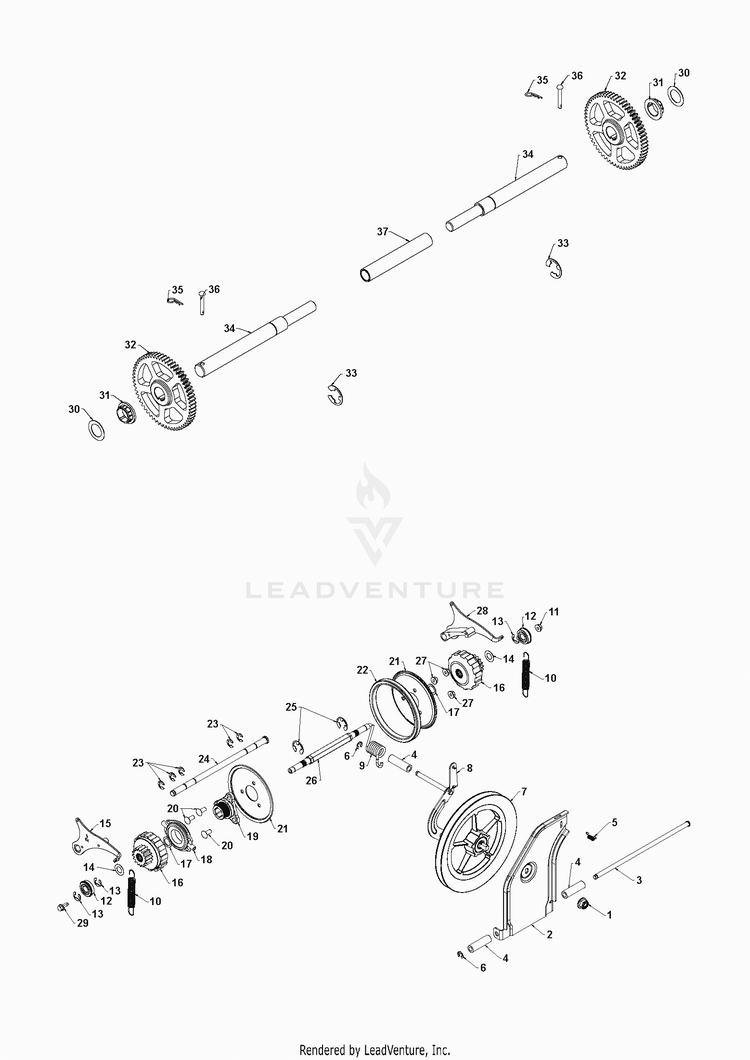

DRIVE

...
...
23
CLIP E-RING_.500 SHAFT For all EXCEPT 96193012801 HUS-586644301
...
22
Friction Drive For 96193012500, 96193012800 HUS-597362801
...
34
AXLE AXLE, SPLIT SHAFT HUS-580752601
...
2
PLATE.SWING.FRICTION PULLEY.47 For 96193012500, 96193012800 HUS-587703402
...
29
SCREW HEXAGON HEAD FLANGE 5/16 For 97046960100, 97046970100, 97046970101 HUS-595517701
...
31
BUSHING.HEX.1.SHAFT HUS-587978901
...
20
RHSNB 5/16-18 X 3/4 For all EXCEPT 96193012500, 96193012800, 96193012801 HUS-539109100
...
8
BRACKET YOKE WELDMENT_MS 479 HUS-581454203
...
33
E RING HYT HUS-812000053
...
32
GEAR.59T HUS-588518601
...
7
PULLEY ASSY TEXTURED TEXTURED For all EXCEPT 96193012500, 96193012800 HUS-581328402
...
4
SPACER YOKE, TORSION SPRING HUS-581732701
...
19
HUB.ASM.RUBBER WHEEL.SNO HUS-588069201
...
30
WASHER 1.00 HUS-532444949
...
3
ROD ROD,PIVOT, SWING PLATE ROD HUS-581123002
...
37
SLEEVE SLEEVE, AXLE SLEEVE HUS-580752501
...
20
BOLT.CARR.SQNK.5/16-18UNC.X3/4 For 96193012500, 96193012800, 96193012801 HUS-872110506
...
12
BEARING 9/16 ID. SNR HUS-580756201
...
23
RETAINER RING E-RING CLEAR ZI For 96193012801 HUS-595841101
...
24
ROD ROD, PAWL ROD HUS-580755101
...
13
RING.RETAINING.1622-2RSNR.CLER HUS-580756102
...
7
PULLEY.FRICTION.DISC.COMBO For 96193012500, 96193012800 HUS-581328401
...
18
BEARING HOUSING ASSY TRUNNION HUS-597412801
...
35
RETAINER M HUS-532004497
...
36
RIVET,DRILLED HUS-532126875
...
17
WASHER FLAT.59IDX1.065ODX25GA HUS-580756301
...
14
WASHER FLAT.637IDX1.00ODX21GA HUS-580751301
...
11
NUT.HEX.FLANGE.LOCK.5/16-18 HUS-585691501
...
2
PLATE TIP PULLEY SLOTTED MS431 For all EXCEPT 96193012500, 96193012800 HUS-531447002
...
9
SPRING TORSION DRIVE HUS-581315301
...
15
PAWL.ASM.RH.SNOW HUS-580756601
...
28
PAWL.ASM.LH.SNOW HUS-580756701
...
5
SPRING LATCH HUS-532193885
...
16
GEAR.ASM.PLANETARY HUS-580756001
...
6
RETAINER RING E-RING CLEAR ZI HUS-595841101
...
22
Friction Drive For all EXCEPT 96193012500, 96193012800 HUS-597362801
...
21
PLATE.RUBBER.WHEEL.BLACK HUS-581091002
...
26
Shafts For 97046960100, 97046970100, 97046970101 HUS-596670901
...
27
NUT.LOCK.5/16-18 HUS-532751153
...
25
E-RING HUS-812000022
...
1
NUT 1/2-13 HEX FLANGE NYLOK CL HUS-521991102
...
10
SPRING EXTENSION PS HUS-585263801
...
26
HEX SHAFT SERVICE KIT For all EXCEPT 97046960100, 97046970100, 97046970101 HUS-599265201
