Husqvarna ST 330 Snow Blower

Model: ST 330

Back To Assemblies

Save Part Not Listed?
product name

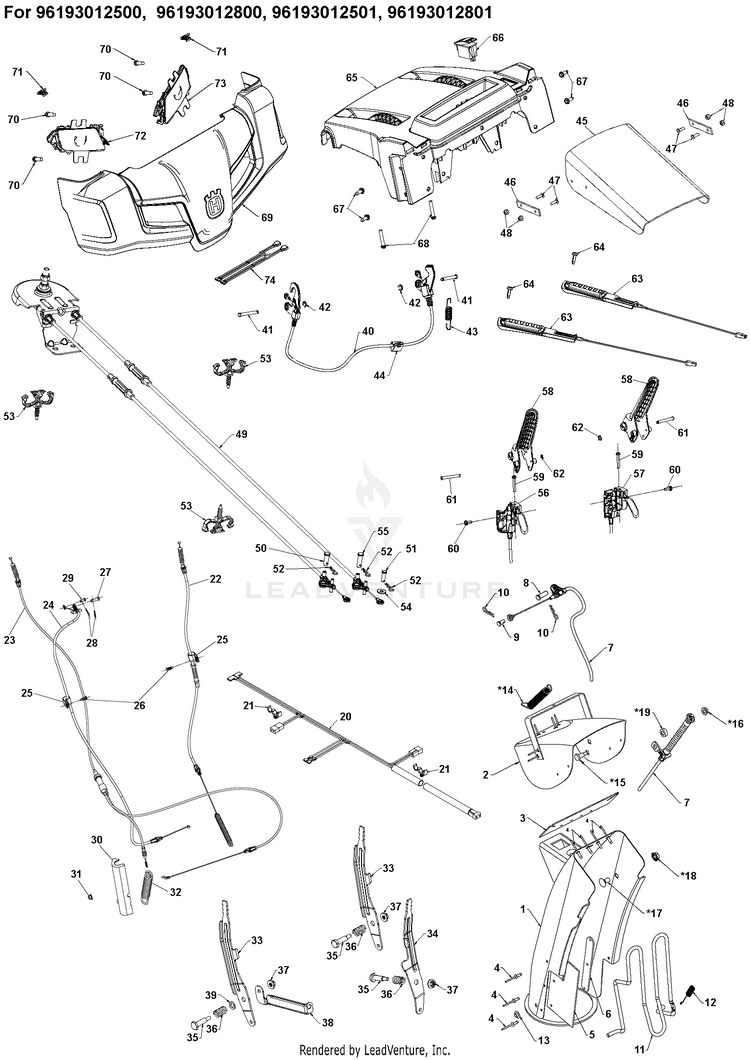

CONTROL PANEL & DISCHARGE CHUTE

...
...
*17
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
23
CABLE IMPELLER AUGER HUS-579763601
...
49
Chutes HUS-598803401
...
56
CABLE.POWER STEERING.LHS For 96193012500, 96193012501 HUS-588263901
...
60
SCREW 14-20 X 5/8 HUS-817060410
...
11
ROD.GUARD.CHUTE (2 2) For 96193012800 HUS-532435582
...
6
RP STRAP.SHEILD.RETAINER For 96193012500, 96193012800, 96193012801, RETAINER HUS-532435776
...
24
Cables HUS-598450401
...
47
SCREW.MACHINE.8-32 X 1/2-BLK HUS-586118001
...
*16
NUT.HEX.LRG.FLANGE.1/4-20.LOCK HUS-585691401
...
38
BRACE.SUPPORT.SPEED.BLACK HUS-584468402
...
*15
BOLT.CARR.W.3125 SHLDR..25-20 HUS-501417301
...
5
For 96193012501, SHIELD HUS-000000000
...
40
CABLE INTERLOCK CONTROL ACETAL HUS-593853401
...
35
BOLT SHOULDER_HEX HD_1/4-20_3/ For 96193012500, 96193012501, LH HUS-581329702
...
3
For 96193012501, SEAL HUS-000000000
...
21
PUSH CLIP HUS-532145006
...
7
CABLE CONTROL.CHUTE.DEFLECTOR. For 96193012500, 96193012800, 96193012801 HUS-590587002
...
9
PIN CLEVIS .25 X .31 HUS-585808301
...
73
LIGHT ASM.HUSQVARNA.LH LH HUS-586723601
...
57
CABLE.POWER STEERING.RHS For 96193012500, 96193012501 HUS-588263902
...
66
SWITCH HEATED GRIP BLK HUS-585805001
...
62
E-RING HUS-812000014
...
36
SPRING.COMPRESSION.82LBS For 96193012500, 96193012800, RH HUS-581329601
...
69
COVER CONSOLE_ASM_HUSQVARNA HUS-581127901
...
1
DEFLECTOR ASSEMBLY RIVETED For 96193012501 HUS-590518207
...
7
CABLE CONTROL.CHUTE.DEFLECTOR. For 96193012501 HUS-590587002
...
64
SCREW.PAN.HD.TORX.1/4-20X.750 HUS-532442250
...
29
PIN CLEVIS .25 X .31 HUS-585808301
...
11
GUARD ROD CHUTE GUARD SHORT CL For 97052880100 HUS-593622201
...
56
CABLE.POWER STEERING.LHS For 96193012800, 96193012801, LH HUS-588263901
...
68
SCREW HEX_WASH_13-16 X 1.50_H HUS-581329501
...
45
SHIELD.DEFLECTOR.BLACK.SNOW HUS-532421138
...
37
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
50
PIN CLEVIS 5/16X.875 HUS-581329401
...
70
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
63
GRIP.HANDLE.HEATED HUS-590493601
...
12
SPRING.CHUTE.GUARD For 96193012800 HUS-532435616
...
32
SPRING EXTENSION; AUGER EXTENS For 96193012501, 96193012801 HUS-594716501
...
31
NUT HEXAGON FLANGE 5/16-18 ST For 96193012501, 96193012801 HUS-594944401
...
22
CABLE DRIVE WITH ADJUSTER For 96193012500, 96193012800, Drive HUS-501656602
...
31
NUT HEXAGON FLANGE 5/16-18 ST For 96193012500, 96193012800 HUS-594944401
...
*14
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
55
PIN CLEVIS CLEVIS HUS-587130803
...
27
PIN CLEVIS 5/16X.875 HUS-581329401
...
3
SEAL.DEFLECTOR For 96193012500, 96193012800, 96193012801, SEAL HUS-532420325
...
71
CLIP PANEL ERGO 30603 HUS-581928701
...
35
BOLT SHOULDER_HEX HD_1/4-20_3/ For 96193012800, 96193012801 HUS-581329702
...
41
PIN.GROOVED HUS-583473901
...
58
LEVER ENGAGMENT HUS-582917801
...
13
PAL NUT PM For 96193012800 HUS-582935201
...
25
CLIP.CABLE.BLK HUS-532197991
...
26
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
30
COVER AUGER CABLE CABLE COVER HUS-589265201
...
20
HARNESS WIRE.LIGHT AND GRIPS HUS-587535701
...
46
STRAP.DEFLECTOR.SHEILD HUS-532435831
...
6
For 96193012501, RETAINER HUS-000000000
...
2
DEFLECTOR HUS-000000000
...
33
LEVER.CONTROL.SPEED/DEFLEC.BLK HUS-581123902
...
48
NUT.HEX.NYLOCK HUS-586118101
...
28
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
54
WASHER FLAT_.250 X .625 X .06 HUS-586682101
...
52
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
59
SCREW HEX_WASH_13-16 X 1.50_H HUS-581329501
...
72
LIGHT ASM.HUSQVARNA.RH RH HUS-586723501
...
61
PIN.GROOVED HUS-583473901
...
34
LEVER.CONTROL.CHUTE.ROTATON.BL HUS-581241602
...
22
Cables For 96193012501, 96193012801, 970529101 Drive HUS-501656603
...
65
CONSOLE BASE MULTI CONTROL HUS-581131212
...
24
Cables For 96193012801, SPEED HUS-593848401
...
74
HARNESS.WIRE.LIGHT.JUMPER HUS-585868301
...
57
CABLE.POWER STEERING.RHS For 96193012800, 96193012801, RH HUS-588263902
...
24
CABLE.CONTROL.SPEED.DSST.OPP For 96193012500, 96193012800, 96193012501, SPEED HUS-588122301
...
51
PIN.CLEVIS HUS-877100812
...
4
RIVET BLIND For 96193012500, 96193012800, 96193012801, POP RIVET HUS-532128415
...
44
CLIP.CABLE.BLK HUS-532197991
...
8
PIN CLEVIS 5/16X.875 HUS-581329401
...
*19
WASHER.NYLON.326 X.625 X.205 HUS-501417401
...
4
For 96193012501, POP RIVET HUS-000000000
...
5
SHIELD.SNOW.CHUTE For 96193012500, 96193012800, 96193012801, SHIELD HUS-532430324
...
67
SCREW 14-20 X 5/8 HUS-817060410
...
1
DEFLECTOR ASSEMBLY RIVETED For 96193012500, 96193012800, 96193012800, Includes Ref#1-6 HUS-590518207
...
*18
Hardware HUS-596040501
...
36
BOLT SHOULDER_HEX HD_1/4-20_3/ For 96193012800, 96193012801 HUS-581329702
...
39
WASHER.FLAT.625 X .375 NYLON HUS-587031301
...
53
CLIP.CONDUIT.DOUBLE LOOP HUS-584652201
...
43
NEEDS DESCRIPTION HUS-581151202
...
10
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
42
E-RING HUS-812000014
