Husqvarna ST 324P Snow Blower

Model: ST 324P

Back To Assemblies

Save Part Not Listed?
product name

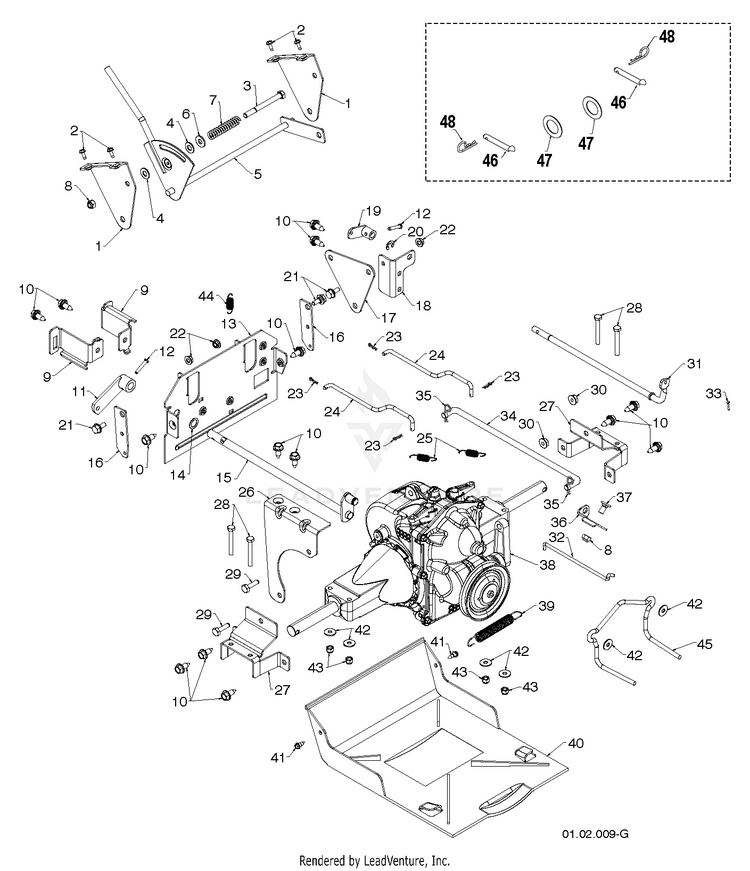

DRIVE

...
...
10
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
19
ARM.HYD.CLUTCH HUS-532198249
...
8
Hardware HUS-596040501
...
9
BRACKET.CABLE.PNT.HYDRO HUS-532443347
...
5
CONTROL.WLD.HYD.II HUS-532425596
...
16
LEVER.STEER.CABLE.PNT.SNOW HUS-532443350
...
43
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
48
RETAINER M HUS-532004497
...
14
THRUST WASHER HUS-532057079
...
32
ROD.HYDRO CLUTCH HUS-532446293
...
40
PAN.BOTTOM.PLASTIC.SNOW HUS-532425498
...
44
SPRING HUS-532406558
...
18
BRACKET.SPEED.PIVOT.YZP HUS-532443348
...
17
BRACKET.SPEED.PIVOT.YZP HUS-532443349
...
45
GUIDE BELT.HYDRO 2 HUS-584994501
...
1
BRACKET.SHIFT.HYDRO HUS-532443344
...
25
SPRING.RETURN HUS-532194124
...
41
Screws HUS-594975601
...
6
WASHER.20X8.5 HUS-532155415
...
28
BOLT.HEX.1/4-20X2.00.HEX.HD. HUS-874880432
...
23
COTTER PIN (3 2)(2 2MC) HUS-532065322
...
12
CLEVIS PIN HUS-532198580
...
26
BRACKET.HYDRO.STABILIZER HUS-532443346
...
47
WASHER THRUST HUS-532006266
...
15
KIT.CONTROL.SHAFT.SNOW HUS-532429668
...
36
BRACKET.HYD.CLUTCH. HUS-532429803
...
31
SHAFT.HYD.CLUTCH HUS-532198251
...
2
SCREW HUS-817541008
...
30
NUT.LOCK.5/16-18 HUS-532751153
...
27
BRACKET.TRANSMISSION.MOUNT HUS-532443345
...
33
RETAINER CLIP HUS-532700279
...
13
PLATE.REAR.HYDRO.PNT.ORANGE HUS-532437151
...
38
TRANSMISSION.HYDRO 2 HUS-591388201
...
11
ARM, AUGER CONTROL HUS-532405485
...
4
WASHER, NYLON FRICTION HUS-532179246
...
46
RIVET,DRILLED HUS-532126875
...
37
BOLT.CARRIAGE.5/16-18X HUS-532180355
...
34
ROD.SPEED.CONT.HYD.SNOW HUS-532425499
...
24
ROD.STEER.HYD HUS-532425496
...
42
WASHER HUS-819091214
...
3
SCREW 5/16-18 X 3.25 HUS-874760552
...
39
SPRING, BRAKE HUS-532178828
...
20
E-RING.RETAINER.REINFORCED.375 HUS-532428288
...
35
SPRING RETAINER HUS-532169675
...
29
Bolts HUS-596580801
...
22
NUT.HEX.FLANGE.1/4 HUS-532191730
...
7
SRPING.FRICTION.HYDRO HUS-532192195
...
21
BOLT.SHOULDER.3/X.25 HUS-532402881
