Husqvarna ST 324P Snow Blower

Model: ST 324P

Back To Assemblies

Save Part Not Listed?
product name

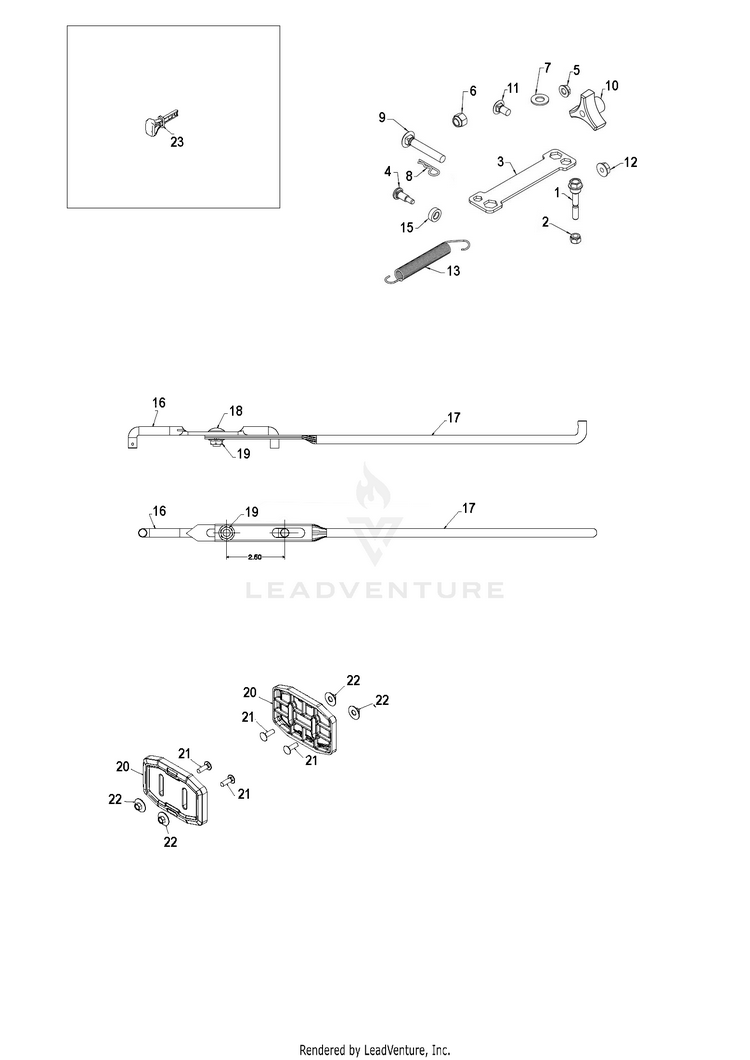

ACCESSORIES

...
...
1
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
3
WRENCH.SNOWTHROWER.ZINC.YZ HUS-532429112
...
16
ROD.SHIFTER.TOP.HYD HUS-532425598
...
9
BOLT 3/8-16 X 2-1/4 HUS-872120618
...
23
KEY SET(2 KEYS) SKSN0407.1 HUS-532443059
...
21
BOLT.CARR.5/16-18X1.BLACK HUS-532437318
...
15
WASHER.NYLON.326 X.625 X.205 HUS-501417401
...
19
GSPW Hardware HUS-596039201
...
17
ROD, LOWER, SPEED CONTROL HUS-532187784
...
xx
HUS-588556301
...
6
Nuts HUS-596322601
...
10
KNOB.HANDLE.3/8.TRI-POINT.BLAC HUS-532178899
...
13
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
8
SPRING RETAINER HUS-532169675
...
12
NUT.LOCK.5/16-18 For 96193009104, 96193009103, 96193009102 HUS-532751153
...
7
WASHER PLAIN WASHER 3/8 X 0.08 HUS-596565301
...
4
BOLT, SHOULDER For 96193009102, 96191008201 HUS-532179829
...
11
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
4
BOLT.CARR.W.3125 SHLDR..25-20 For 96193009104, 96193009103, 96191008202 HUS-501417301
...
18
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
5
NUT.HEX.FLANGE.1/4 HUS-532191730
...
2
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
20
PLATE.SKID.SHOE.COMPOSITE HUS-583838801
...
22
NUT.HEX.FL 5/16-18 TOP LCK BLK HUS-585802801
...
12
Hardware For 96191008202, 96191008201 HUS-596040501
