Husqvarna ST 324P Snow Blower

Model: ST 324P

Back To Assemblies

Save Part Not Listed?
product name

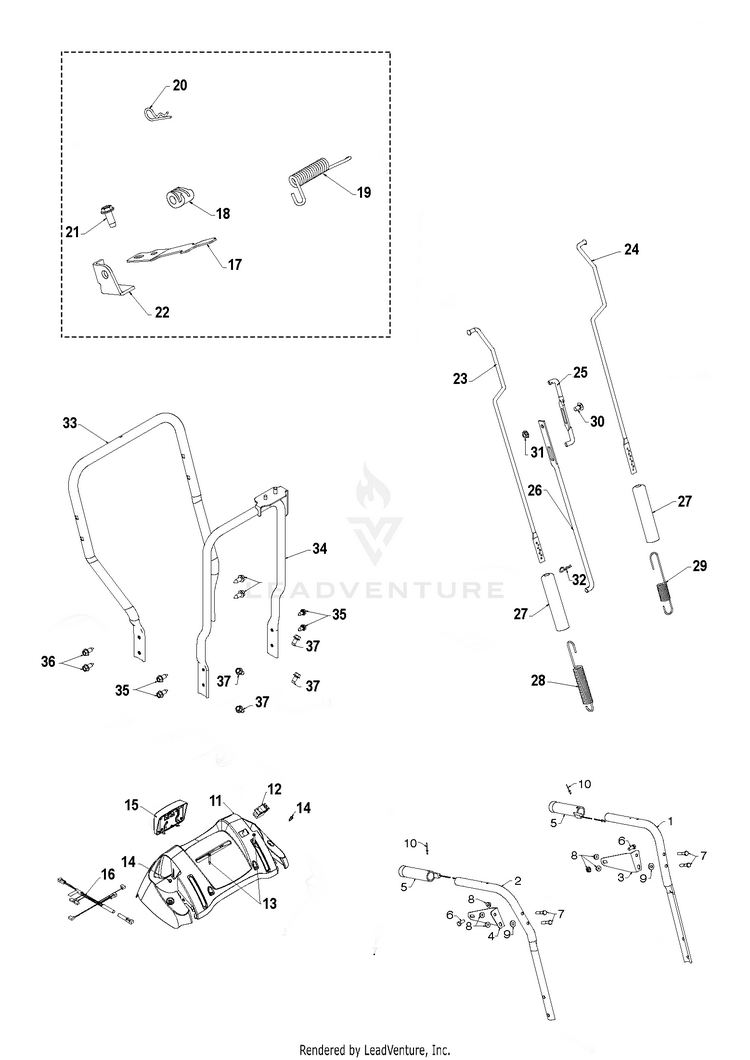

HANDLE & CONTROLS

...
...
37
SCREW, 3/8-16X3/4 HUS-817000612
...
29
SPRING.TRACTION.ROD.SNOW HUS-580802101
...
30
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
33
HANDLE.LOWER.CHAIN.SNOW.GREY HUS-585238103
...
23
ROD.IMPELLER HUS-584808701
...
8
NUT.LOCK.5/16-18 HUS-532751153
...
14
Screws HUS-594975601
...
24
ROD.TRACTION HUS-584808801
...
4
BRACKET.PANEL.RH. RH HUS-532429149
...
19
SPRING.TORSION.LEVER HUS-532443215
...
1
TUBE.HANDLE.PLOW.LH.GREY LH HUS-532421708
...
27
SLEEVE, SPRING HUS-532180447
...
5
GRIP.HANDLE.HEATED HUS-532414515
...
2
TUBE.HANDLE.PLOW.RH.GREY RH HUS-532421709
...
25
ROD.SHIFTER.TOP.HYD HUS-532425598
...
3
BRACKET.PANEL.LH. LH HUS-532429148
...
36
SCREW 3/8-16X1 HUS-817000616
...
7
Bolts HUS-596582201
...
20
SPRING RETAINER HUS-532169675
...
15
SERVICE KIT HEADLIGHT SNOW HUS-531228801
...
10
RIVET.POP.1/8X HUS-532178775
...
26
ROD, LOWER, SPEED CONTROL HUS-532187784
...
9
WASHER.20X8.5 HUS-532155415
...
12
SWITCH.HEATED.GRIP HUS-532417760
...
31
GSPW Hardware HUS-596039201
...
34
SUPPORT.WELDMENT.ROTATOR.BLACK HUS-532443617
...
22
STOP.INTERTLOCK.SPRING HUS-532421252
...
32
SPRING RETAINER HUS-532169675
...
21
SCREW 14-20 X 5/8 HUS-817060410
...
13
SCREW, HEX HD TAPPING #10-24 1 HUS-532175262
...
6
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
35
BOLT.5/16HEX.WHS.HD HUS-817000510
...
28
SPRING.CONTROL.ROD.SNOW HUS-580796201
...
17
SPRING.INTERLOCK HUS-532412675
...
18
CAM.INTERLOCK.RELEASE HUS-532445291
...
16
HARNESS.WIRE.FLOOD/LED.HEAT. HUS-580625601
...
11
PANEL.CONSOLE. HUS-532421351
