Husqvarna ST 324P Snow Blower

Model: ST 324P

Back To Assemblies

Save Part Not Listed?
product name

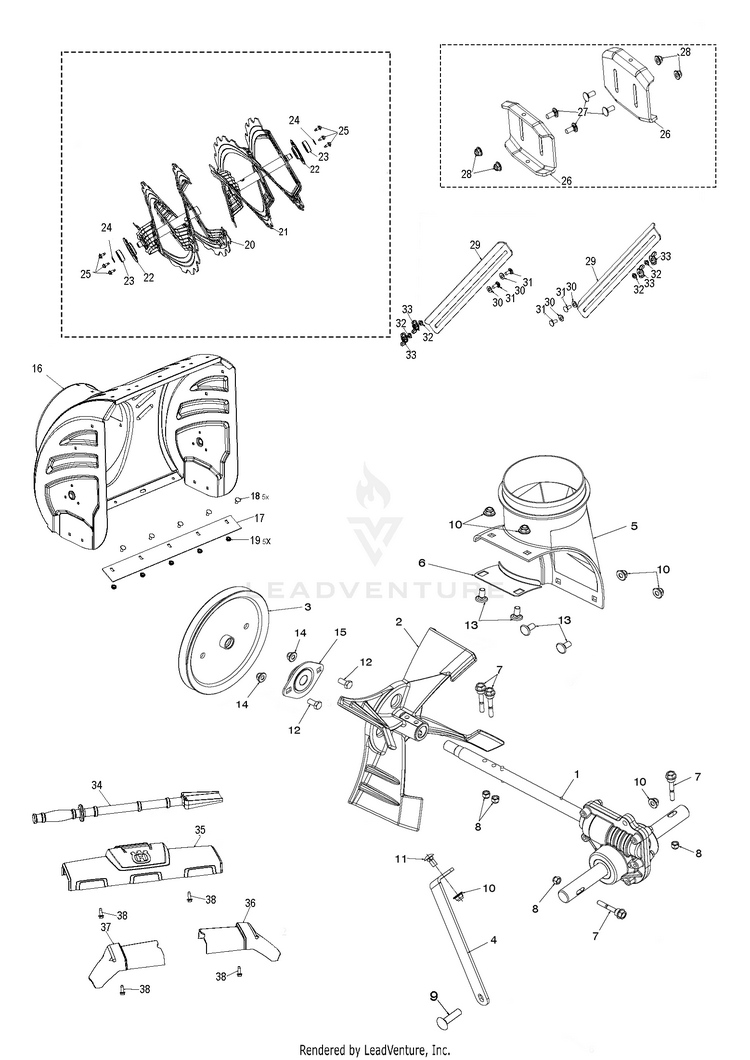

AUGER HOUSING & IMPELLER

...
...
26
SKID PLATE HUS-532407834
...
38
SCREW HEXWSHR 1/4-20X3/4 HUS-817670412
...
33
NUT WING PM HUS-532128638
...
9
BOLT.CARRIAGE.5/16-18 HUS-872110510
...
2
IMPELLER CAST.IRON.12IN MS 417 HUS-585198303
...
5
CHUTE.DISCHARGE.BASE HUS-585056901
...
17
PLATE.SHAVE.24.LS.SNOW.BLACK HUS-585048302
...
28
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
...
25
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
21
AUGER.RIBBON.24.LH.LS.479 For 96193009103 HUS-581970202
...
37
TRIM AUGER.HOUSING.WING.LH MS HUS-586330402
...
29
BAR.DRIFT.CUTTER.BLACK HUS-532435832
...
11
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
8
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
16
KIT.AUGR.HSG.581976702(24LS668 HUS-581708367
...
22
SUPPORT.BEARING.SINGLE.STAGE.B HUS-580855501
...
34
CLEAN OUT TOOL HUS-532192199
...
30
WASHER, NYLON FRICTION HUS-532179246
...
35
TRIM AUGER FRONT TRIM ASSEMBLY HUS-586414802
...
4
SUPPORT.GEARBOX.LS.498 HUS-585109004
...
15
BEARING FLANGE HUS-532188909
...
3
PULLEY SCREW ON 7.9 HUS-586715401
...
24
RETAINING RING LT HUS-812000028
...
20
AUGER.RIBBON.24.RH.LS.479 For 96193009103 HUS-581970102
...
18
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
20
AUGER.RIB.24.RH.LS.GREY For 96193009104, 96191008202, 96193009102, 96191008201 HUS-581970103
...
21
AUGER.RIB.24.LH.LS.GREY For 96193009104, 96191008202, 96193009102, 96191008201 HUS-581970203
...
13
BOLT CARR WAFER BLK 5_16-18 X HUS-585691201
...
23
BEARING For 96193009104, 96193009103, 96191008202, 96191008201 HUS-532110485
...
6
Brackets HUS-597433002
...
19
GSPW Hardware HUS-596039201
...
12
Screws HUS-596031601
...
27
BOLT CARR BLK 5_16-18 X .750 HUS-585691701
...
31
BOLT.CARR.SQNK.5/16-18UNC.X3/4 HUS-872110506
...
7
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
14
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
10
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
...
36
TRIM AUGER.HOUSING.WING.RH MS HUS-586330302
...
23
BEARING For 96193009102 HUS-532110485
...
32
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
1
KIT.GEARBOX.CAST.DD.SHAFT HUS-597371601
