Husqvarna ST 324 Snow Blower

Model: ST 324

Back To Assemblies

Save Part Not Listed?
product name

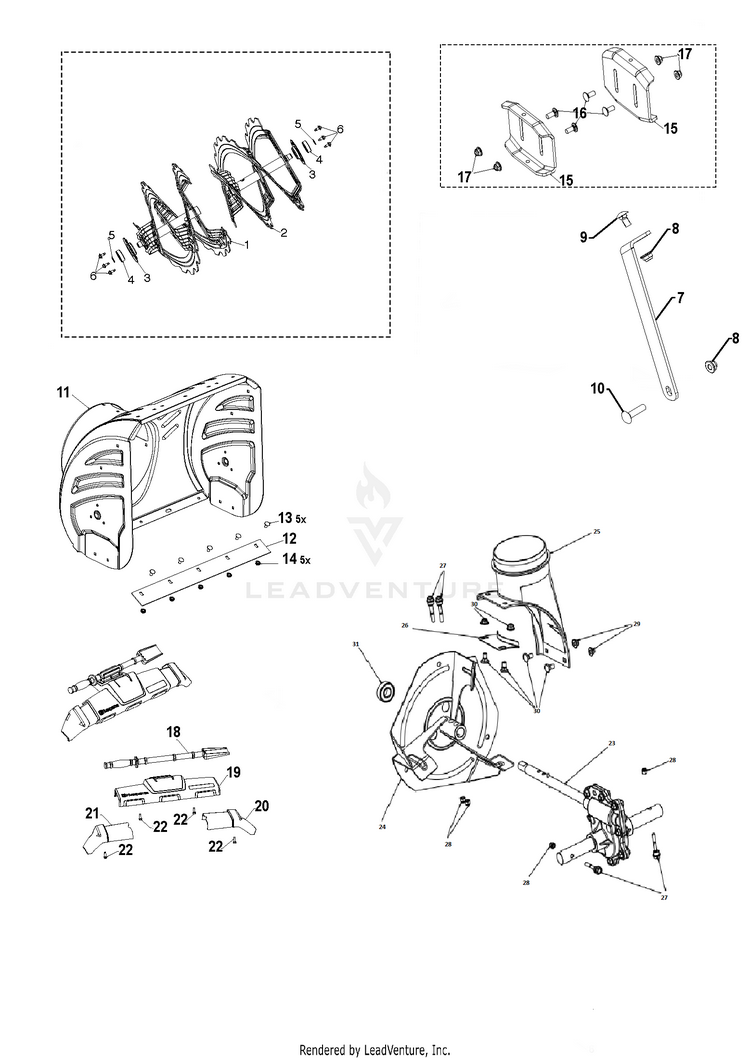

AUGER HOUSING & IMPELLER

...
...
14
GSPW Hardware For 97046930100, 97046880100 HUS-596039201
...
11
HOUSING ASSY KIT 586184202 AU HUS-588610239
...
18
CLEAN OUT TOOL HUS-532192199
...
20
TRIM AUGER.HOUSING.WING.RH MS HUS-586330302
...
19
TRIM AUGER FRONT TRIM ASSEMBLY HUS-586414802
...
8
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
...
28
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
10
NUT HEX FLG NYLOCK BLK 5_16-1 For 97046930100 HUS-585691301
...
30
BOLT CARR WAFER BLK 5_16-18 X HUS-585691201
...
9
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
2
AUGER.RIB.24.LH.LS.GREY LH HUS-581970203
...
12
PLATE.SHAVE.24.LS.SNOW.BLACK For 96193012601, 96193012301 HUS-585048302
...
14
GSPW Hardware For 96193012601, 96193012301 HUS-596039201
...
22
SCREW 14-20 X 5/8 HUS-817060410
...
12
PLATE.SHAVE.27.LS.SNOW.BLACK For 97046930100, 97046880100 HUS-585048402
...
25
CHUTE.DISCHARGE.BASE HUS-585056901
...
7
SUPPORT.GEARBOX.LS.498 HUS-585109004
...
6
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
5
RETAINING RING LT HUS-812000028
...
23
ALUMINUM GEARBOX KIT For 970528901,970528902 HUS-546035401
...
29
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
...
17
NUT HEX FLG NYLOCK BLK 5_16-1 HUS-585691301
...
3
SUPPORT.BEARING.SINGLE.STAGE.B HUS-580855501
...
27
BOLT SHEAR HX HD 1/4-20 CLEAR For 970528901,970528902 HUS-588077502
...
26
Brackets HUS-597433002
...
31
BEARING HUS-532198791
...
15
SKID PLATE HUS-532407834
...
13
BOLT ROUND HEAD SQUARE NECK BO HUS-596039401
...
24
IMPELLER STEEL.SNOW IMPELLER.S For 970528901,970528902 HUS-586607203
...
16
BOLT CARR BLK 5_16-18 X .750 HUS-585691701
...
24
IMPELLER CAST.IRON.12IN MS 417 HUS-585198303
...
4
BEARING HUS-532110485
...
1
AUGER.RIB.24.RH.LS.GREY RH HUS-581970103
...
21
TRIM AUGER.HOUSING.WING.LH MS HUS-586330402
...
10
BOLT.CARRIAGE.5/16-18 For 97046880100, 96193012601, 96193012301 HUS-872110510
...
27
BOLT SHEAR HX HD 1/4-20 CLEAR HUS-588077502
...
23
CAST GEARBOX KIT HUS-546035301
