Husqvarna ST 324 Snow Blower

Model: ST 324

Back To Assemblies

Save Part Not Listed?
product name

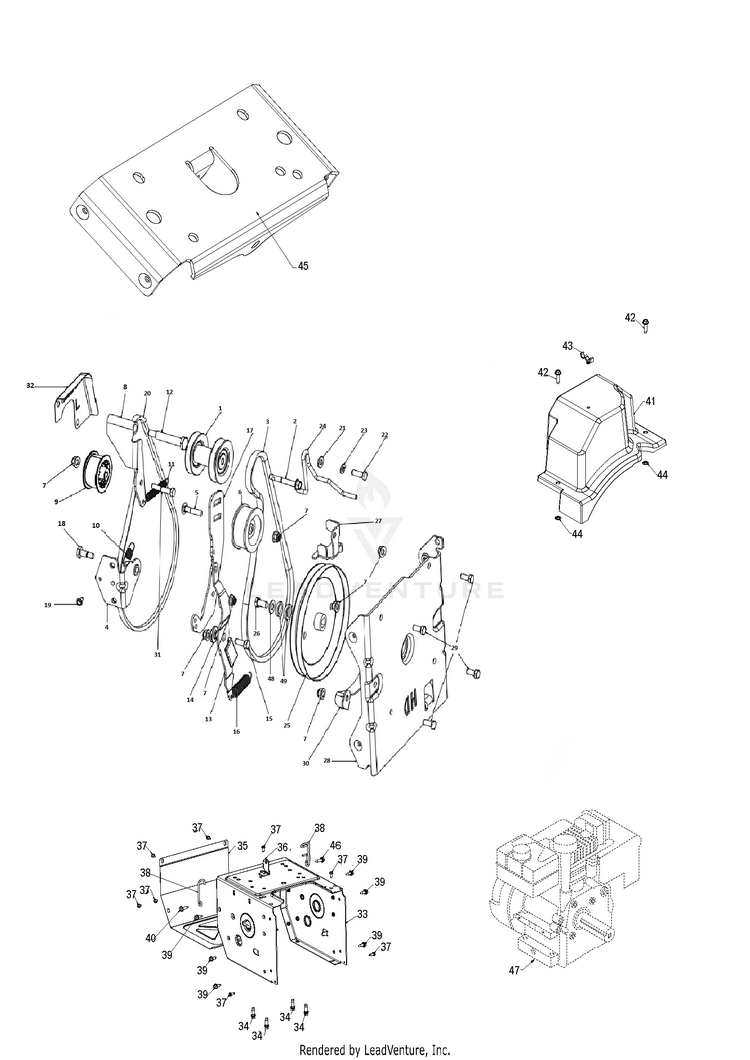

CHASSIS, ENGINE & PULLEYS

...
...
6
Pulleys HUS-589262702
...
2
BOLT.ENGINE.PULLEY HUS-582388401
...
30
BRACKET.BELT.KEEPER.LOWER.BLAC HUS-581632002
...
27
GUIDE.LOWER.AUGER.BELT.479 HUS-587587202
...
36
BRACKET.SHIFTER.BZP HUS-501060403
...
47
ENGINE RATO 252CC (CARB) For 97052890200, (See Husqvarna Engine IPL for service parts) HUS-598610603
...
47
ENGINE.LCT.254CC.ALT.SNO For 96193012300, 96193012301 (See LCT Engine IPL for service parts) HUS-585335706
...
39
BOLT.HEX.HD.WASHER.5/16-18X.75 HUS-532428867
...
11
SPRING RETURN IDLER ARM HUS-580753001
...
43
PUSH CLIP HUS-532145006
...
42
SCREW HEX WASH THDRL BLK 1_4- PALNUT For 96193012601, 96193012301 HUS-585691101
...
44
PALNUT 1/4 INCLUDED IN BELT COVER For 97046930100, 97046880100 HUS-532423062
...
35
COVER COVER.FRAME MS668 ORANGE HUS-580839505
...
14
BUSHING.BRAKE.ARM HUS-587343701
...
5
BOLT 5/16-18 CARRIAGE 1.5L HUS-589284501
...
10
SPRING IDLER RETURN HUS-589263701
...
48
WASHER PLAIN WASHER 3/8 X 0.08 for 970528901,970528902 HUS-596565301
...
15
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
16
SPRING EXTENSION - BRAKE HUS-579763501
...
1
PULLEY 4L GEAR - LC For 97052890100 HUS-598815602
...
7
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
34
BOLT 3/8-16X1-1/8 HUS-532150406
...
23
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
26
SCREW HEXAGON HEAD FLANGE 3/8- HUS-595517901
...
49
WASHER.SPACER.MANDREL For 970528901,970528902 HUS-532187690
...
21
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
42
BOLT For 96193012601, 96193012301 HUS-000000000
...
47
ENGINE.LCT.254CC.STORMFOR.ALT For 96193012600, 96193012601 (See LCT Engines IPL for service parts) HUS-585335704
...
20
Belts HUS-582640701
...
47
NEEDS DESCRIPTION For 970528901 (See Husqvarna Engines IPL For Service Parts) HUS-598610602
...
22
SCREW HUS-874610516
...
17
ARM IDLER BLACK ZINC HUS-589262902
...
46
SCREW HEXAGON HEAD WITH COLLAR HUS-593337201
...
41
COVER COVER.BELT INCLUDED IN BELT COVER HUS-581049901
...
29
SCREW HEXAGON HEAD SCREW 5/16- HUS-596030501
...
12
BOLT 5/16-24X2.25 HEX HEAD SHO HUS-581413801
...
44
PALNUT For 96193012601, 96193012301 HUS-000000000
...
28
NEEDS DESCRIPTION HUS-501595403
...
8
ARM DRIVE IDLER CLEAR ZINC PLA HUS-593192502
...
4
BRACKET.WELDMANT.IDLER ARM HUS-546125702
...
24
Belt Keepers HUS-598644401
...
18
SCREW HEX HEAD SHOULDER HUS-589263601
...
33
FRAME MS 668 HUS-589264705
...
45
BRACKET.FRAME.SUPPORT.BLACK HUS-583940502
...
47
ENGINES For 97046930100 (See LCT Engine IPL for service parts) HUS-596958903
...
1
Engines HUS-589262203
...
40
SCREW HEXAGON HEAD WITH COLLAR HUS-593337201
...
38
WIREFORM.SUPPORT.CABLE HUS-588954501
...
3
LOW CRANK IMPELLER BELT HUS-501818201
...
32
Cranks HUS-598711902
...
47
Engines For 970468801 (See LCT Engines IPL for service parts) HUS-596958902
...
28
NEEDS DESCRIPTION For 97052890100 HUS-501595403
...
19
SCREW HUS-817060408
...
2
BOLTS For 97052890100 HUS-598758701
...
31
BOLT, HEX 5/16-18X1-3/4 HUS-874760528
...
13
ARM IMPELLER BRAKE HUS-579763301
...
37
SCREW.HEX HEAD W/COLLAR 1/4-20 HUS-582906901
...
25
PULLEY HUS-536862801
...
9
PULLEYIDLER.2.0.W/SPACER.CZ HUS-581141402
