Husqvarna ST 324 Snow Blower

Model: ST 324

Back To Assemblies

Save Part Not Listed?
product name

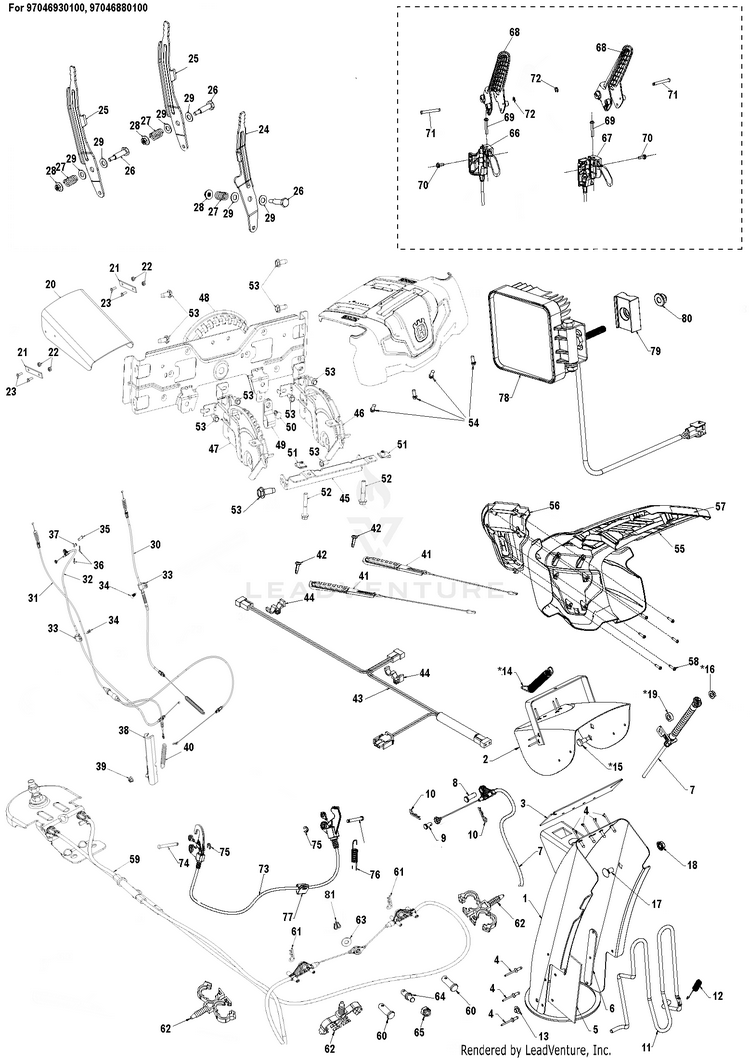

CONTROL PANEL & DISCHARGE CHUTE

...
...
27
SPRING.COMPRESSION.82LBS HUS-581329601
...
28
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
21
STRAP.DEFLECTOR.SHEILD HUS-532435831
...
22
SCREW.MACHINE.8-32 X 1/2-BLK HUS-586118001
...
53
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
57
Decals HUS-598812001
...
11
GUARD ROD CHUTE GUARD SHORT CL HUS-593622201
...
20
SHIELD.DEFLECTOR.BLACK.SNOW HUS-532421138
...
58
SCREW HUS-532163409
...
35
PIN CLEVIS 5/16X.875 HUS-581329401
...
*14
SPRING.DEFLECTOR.REM.CHUTE HUS-532184505
...
12
SPRING.CHUTE.GUARD HUS-532435616
...
43
Harnesses HUS-598803601
...
31
CABLE IMPELLER HUS-579763601
...
9
PIN CLEVIS .25 X .31 HUS-585808301
...
29
WASHER, NYLON FRICTION HUS-532179246
...
60
PIN CLEVIS 5/16X.875 HUS-581329401
...
50
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
56
Consoles HUS-598803801
...
73
CABLE INTERLOCK CONTROL ACETAL HUS-593853401
...
41
GRIP.HANDLE.HEATED HUS-590493601
...
4
POP RIVET HUS-000000000
...
3
SEAL HUS-000000000
...
64
Clevis Pins For 97052890100 HUS-596717201
...
71
PIN.GROOVED HUS-583473901
...
34
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
10
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
5
SHIELD HUS-000000000
...
47
Brackets HUS-597992302
...
55
Consoles Fits 97052890200, 97046930100, 97046880100 HUS-598803701
...
66
CABLE.POWER STEERING.LHS HUS-588263901
...
6
RETAINER HUS-000000000
...
62
CLIP.CONDUIT.DOUBLE LOOP HUS-584652201
...
26
BOLT SHOULDER_HEX HD_1/4-20_3/ HUS-581329702
...
*17
BOLT CAR BLK 5/16-18 X 5/8 HUS-585832001
...
38
COVER AUGER CABLE HUS-589265201
...
8
PIN CLEVIS 5/16X.875 HUS-581329401
...
45
Brackets HUS-597991902
...
80
NEEDS DESCRIPTION HUS-5949444401
...
30
Cables HUS-501656603
...
*19
WASHER.NYLON.326 X.625 X.205 HUS-501417401
...
40
SPRING EXTENSION; AUGER EXTENS HUS-594716501
...
48
Brackets HUS-597992402
...
7
Controls HUS-598450501
...
33
CLIP.CABLE.BLK HUS-532197991
...
67
CABLE.POWER STEERING.RHS HUS-588263902
...
76
NEEDS DESCRIPTION HUS-581151202
...
*16
NUT.HEX.LRG.FLANGE.1/4-20.LOCK HUS-585691401
...
63
WASHER FLAT_.250 X .625 X .06 HUS-586682101
...
77
CLIP.CABLE.BLK HUS-532197991
...
2
DEFLECTOR HUS-000000000
...
1
DEFLECTOR ASSEMBLY RIVETED HUS-590518207
...
70
SCREW 14-20 X 5/8 HUS-817060410
...
75
E-RING HUS-812000014
...
61
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
69
SCREW HEX_WASH_13-16 X 1.50_H HUS-581329501
...
54
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
59
Chutes HUS-598803401
...
79
MOUNTING BRACKET LIGHT MOUNTIN HUS-590439801
...
42
SCREW.PAN.HD.TORX.1/4-20X.750 HUS-532442250
...
68
LEVER ENGAGMENT HUS-582917801
...
49
CLIP.CABLE.BLK HUS-532197991
...
*18
Hardware HUS-596040501
...
36
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
25
LEVER.CONTROL.SPEED/DEFLEC.BLK HUS-581123902
...
*15
BOLT.CARR.W.3125 SHLDR..25-20 HUS-501417301
...
46
Brackets HUS-597992202
...
72
E-RING HUS-812000014
...
65
NUT FLG, NYLOCK, 1/4-20 GR G C HUS-582478602
...
37
PIN CLEVIS .25 X .31 HUS-585808301
...
24
Levers HUS-596786802
...
23
NUT.HEX.NYLOCK HUS-586118101
...
32
Cables HUS-598450401
...
78
SERVICE KIT LIGHT SNOW LED Fits 97052890200, 97052890100 HUS-535543501
...
39
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
74
PIN.GROOVED HUS-583473901
...
44
PUSH CLIP HUS-532145006
...
51
1/4-20 U NUT HUS-532174814
...
52
SCREW.HEXCAP.1/4X-20X1.500 HUS-501406601
...
64
Clevis Pins HUS-596717201
...
13
PAL NUT PM HUS-582935201
