Husqvarna ST 230P Snow Blower

Model: ST 230P

Back To Assemblies

Save Part Not Listed?
product name

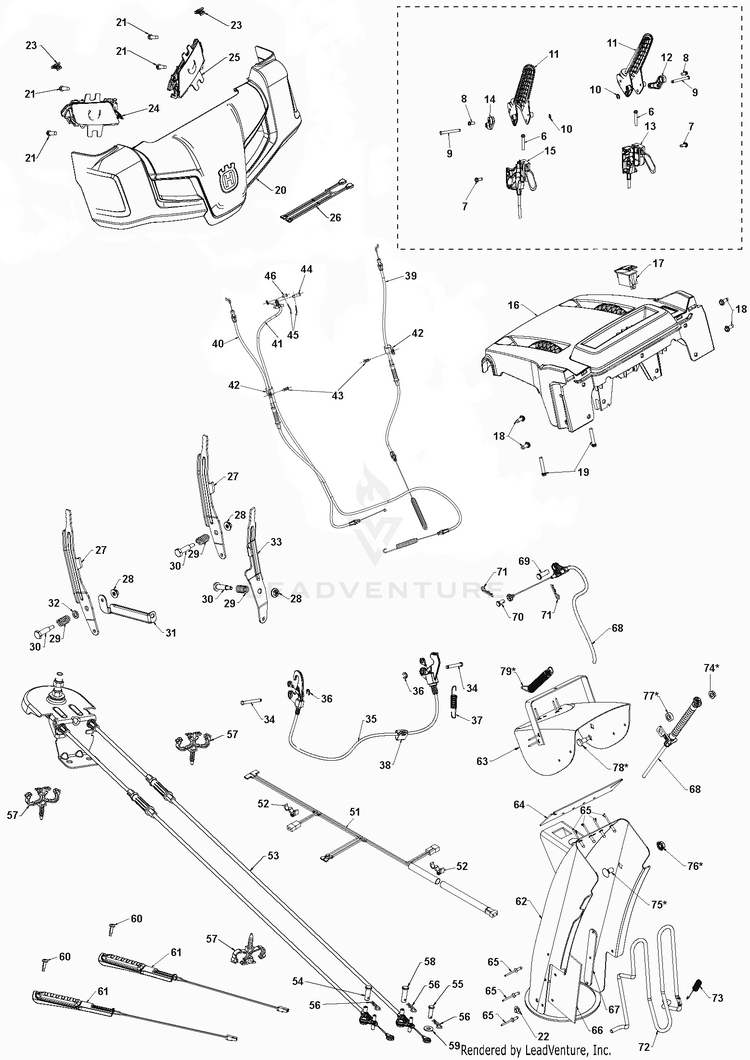

CONTROL PANEL & DISCHARGE CHUTE

...
...
78*
BOLT.CARR.W.3125 SHLDR..25-20 INCLUDED IN BAG OF PARTS HUS-501417301
...
41
CABLE.CONTROL.SPEED.DSST.OPP For all EXCEPT 96191009005 HUS-588122301
...
57
CLIP.CONDUIT.DOUBLE LOOP HUS-584652201
...
68
CABLE CONTROL.CHUTE.DEFLECTOR. For all EXCEPT 96191009005, 96193010106 HUS-590587002
...
76*
Hardware INCLUDED IN BAG OF PARTS HUS-596040501
...
77*
WASHER.NYLON.326 X.625 X.205 INCLUDED IN BAG OF PARTS HUS-501417401
...
58
PIN CLEVIS CLEVIS HUS-587130803
...
59
WASHER FLAT_.250 X .625 X .06 HUS-586682101
...
15
CABLE.POWER STEERING.LHS LH HUS-588263901
...
16
CONSOLE BASE MULTI CONTROL HUS-581131212
...
13
CABLE.POWER STEERING.RHS RH HUS-588263902
...
71
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
40
CABLE.CONTROL.AUGER HUS-588113802
...
29
SPRING.COMPRESSION.82LBS HUS-581329601
...
19
SCREW HEX_WASH_13-16 X 1.50_H HUS-581329501
...
44
PIN CLEVIS 5/16X.875 HUS-581329401
...
70
PIN CLEVIS .25 X .31 HUS-585808301
...
36
E-RING HUS-812000014
...
24
LIGHT ASM.HUSQVARNA.RH RH HUS-586723501
...
11
LEVER CONTROL DSST OPP MPP HUS-587463001
...
39
CABLE.DRIVE CONTROL W/ADJ HUS-582519002
...
52
PUSH CLIP HUS-532145006
...
54
PIN CLEVIS 5/16X.875 HUS-581329401
...
31
BRACE.SUPPORT.SPEED.BLACK HUS-584468402
...
12
LEVER.CABLE.ARM.RHS.BLACK RH HUS-587739702
...
7
SCREW 14-20 X 5/8 HUS-817060410
...
73
SPRING.CHUTE.GUARD HUS-532435616
...
42
CLIP.CABLE.BLK HUS-532197991
...
61
SCREW.PAN.HD.TORX.1/4-20X.750 HUS-532442250
...
27
LEVER.CONTROL.SPEED/DEFLEC.BLK HUS-581123902
...
67
RETAINER HUS-000000000
...
9
PIN.GROOVED HUS-588147701
...
79*
SPRING.DEFLECTOR.REM.CHUTE INCLUDED IN BAG OF PARTS HUS-532184505
...
53
Chutes HUS-598803401
...
65
POP RIVET HUS-000000000
...
69
PIN CLEVIS 5/16X.875 HUS-581329401
...
28
NUT HEX_LRG FLG_1_4-20_LOCK HUS-586668901
...
45
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
46
PIN CLEVIS .25 X .31 HUS-585808301
...
63
DEFLECTOR HUS-000000000
...
41
Cables For 96191009005 HUS-593848401
...
21
SCREW.HWH.13-16-5.8.BZP HUS-532194189
...
10
E-RING HUS-812000014
...
37
NEEDS DESCRIPTION HUS-581151202
...
8
SCREW.HWH.13-16X.50 HUS-817411308
...
64
SEAL HUS-000000000
...
14
LEVER.CABLE.ARM.LHS.BLACK LH HUS-587739701
...
51
HARNESS WIRE.LIGHT AND GRIPS HUS-587535701
...
20
COVER CONSOLE_ASM_HUSQVARNA HUS-581127901
...
68
CABLE CONTROL.CHUTE.DEFLECTOR. For 96191009005, 96193010106 HUS-590587002
...
32
WASHER.FLAT.625 X .375 NYLON HUS-587031301
...
74*
NUT.HEX.LRG.FLANGE.1/4-20.LOCK INCLUDED IN BAG OF PARTS HUS-585691401
...
75*
BOLT CAR BLK 5/16-18 X 5/8 INCLUDED IN BAG OF PARTS HUS-585832001
...
66
SHIELD HUS-000000000
...
17
SWITCH HEATED GRIP BLK HUS-585805001
...
55
PIN.CLEVIS HUS-877100812
...
62
DEFLECTOR ASSEMBLY RIVETED INCLUDES KEY NUMBERS 1-6 HUS-590518207
...
34
PIN.GROOVED HUS-583473901
...
60
GRIP.HANDLE.HEATED HUS-590493601
...
18
SCREW 14-20 X 5/8 HUS-817060410
...
26
HARNESS.WIRE.LIGHT.JUMPER HUS-585868301
...
33
LEVER.CONTROL.CHUTE.ROTATON.BL HUS-581241602
...
23
CLIP PANEL ERGO 30603 HUS-581928701
...
35
CABLE INTERLOCK CONTROL ACETAL HUS-593853401
...
38
CLIP.CABLE.BLK HUS-532197991
...
6
SCREW HEX_WASH_13-16 X 1.50_H HUS-581329501
...
22
PAL NUT PM HUS-582935201
...
43
FASTENER.PUSH.O.250X0.783 HUS-532428124
...
72
ROD.GUARD.CHUTE (2 2) For all EXCEPT 96191009005, 96193010106 HUS-532435582
...
56
HAIRPIN.SOFT.ZINC.059X1.125 HUS-583404901
...
25
LIGHT ASM.HUSQVARNA.LH LH HUS-586723601
...
30
BOLT SHOULDER_HEX HD_1/4-20_3/ HUS-581329702
