Husqvarna ST 230 Snow Blower

Model: ST 230

Back To Assemblies

Save Part Not Listed?
product name

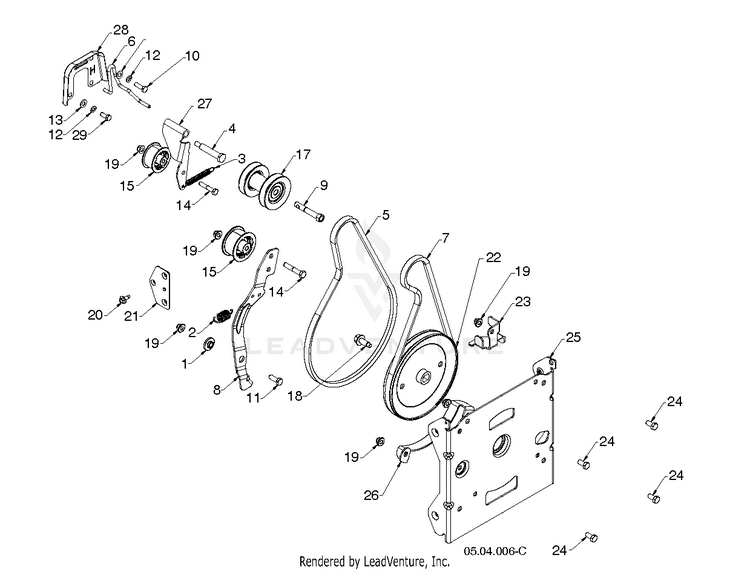

CHASSIS, ENGINE & PULLEYS 3

...
...
25
NEEDS DESCRIPTION HUS-581592503
...
29
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
9
BOLTS For 97052880100 HUS-598758701
...
23
GUIDE.LOWER.AUGER.BELT.479 HUS-587587202
...
21
BRACKET NUT BLACK ZINC PLATE HUS-590044602
...
3
SPRING RETURN IDLER ARM HUS-580753001
...
12
WASHER SPRING LOCK WASHER WITH HUS-596238801
...
4
BOLT 5/16-24X2.25 HEX HEAD SHO HUS-581413801
...
18
SCREW HEXAGON HEAD FLANGE 3/8- HUS-595517901
...
24
Screws HUS-596031601
...
6
Belt Keepers HUS-598644401
...
19
NUT HEXAGON FLANGE 5/16-18 ST HUS-594944401
...
22
PULLEYS HUS-536862701
...
13
WASHER 11/32 X 11/16 X 14 GA T HUS-596204101
...
20
HEX.WASHER.HEAD 1/4-20 X .65 HUS-585517801
...
7
HIGH CRANK IMPELLER BELT HUS-501818202
...
1
BUSHING.BRAKE.ARM HUS-587343701
...
2
SPRING RETURN, IDLER ARM, IMPE HUS-587031201
...
17
Engines HUS-589262203
...
26
BRACKET.BELT.KEEPER.LOWER.BLAC HUS-581632002
...
28
Gutter HUS-598712002
...
11
BOLT HEXAGON BOLT 5/16-18 X 7/ HUS-596322201
...
14
BOLT, HEX 5/16-18X1-3/4 HUS-874760528
...
5
BELT 3L 39.68; POLY CORD HUS-582640702
...
27
ARM DRIVE IDLER CLEAR ZINC PLA HUS-593192502
...
15
PULLEYIDLER.2.0.W/SPACER.CZ HUS-581141402
...
9
BOLT.ENGINE.PULLEY HUS-582388401
...
10
SCREW HUS-874610516
...
8
ARM.IDLER.AUTO-PH.676 HUS-580831106
...
25
NEEDS DESCRIPTION For 97052880100 HUS-581592503
